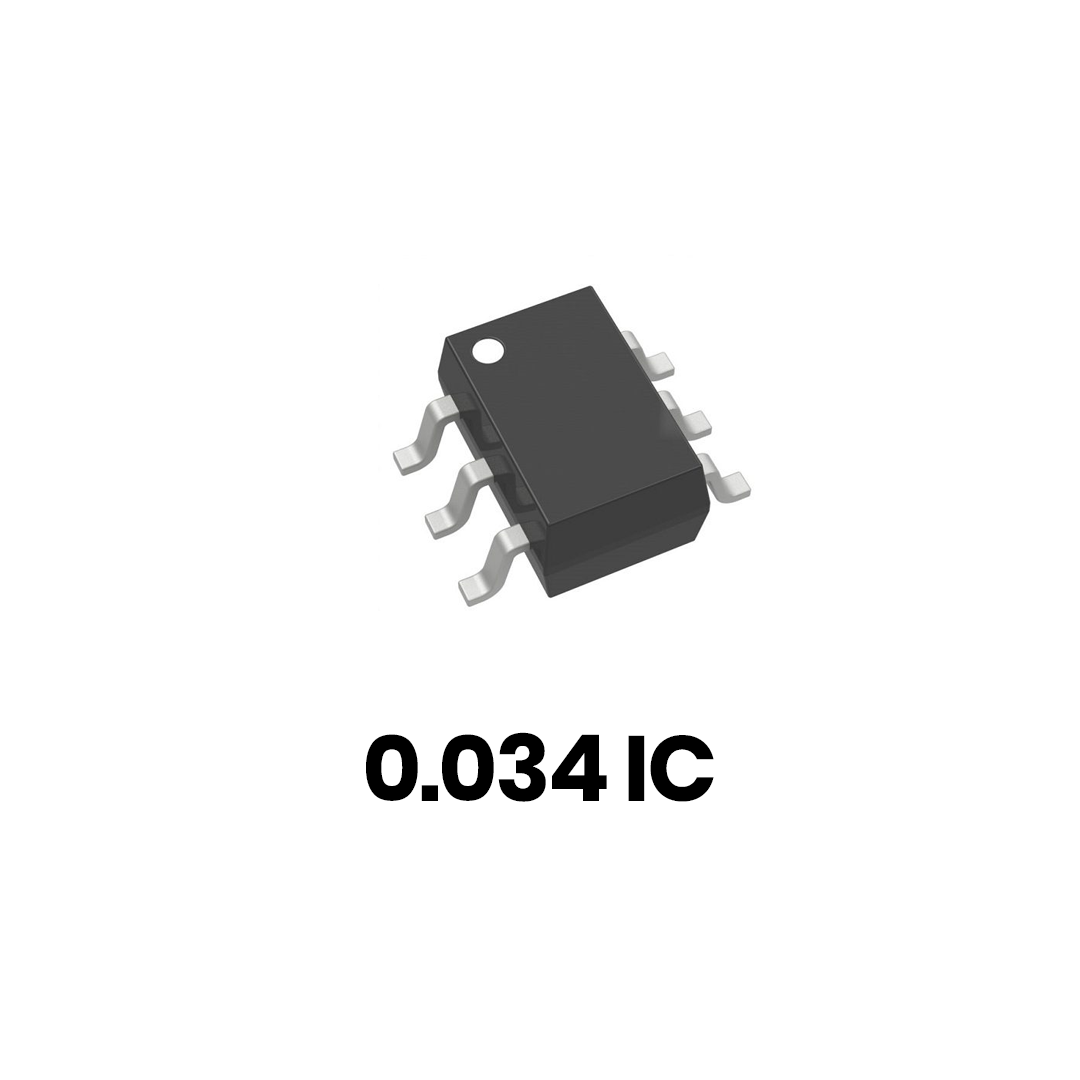

0.034 Mobile Phone IC
Compact Design for Advanced Functionality
The 0.034 Mobile Phone IC is designed to deliver robust performance in a compact size, enabling seamless integration into mobile devices. This small yet powerful component serves as an essential part of modern mobile phone circuits, ensuring optimized functionality and reliability. 0.034 Mobile Phone IC
High Efficiency and Reliability
Engineered with precision, this Mobile Phone IC enhances device performance by managing power effectively while maintaining consistent operational stability. Its advanced design supports high efficiency, making it a trusted choice for modern technology.
Enhance Your Mobile Design
Perfectly suited for compact and lightweight device designs, the 0.034 Mobile Phone IC provides exceptional support for faster processing and energy conservation. Whether you’re developing advanced smartphones or improving existing designs, this IC ensures smooth performance, extending the life of your devices.
In the context of mobile phone repair and electronics, 0.034 is a specific technical code commonly referring to a Power Management Integrated Circuit (PMIC) or a secondary regulator chip used in various smartphone models, notably within the Samsung and iPhone ecosystems.
While “0.034” is often a shorthand used by technicians for a specific part number (like the S2MPB02 or similar power ICs), the following table and breakdown provide the comprehensive specifications for this class of high-efficiency mobile power ICs.
0.034 Mobile Phone IC Specifications
The following specifications reflect the standard operating parameters for a mobile power management IC of this series.
Technical Specification Table
| Feature/Parameter | Description / Rating |
| Component Category | Power Management Integrated Circuit (PMIC) |
| Typical Part Reference | S2MPB02 / 0.034 Series |
| Input Voltage ($V_{IN}$) | $2.5\text{V}$ to $5.5\text{V}$ (Supports Li-ion Battery range) |
| Output Channels | 4 to 8 Buck Regulators / LDOs |
| Efficiency | Up to $95\%$ Peak Efficiency |
| Switching Frequency | $2\text{ MHz}$ to $4\text{ MHz}$ (High frequency for small inductors) |
| Operating Temperature | $-40\text{°C}$ to $+85\text{°C}$ |
| Package Type | WLCSP (Wafer Level Chip Scale Package) |
| Ball Count | Typically $20$ to $36$ balls (depending on specific model) |
| Communication Interface | $I^2C$ (Inter-Integrated Circuit) Serial Interface |
| Protection Features | OVP, OTP, SCP, UVLO |
Detailed Functional Overview
1. Power Distribution and Efficiency
The primary role of the 0.034 IC is to take the raw voltage from the mobile battery (which fluctuates as it drains) and convert it into precise, stable voltages required by the phone’s sub-systems.
-
Buck Converters: These step down the voltage for high-drain components like the Application Processor (AP) or RAM. 0.034 Mobile Phone IC
-
LDOs (Low Drop-Out Regulators): These provide “clean” power to sensitive components like the camera sensor or audio circuits where noise must be minimized.
2. Thermal Management
Modern mobile ICs are designed with a Thermal Shutdown threshold. If the device performs heavy tasks like 4K video recording or high-end gaming, the 0.034 IC monitors its own temperature. If it exceeds approximately 140°C, it will automatically throttle power or shut down to prevent permanent damage to the motherboard. 0.034 Mobile Phone IC
3. I2C Control and Flexibility
The IC is “smart.” Through the $I^2C$ bus, the phone’s main processor can tell the 0.034 IC to change output voltages on the fly. This is known as Dynamic Voltage Scaling (DVS), which is critical for saving battery life when the phone is in standby mode. 0.034 Mobile Phone IC
Common Applications and Symptoms of Failure
This IC is a “heart” component. Because it manages the flow of energy, it is often the first point of failure during electrical surges or liquid damage.
Common Use Cases:
-
Display Power: Regulating power for AMOLED or LCD backlights.
-
Charging Logic: Acting as a secondary controller for fast-charging protocols.
-
CPU/GPU Rails: Providing the high-current “burst” power needed for processing.
Symptoms of a Faulty 0.034 IC:
-
Dead Phone: The device refuses to power on despite a charged battery.
-
Short Circuit: The motherboard shows a low resistance to ground (often detected with a DC Power Supply).
-
Overheating: The area near the IC becomes extremely hot immediately after connecting a battery.
-
No Image/No Backlight: If the IC is specifically assigned to the display rail.
Installation and Repair Note
Replacing a 0.034 IC requires Micro-Soldering expertise. Since these are usually WLCSP packages, they are “ball-grid” style components without visible pins.
-
Removal: Requires a hot air station set to approx. 330°C – 350°C.
-
Reballing: Technicians must use a specific stencil and solder paste to recreate the tiny contact points underneath the chip.
-
Orientation: The “dot” on the corner of the IC must align perfectly with the marking on the PCB (Pin 1) to avoid a short circuit.
