114640 Mobile Phone IC
Efficient Performance for Your Mobile Device

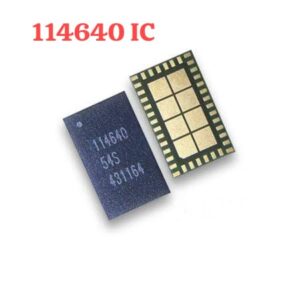

The 114640 Mobile Phone IC is designed to deliver exceptional efficiency and reliability for modern smartphones. Built for optimized performance, it ensures stable operation, even under demanding usage conditions. 114640 Mobile Phone IC
Advanced Features to Enhance Usability
This IC brings advanced technology to the forefront, offering enhanced processing capabilities, low power consumption, and robust compatibility with various mobile platforms. It’s the ideal choice for manufacturers seeking to integrate high-performing components into their devices. 114640 Mobile Phone IC
Compact Design with Reliable Quality
Engineered with a compact form factor, the 114640 Mobile Phone IC is perfect for space-constrained designs. Its durable construction ensures longevity, making it a trusted solution for today’s high-tech mobile devices. 114640 Mobile Phone IC
The 114640 IC is a specialized semiconductor component widely used in the mobile repair industry, specifically as a Power Amplifier (PA) or Network IC. It is most commonly found in Samsung Galaxy models (such as the A10, J4 Plus, J6 Plus, and S10 series) and is responsible for managing signal strength and transmission for cellular networks. 114640 Mobile Phone IC
Below are the comprehensive specifications and details for the 114640 IC.
114640 IC Technical Specifications
| Feature | Specification Details |
| Model Number | 114640 |
| Primary Function | Power Amplifier (PA) / RF Transceiver Support |
| Common Application | Mobile Network Signal Management (4G/LTE) |
| Package Type | BGA (Ball Grid Array) |
| Pin Count | 49 Pins (Back-side connectors) |
| Supply Voltage Range | $1.0\text{V}$ to $6.0\text{V}$ |
| Dissipation Power | $0.6\text{W}$ |
| Operating Temperature | $0^\circ\text{C}$ to $310^\circ\text{C}$ (Peak processing temp) |
| Compatibility | Samsung A10, A10S, A20, J4+, J6+, S10 Plus |
| Material Quality | High-grade silicon with precision-aligned solder balls |
| Weight | Approximately 8g to 10g (component level) |
Core Roles and Functions
The 114640 IC plays a critical role in the “Network Section” of a mobile device’s PCB (Printed Circuit Board). Its responsibilities include:
-
Signal Amplification: It boosts low-power radio frequency signals so they can be transmitted via the phone’s antenna to reach distant cellular towers.
-
Network Stability: It helps maintain a consistent 4G/LTE connection. When this IC fails, the phone often displays “No Service,” “Searching,” or very weak signal bars.
-
Power Efficiency: Modern PA ICs like the 114640 are designed to minimize power consumption during signal transmission to preserve battery life.
Common Failure Symptoms
Technicians usually target the 114640 IC for replacement when a device exhibits the following issues:
-
No Service / Emergency Calls Only: The device cannot register on a network even with a valid SIM card.
-
Weak Signal: The phone only gets signal when very close to a cell tower.
-
Radio Frequency Heat: Excessive overheating near the top or middle section of the motherboard during calls or data usage.
-
Network Related Battery Drain: The phone consumes battery rapidly while trying to “hunt” for a signal.
Installation and Repair Guidelines
Replacing a BGA-style chip like the 114640 requires professional-grade tools and steady hands.
Required Tools
-
SMD Rework Station: For precise heat application.
-
BGA Reballing Stencil: Specifically for the 114640 or a universal Samsung stencil.
-
High-Quality Solder Paste: Usually $183^\circ\text{C}$ or $138^\circ\text{C}$ leaded/lead-free paste.
-
Flux: To ensure smooth solder ball melting and prevent bridging.
Key Steps
-
Diagnosis: Confirm the network issue is hardware-related (check IMEI and Baseband version in settings first).
-
Removal: Apply heat (approx. $330^\circ\text{C}$ to $350^\circ\text{C}$) to the chip until the solder liquifies, then lift with tweezers.
-
Cleaning: Use a soldering iron and desoldering wick to clean the pads on the PCB.
-
Reballing/Placement: If using a new IC, ensure the “Dot” (Pin 1 indicator) matches the marking on the board.
-
Soldering: Apply heat in a circular motion until the IC “settles” into place via surface tension.
Note: This IC is sensitive to static discharge (ESD). Always use an antistatic mat and wrist strap when handling internal mobile components.
Compatibility List
While primarily associated with Samsung, this IC is a staple in various mid-range architectures:
-
Samsung Galaxy A Series: A10 (A105F), A10s, A20, A20s.
-
Samsung Galaxy J Series: J4 Plus (J415), J6 Plus (J610).
-
Samsung Galaxy S Series: S10 Plus (specific regional variants).
