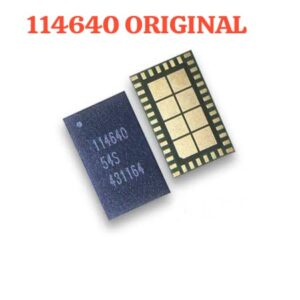

114640 ORIGINAL Mobile Phone IC
Exceptional Quality for Optimal Performance
The 114640 ORIGINAL Mobile Phone IC is designed to ensure outstanding reliability and functionality for your mobile devices. Built with precision engineering and high-quality materials, it provides unmatched performance, making it the ideal choice for repair or manufacturing needs. 114640 ORIGINAL Mobile Phone IC
Engineered for Compatibility
This IC is specifically tailored to integrate seamlessly with a variety of mobile phone models. Its versatile design ensures smooth installation and optimal performance across a wide range of devices, making it a go-to solution for professionals and DIY enthusiasts alike. 114640 ORIGINAL Mobile Phone IC
Durable and Dependable
The 114640 ORIGINAL Mobile Phone IC is crafted to withstand the demands of everyday use. Its robust construction and dependable functionality make it a trusted component to keep your mobile phone running efficiently, whether for replacement or upgrade purposes. 114640 ORIGINAL Mobile Phone IC
The 114640 IC is a critical integrated circuit primarily used as a Power Amplifier (PA) / RF IC in various Samsung smartphones. It is a key component in the device’s radio frequency (RF) front-end, responsible for amplifying signals to ensure stable cellular connectivity, including 2G, 3G, and 4G LTE bands. 114640 ORIGINAL Mobile Phone IC
Below is the comprehensive technical specification and application data for the original 114640 IC. 114640 ORIGINAL Mobile Phone IC
Technical Specifications Table
| Feature | Detailed Specification |
| Part Number | 114640 |
| Component Type | RF Power Amplifier / Network IC |
| Primary Function | Signal Amplification and RF Front-End Management |
| Package Type | BGA (Ball Grid Array) |
| Pin Count | 49 Pins (Back side connector configuration) |
| Supply Voltage ($V_{cc}$) | 1.0V to 6.0V (Standard operating range) |
| Power Dissipation | Approximately 0.6W |
| Operating Temperature | 0°C to 85°C (Commercial Grade) |
| Storage Temperature | -40°C to 125°C |
| Compatibility | Samsung A-Series, J-Series, and S-Series (e.g., A10, S10+) |
| Material | High-grade silicon with durable BGA solder balls |
| Weight | ~0.01 kg (Individual chip weight) |
Core Functionality and Architecture
The 114640 IC operates within the RF section of the mobile motherboard. Its primary role is to take the low-power RF signal from the transceiver and boost its power level so that it can be transmitted through the antenna to a distant cell tower.
Key Performance Areas:
-
Network Stability: It directly impacts the “signal bars” shown on the device. A faulty 114640 IC often results in “No Service,” “Emergency Calls Only,” or very weak signal reception.
-
Power Efficiency: Modern PA ICs like the 114640 are designed to be energy-efficient, drawing power only when active to preserve battery life while maintaining high-speed data throughput.
-
Multi-Band Support: It is engineered to handle multiple frequency bands, making it versatile across different regional variants of Samsung devices.
Device Compatibility List
While primarily associated with the Samsung Galaxy A10 (A105F), this IC is found in several other models due to its reliable performance:
-
Samsung Galaxy A Series: A10, A10s, A20, A20s
-
Samsung Galaxy J Series: J4 Plus (J415), J6 Plus (J610)
-
Samsung Galaxy S Series: S10, S10 Plus (used in specific RF configurations)
Troubleshooting and Repair Indicators
When the 114640 IC fails, the mobile phone will typically exhibit specific hardware symptoms. If you are a technician, look for the following:
1. Hardware Symptoms
-
No Network: The phone shows a “circle with a line” or “No Service” even with a valid SIM card.
-
High Battery Drain: A short-circuited 114640 IC can cause the phone to heat up significantly near the RF section and drain the battery rapidly.
-
Network Search Loop: The device stays in “Searching…” mode indefinitely.
2. Installation Requirements
Warning: Replacing the 114640 IC requires advanced SMD (Surface Mount Device) soldering skills and professional equipment such as a hot air rework station and high-quality flux.
-
Reballing: Ensure the BGA pads on the PCB are cleaned thoroughly before placing the new IC.
-
Heat Management: Use a nozzle size that matches the IC dimensions to avoid overheating surrounding components like the CPU or EMMC.
-
Alignment: Proper orientation is vital; the “dot” or “index mark” on the corner of the IC must match the marking on the motherboard.
Comparison with Similar RF ICs
| IC Model | Primary Use Case | Complexity |
| 114640 | Samsung Mid-range PA | High (49-pin BGA) |
| 77592-21 | Low-cost 4G PA | Moderate |
| SKY 77518 | High-frequency LTE | High |
