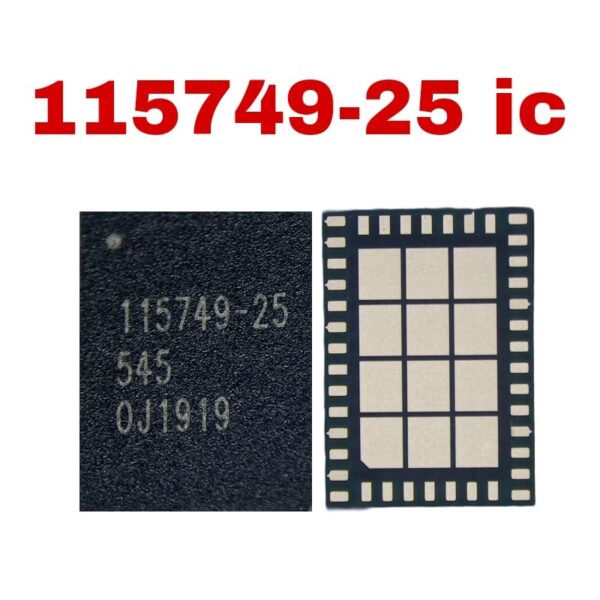

The 115749-25 (often referred to by its full part number SKY115749-25) is a specialized Power Amplifier (PA) Integrated Circuit primarily manufactured by Skyworks Solutions. It is a critical component in the Radio Frequency (RF) front-end section of various Samsung Galaxy and other Android smartphones, responsible for amplifying weak signals before they are transmitted via the device’s antenna. 115749-25 Mobile Phone IC
Below are the full technical specifications and details for the 115749-25 IC. 115749-25 Mobile Phone IC
115749-25 Technical Specifications
| Parameter | Details / Specification |
| Part Number | 115749-25 / SKY115749-25 |
| Component Type | Power Amplifier (PA) / RF IC |
| Main Function | RF Signal Amplification & Power Regulation |
| Package Type | SMD (Surface Mount Device) / BGA (Ball Grid Array) |
| Pin Count | 54 Pins |
| Compatible Brands | Samsung, Xiaomi, Oppo, Vivo |
| Power Consumption | ~0.5W (Typical Operating Dissipation) |
| Operating Voltage | 3.4V to 4.2V (VCC / VBATT) |
| Communication Mode | 4G LTE, 3G WCDMA, 2G GSM Support |
| Material Composition | Heat-resistant high-grade Silicon/Ceramic |
| Weight | ~0.01g to 0.03g (Chip only) |
| Standard Color | Black |
Functional Overview
In the architecture of a modern mobile device, the 115749-25 sits between the Transceiver (which generates the low-power RF signal) and the Antenna. Because mobile signals must travel long distances to reach a cell tower, they require significant “boosting.“
The 115749-25 performs the following roles:
-
Signal Strengthening: Amplifies low-power RF signals to a level suitable for transmission. 115749-25 Mobile Phone IC
-
Efficiency Management: Modern “SkyBlue” or similar technology in these chips ensures that power is used efficiently to prevent excessive battery drain. 115749-25 Mobile Phone IC
-
Thermal Control: Engineered to handle the heat generated during high-speed data transmission (like streaming or 4G LTE uploads). 115749-25 Mobile Phone IC
Device Compatibility List
This IC is widely used in several mid-range and “Pro” series Samsung devices. It is often the “go-to” replacement for network-related motherboard repairs.
Primary Compatible Models:
-
Samsung C-Series: C5000 (C5 Pro), C7000 (C7 Pro), C900F (C9 Pro)
-
Samsung A-Series: A320F (Galaxy A3 2017)
-
Samsung J-Series: J250F (Galaxy J2 Pro/Prime), J210
-
Other Devices: Various Xiaomi and Oppo models using similar RF front-end architectures.
Common Symptoms of a Faulty 115749-25 IC
If this IC fails or becomes “leaky” (drawing excess current), the smartphone will exhibit specific hardware-level issues:
-
Network Failure: “No Service,” “Emergency Calls Only,” or very weak signal bars even in high-coverage areas.
-
Overheating: The device gets noticeably hot near the top section of the motherboard during calls or data usage.
-
Battery Drain: Rapid battery depletion due to a short circuit within the IC’s power rails.
-
Boot Issues: In some cases, a shorted 115749-25 can pull down the main power line (VBATT), causing the phone to be stuck on the logo or fail to turn on entirely.
Repair & Handling Guidelines
Replacing the 115749-25 requires professional SMD Rework skills. Because it is a 54-pin BGA chip, precise alignment is necessary.
-
Temperature Profile: When using a hot air station, technicians typically use a temperature range of 330°C to 360°C with low airflow to avoid shifting neighboring small components.
-
Reballing: If the IC is being reused, a specialized stencil is required to re-apply the solder balls.
-
Orientation: Always note the “Dot” marker on the top of the IC to ensure correct pin-1 orientation on the PCB.
Note: This IC is sensitive to Electrostatic Discharge (ESD). Ensure you are using an anti-static mat and wrist strap when performing motherboard-level repairs.
