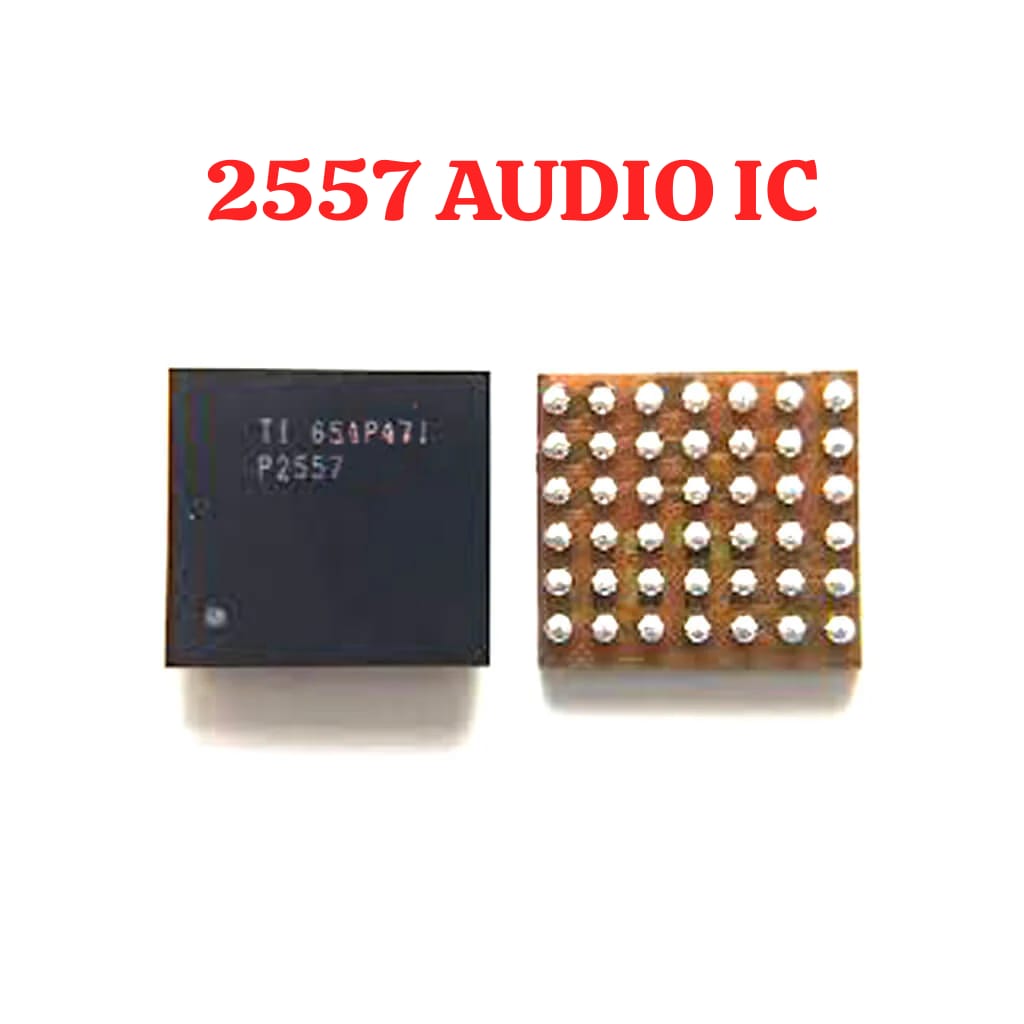

2557 AUDIO Mobile Phone IC
Unlock Superior Audio Performance
The 2557 AUDIO Mobile Phone IC is engineered to deliver unparalleled sound quality, making it an optimal choice for next-generation mobile devices. Designed to boost your device’s audio output, it ensures a clear, rich, and immersive auditory experience. 2557 AUDIO Mobile Phone IC
Precision and Efficiency
This IC stands out for its precision-engineered design, tailored to maintain energy efficiency without compromising on performance. It optimizes the audio processing of mobile phones, enabling seamless communication and exceptional media playback quality. 2557 AUDIO Mobile Phone IC
Compact, Reliable, and Compatible
The 2557 AUDIO IC is compact, lightweight, and compatible with a wide range of mobile phone models. Its reliability under varying operational conditions makes it a preferred choice for manufacturers striving for excellence in mobile audio technology. 2557 AUDIO Mobile Phone IC
The TAS2557 (often labeled simply as 2557) is a high-performance, digital-input Class-D audio amplifier developed by Texas Instruments. Specifically designed for mobile phones and tablets, it is a “Smart Amp” that combines a digital-to-analog converter (DAC), a speaker protection algorithm, and a Class-H boost converter into a single chip. 2557 AUDIO Mobile Phone IC
In the mobile repair industry, you will often find this IC in popular devices from Xiaomi (Redmi Note 5 Pro, Mi 8 SE), Nokia, and Samsung. 2557 AUDIO Mobile Phone IC
Technical Specifications Table
The following table outlines the comprehensive technical parameters for the TAS2557 Audio IC.
| Feature / Parameter | Specification Details |
| Manufacturer | Texas Instruments (TI) |
| IC Type | Class-D Mono Audio Amplifier (Smart Amp) |
| Output Power (4 $\Omega$ load) | 5.7 W at 1% THD+N / 6.9 W at 10% THD+N |
| Output Power (8 $\Omega$ load) | 3.8 W at 1% THD+N / 4.5 W at 10% THD+N |
| Boost Converter | Integrated Class-H (Multi-level tracking) |
| Supply Voltage (VBAT) | 2.9 V to 5.5 V |
| Digital I/O Voltage | 1.62 V to 3.6 V |
| Analog/Digital Core | 1.65 V to 1.95 V |
| Signal-to-Noise Ratio (SNR) | 111 dB |
| Total Harmonic Distortion (THD+N) | 0.0035% (at 1 kHz) |
| Output Noise (ICN) | 15.9 $\mu$V (Ultra-low noise) |
| Sample Rates | 8 kHz to 96 kHz |
| Digital Interfaces | I2S, TDM, Left-Justified (LJF), Right-Justified (RJF) |
| Control Interface | I2C or SPI |
| Package Type | 42-ball DSBGA (0.5 mm pitch) |
| Dimensions | ~3.47 mm $\times$ 3.23 mm |
Key Functional Features
1. Integrated DSP & SmartAmp Technology
The standout feature of the 2557 IC is its integrated dual-core Digital Signal Processor (DSP). It runs TI’s proprietary SmartAmp algorithms, which monitor the speaker’s temperature and cone excursion in real-time. This allows the phone to push the speaker to its absolute physical limit for maximum loudness without the risk of blowing the coil or damaging the diaphragm. 2557 AUDIO Mobile Phone IC
2. Class-H Boost Converter
Unlike standard amplifiers that use a fixed voltage, the TAS2557 uses a Class-H Boost. It dynamically adjusts the internal voltage rail based on the audio signal level. 2557 AUDIO Mobile Phone IC
-
Low Volume: The boost is bypassed to save battery. 2557 AUDIO Mobile Phone IC
-
High Volume: The boost kicks in to provide the high voltage necessary for loud, clear peaks. 2557 AUDIO Mobile Phone IC
3. Battery Guard & Efficiency
The IC includes a “Battery Guard” feature. When the phone’s battery voltage drops (low battery state), the IC automatically reduces the gain to prevent the system from shutting down due to sudden current spikes, effectively preventing brownouts. 2557 AUDIO Mobile Phone IC
4. Post-Filter Feedback (PFFB)
The 2557 utilizes Post-Filter Feedback technology. This helps the chip maintain a flat frequency response and excellent THD+N performance even when used with low-cost inductors or ferrite beads, which is critical for the tight PCB layouts found in modern smartphones.
Pin Configuration & Integration
The IC is housed in a 42-ball Wafer Chip Scale Package (WCSP/DSBGA).
-
Audio Input: Typically received via the I2S (Inter-IC Sound) bus from the Application Processor (CPU).
-
Speaker Sense: The IC has dedicated VSENSE and ISENSE pins that connect back to the speaker terminals to measure current and voltage for the DSP protection loop.
-
Thermal Protection: It contains an internal sensor to shut down the chip if it exceeds $150^\circ C$ to prevent permanent board damage.
Common Symptoms of a Faulty 2557 IC
In mobile repair scenarios, if this IC fails, the device may exhibit:
-
No Sound: Total loss of audio from the loudspeaker (while headphones/earpiece might still work).
-
Distorted Audio: Sound is crackly or very quiet even at max volume.
-
Short Circuit: The phone may fail to power on or exhibit high “leakage” current if the IC is shorted internally.
-
Overheating: The area around the audio section on the logic board becomes hot to the touch immediately after booting.
Note: When replacing this IC, ensure you use a high-quality stencil for reballing, as the 0.5 mm pitch is quite fine. It is also highly recommended to use a temperature-controlled SMD rework station to avoid delaminating the thin mobile PCB.
