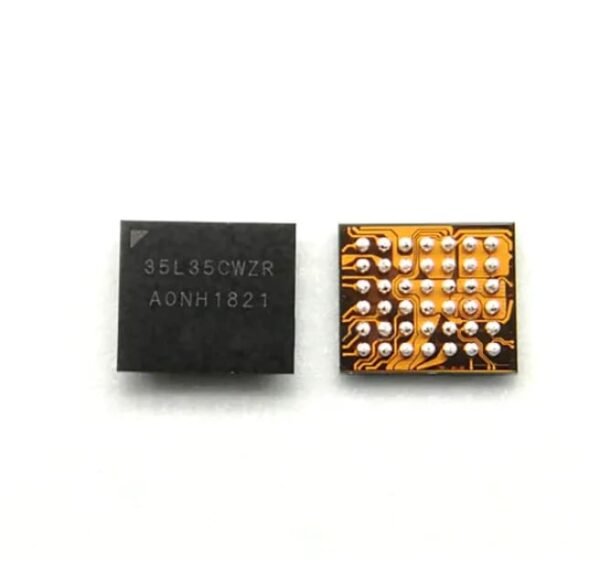

35L35 Mobile Phone IC
Overview of 35L35 Mobile Phone IC
The 35L35 Mobile Phone IC is a cutting-edge component designed to optimize performance and reliability in mobile devices. Engineered for seamless integration, it ensures consistent efficiency across various applications. 35L35 Mobile Phone IC
Key Features and Benefits
With advanced technology, the 35L35 IC delivers exceptional power management, minimizing energy consumption while prolonging battery life. Additionally, its compact design allows for easy implementation in ultra-slim devices, making it perfect for modern smartphones. 35L35 Mobile Phone IC
Why Choose the 35L35 Mobile Phone IC?
Whether you’re enhancing current device functionality or designing a new product, the 35L35 Mobile Phone IC provides unparalleled performance. From enhanced data processing capabilities to superior thermal resistance, this IC ensures your device remains efficient and reliable under varying conditions. 35L35 Mobile Phone IC
The 35L35 (full model number CS35L35) is a specialized Smart Boosted Audio Amplifier IC manufactured by Cirrus Logic. It is commonly found in modern smartphones to drive high-fidelity internal speakers, offering loud and clear audio while protecting the speaker hardware from damage. 35L35 Mobile Phone IC
Unlike standard power ICs, the 35L35 is a “Mixed-Signal” chip, meaning it handles both digital audio data and the high-voltage analog power needed to vibrate the speaker diaphragm. 35L35 Mobile Phone IC
35L35 Full Specifications Table
| Feature Category | Technical Specification Detail |
| Manufacturer | Cirrus Logic |
| Full Part Number | CS35L35-CWZR |
| IC Function | Boosted Mono Class-D Audio Amplifier |
| Architecture | Hybrid Class-D with Integrated Boost Converter |
| Package Type | 42-Ball WLCSP (Wafer Level Chip Scale Package) |
| Dimensions | $2.71\text{ mm} \times 3.18\text{ mm}$ (Ultra-compact) |
| Supply Voltage ($V_{\text{BATT}}$) | $2.5\text{V}$ to $5.5\text{V}$ |
| Boost Voltage Output | Up to $11\text{V}$ (Internal DC-DC Boost) |
| Output Power | $5.3\text{ W}$ into $8\text{ \Omega}$ (Peak) |
| Audio Interface | $\text{I}^2\text{S}$, TDM, and $\text{I}^2\text{C}$ for Control |
| Sample Rates | $8\text{ kHz}$ to $192\text{ kHz}$ (High-Res Audio support) |
| Idle Noise Floor | $9\text{ \mu V}$ (Extremely low background hiss) |
| Protection Suites | Thermal, Short-Circuit, and Speaker Excursion Protection |
| Efficiency | $>85\%$ (Maximizes battery life during playback) |
Core Functionality and Features
1. Integrated DC-DC Boost Converter
A standard mobile battery provides about $3.7\text{V}$ to $4.2\text{V}$. However, to produce loud, punchy sound, a speaker often requires higher voltage. The 35L35 has an internal Boost Converter that steps up the battery voltage to as high as $11\text{V}$. This allows the speaker to produce high volume levels that would otherwise be impossible with a standard $4\text{V}$ supply.
2. Smart Speaker Protection
One of the most critical roles of the 35L35 is “Speaker Sensing.” The IC monitors the current and voltage flowing through the speaker in real-time. If the speaker gets too hot or the diaphragm moves too far (excursion), the IC instantly adjusts the audio signal to prevent the speaker from “blowing” or cracking.
3. High-Resolution Audio Support
The chip supports sample rates up to $192\text{ kHz}$, making it compatible with lossless audio formats. It ensures that even at high volumes, the Total Harmonic Distortion (THD) remains extremely low, maintaining the “Premium” sound quality expected in modern flagship and mid-range devices.
Hardware Repair & Troubleshooting
In mobile repairing, the 35L35 is a frequent culprit for audio-related issues. Because it is a “Boosted” IC, it handles higher voltages than many other chips, making it susceptible to failure if the phone is exposed to water or low-quality chargers.
Common Symptoms of a Faulty 35L35:
-
No Sound: The speaker is fine, but there is zero audio output even after a software reset.
-
Distorted Audio: Sound comes out “crackly” or fuzzy even at low volumes.
-
Phone Restarting on Loud Volume: A failing 35L35 may draw excessive current when trying to boost voltage, causing the battery to “trip” and the phone to restart.
-
High Battery Drain: If the IC has an internal leakage (short), it may stay “Active” even when no music is playing, causing the phone to heat up near the speaker area.
Technician Tips:
-
Compatibility: While the 35L35 looks similar to the CS35L41 or PM6150L, they are not interchangeable. Always match the exact part number.
-
Soldering: Because it is a WLCSP (ball-type) package, it requires precise reballing. Excess heat during installation can damage the sensitive internal boost coils.
-
Check V-Boost: When troubleshooting, a technician should check the “Boost Capacitor” near the IC. If you don’t see approximately $8\text{V}$ to $11\text{V}$ on this capacitor during music playback, the IC is likely dead.
