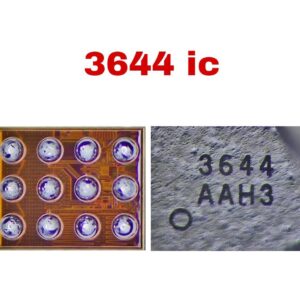

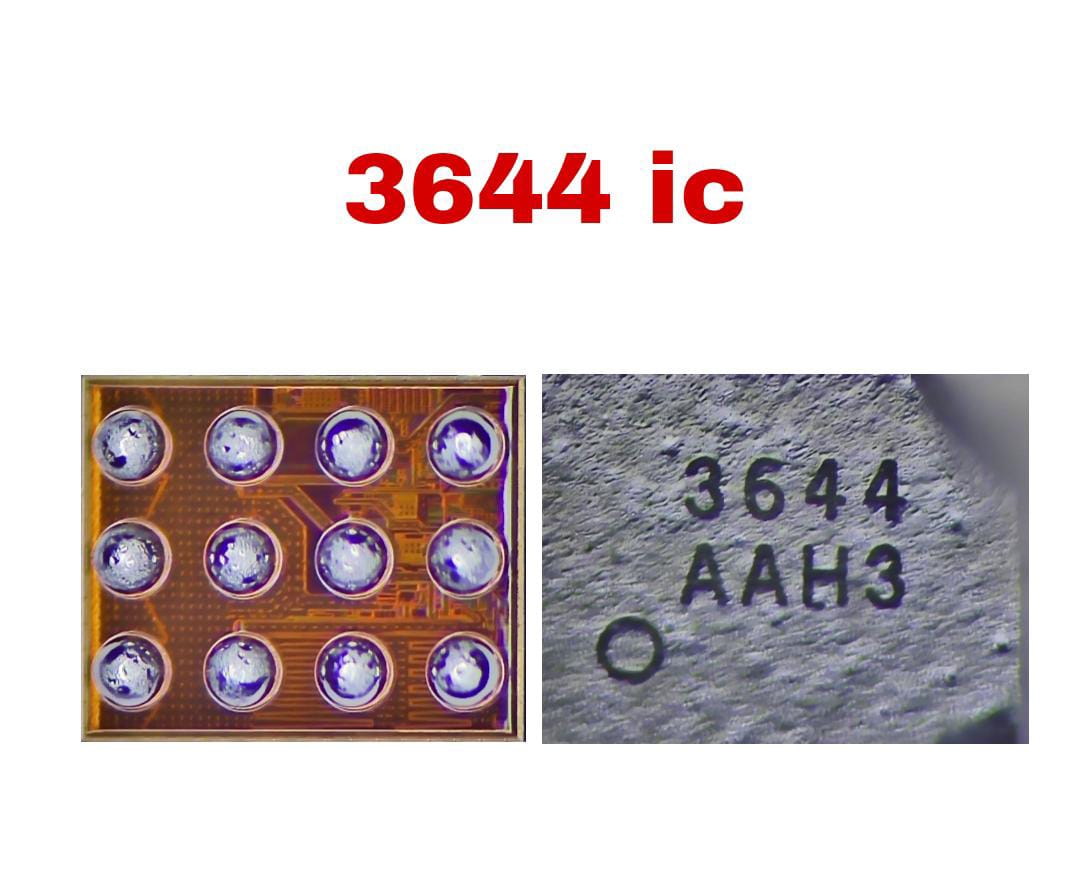

3644 Mobile Phone IC
Overview of the 3644 Mobile Phone IC
The 3644 Mobile Phone IC is a high-performance integrated circuit designed to enhance your mobile device’s efficiency and functionality. Engineered for reliability, this IC delivers exceptional results in terms of energy optimization and processing power, making it a perfect fit for modern smartphones. 3644 Mobile Phone IC
Key Features and Performance
This IC stands out with its compact design, robust durability, and advanced electronic capabilities. It accommodates seamless operations, ensuring a smooth experience for applications ranging from simple functions to complex data processing tasks. Perfectly suited for high-demand environments, it supports fast processing without compromising battery life. 3644 Mobile Phone IC
Why Choose the 3644 Mobile Phone IC?
Whether you’re manufacturing advanced smartphones or upgrading an existing mobile system, the 3644 Mobile Phone IC is tailored to meet cutting-edge industry standards. Its cost-effectiveness, reliable performance, and compatibility with a range of mobile devices make it a top-notch choice in the market. 3644 Mobile Phone IC
In the world of mobile phone repair and electronics engineering, the designation “3644” primarily refers to a critical Power Management IC (PMIC) used for Display Backlight Control and Camera Flash functions. 3644 Mobile Phone IC
Because multiple manufacturers (like Texas Instruments and ams AG) produce versions of this IC for smartphones like the Samsung Galaxy series and various Xiaomi/Vivo models, specifications can vary slightly. Below is a comprehensive breakdown of the technical specifications for the most common “3644” variants (LM3644 and AS3644) found in modern mobile devices. 3644 Mobile Phone IC
3644 Mobile Phone IC: Full Specifications
The following table outlines the core electrical and physical characteristics of the 3644 series LED Driver ICs typically found on smartphone logic boards.
| Feature | Specification Details |
| Primary Function | Dual-Channel LED Flash / Display Backlight Driver |
| Input Voltage Range ($V_{IN}$) | $2.5\text{V}$ to $5.5\text{V}$ (Compatible with Li-Ion batteries) |
| Output Type | Step-Up (Boost) Regulator |
| Switching Frequency | Selectable $2\text{MHz}$ or $4\text{MHz}$ |
| Max Flash Current | Up to $1.5\text{A}$ (Total) or $750\text{mA}$ per channel |
| Torch Mode Current | Programmable (typically up to $200\text{mA}$ per channel) |
| Control Interface | $I^2C$ Compatible ($400\text{kHz}$ to $3.4\text{MHz}$ High-Speed) |
| Efficiency | Up to $93\%$ (Adaptive Boost Control) |
| Dimming Levels | 128-level Flash / 128-level Torch current control |
| Safety Features | OVP, OCP, Thermal Shutdown, TX-Masking |
| Operating Temperature | $-40^{\circ}\text{C}$ to $+85^{\circ}\text{C}$ |
| Package Type | 12-pin DSBGA (Die Size Ball Grid Array) |
| Physical Dimensions | Approx. $1.5\text{mm} \times 2.0\text{mm}$ |
Technical Overview & Functionality
The 3644 IC is a “Boost” regulator, meaning it takes the standard battery voltage (which fluctuates between $3.4\text{V}$ and $4.2\text{V}$) and “boosts” it to the higher voltage required to drive high-intensity LEDs.
1. Dual-Channel Versatility
Most modern smartphones use a dual-tone flash (warm and cool LEDs) to achieve natural skin tones in photos. The 3644 IC is designed to manage these two channels independently via the $I^2C$ bus, allowing the phone’s processor to adjust the brightness of each LED precisely.
2. $I^2C$ Communication
Unlike simpler ICs that use a single “Enable” pin, the 3644 is “smart.” It communicates with the mobile CPU to:
-
Set specific current limits for different modes (Flash vs. Torch).
-
Report “Fault” conditions if an LED is shorted or the chip gets too hot.
-
Synchronize the flash with the camera shutter timing.
3. Integrated Protection
Mobile repair technicians often replace this IC when a phone suffers from “No Backlight” or “Flash Not Working.” The 3644 includes built-in safeguards:
-
Over-Voltage Protection (OVP): Prevents the chip from blowing up if the LED circuit is broken.
-
Thermal Management: If the flash stays on too long and the chip exceeds roughly $150^{\circ}\text{C}$, it automatically shuts down to prevent PCB damage.
Application in Mobile Repair
In the context of hardware repair (specifically for brands like Samsung, Xiaomi, and Vivo), the 3644 is a “common failure point” after water damage.
Note for Technicians: When replacing this IC, ensure you use a BGA Reballing Stencil specifically for the 12-pin DSBGA pattern. Because the chip is exceptionally small ($1.5\text{mm} \times 2.0\text{mm}$), excessive heat during soldering can damage nearby components like the CPU or Power IC.
Common Symptoms of a Faulty 3644 IC:
-
Phone turns on, but the screen is pitch black (Backlight failure).
-
Flashlight/Torch toggle is greyed out in the Android/iOS settings.
-
Camera app crashes specifically when the flash is triggered.
-
Excessive battery drain or heat near the camera module.
