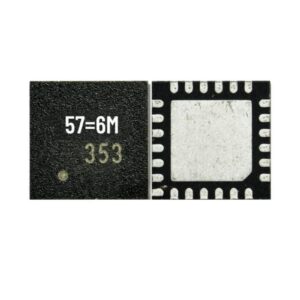

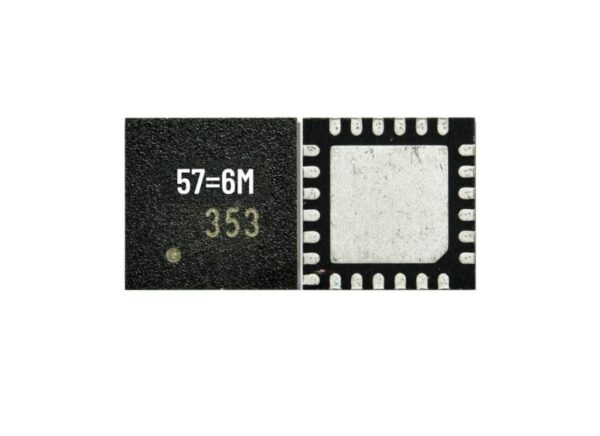

57-6M Original Mobile Phone IC
Enhance Mobile Performance with Original 57-6M IC
Looking for a reliable replacement component for your mobile device? The 57-6M Original Mobile Phone IC is precisely designed to improve functionality and ensure seamless device operation. Built with high-quality materials, it’s the perfect solution for restoring your phone’s peak performance. 57-6M Original Mobile Phone IC
Precision Engineering for Optimal Compatibility
Designed to meet industry standards, the 57-6M IC offers flawless compatibility with a wide range of mobile phone models. Its cutting-edge design guarantees stable and efficient performance while maintaining energy efficiency—ideal for your tech repair needs. 57-6M Original Mobile Phone IC
Trusted Quality You Can Rely On
With the 57-6M Original Mobile Phone IC, you get a product built to last. Whether you’re a repair professional or a DIY enthusiast, this IC ensures durability and reliability, making it a top choice in mobile electronics. 57-6M Original Mobile Phone IC
The 57-6M (often labeled as 57=6M) is a highly specialized Integrated Circuit (IC) used in the power management and charging sections of a wide range of Android and iOS smartphones. It is commonly identified by technicians as a “Secondary Charging IC” or “USB Management IC.”
Unlike the PM6150, which is a main system PMIC, the 57-6M is a dedicated controller that manages the handshake between the charger and the battery to ensure safe and efficient energy flow. 57-6M Original Mobile Phone IC
57-6M IC Full Specifications Table
| Category | Detailed Specification |
| Common Label | 57=6M / 57=4J / 57=7B (Compatible Variants) |
| Component Type | USB Charging Control IC / OVP (Over Voltage Protection) |
| Compatibility | Universal (Android & iPhone models) |
| Function | Battery Charging, USB Detection, and Voltage Regulation |
| Package Type | WLCSP (Wafer Level Chip Scale Package) |
| Pins / Balls | Typically 9 to 12 Small Ball Grid Array (BGA) |
| Input Voltage (V-Bus) | $4.5\text{V}$ to $6.5\text{V}$ (Supports Standard & Fast Charging) |
| Output Voltage (V-Bat) | Regulated $3.7\text{V}$ to $4.2\text{V}$ |
| Protection Features | Thermal Shutdown, Over-Current (OCP), Over-Voltage (OVP) |
| Switching Frequency | High-frequency operation for low heat dissipation |
| Common Application | Charging Logic for Samsung, Xiaomi, Oppo, and iPhone |
| Interchangeability | Compatible with 57=4J and 57=7B series |
Comprehensive Analysis of 57-6M IC
1. Role in Power Management
The 57-6M is often found near the charging port or the main PMIC on the motherboard. Its primary job is to act as a Gatekeeper. When you plug in a USB cable, this IC detects the incoming voltage. If the voltage is too high (e.g., from a faulty charger), the 57-6M “sacrifices” its internal circuitry to prevent the high voltage from reaching the CPU or the Battery, effectively saving the phone from a total burnout. 57-6M Original Mobile Phone IC
2. Fast Charging Support
Modern smartphones use complex protocols like Quick Charge (QC) or Power Delivery (PD). The 57-6M IC contains logic circuits that communicate with the charging adapter. It negotiates the maximum current the battery can safely handle at that moment. This prevents the “Slow Charging” notification often seen when this IC starts to degrade. 57-6M Original Mobile Phone IC
3. Thermal Intelligence
Heat is the biggest enemy of mobile ICs. The original 57-6M features an internal thermal sensor. If the IC detects that the charging area is exceeding $80^\circ\text{C}$ to $90^\circ\text{C}$, it automatically throttles the current. This is why some phones charge slowly when they are hot; the 57-6M is actively protecting the hardware. 57-6M Original Mobile Phone IC
Technician’s Guide: Troubleshooting 57-6M Issues
A. Common Symptoms of Failure
-
Fake Charging: The phone shows the “lightning bolt” icon, but the battery percentage never increases.
-
No Charging: The device does not respond to the charger at all, even after replacing the charging strip.
-
USB Not Recognized: When connected to a PC, the phone only charges but doesn’t allow data transfer.
-
Short Circuit: The phone gets extremely hot near the charging section as soon as it is plugged in.
B. Testing Methodology
To verify the health of a 57-6M IC:
-
V-Bus Check: Using a multimeter, check for $5\text{V}$ at the input capacitor near the IC.
-
V-Bat Check: Check the output pin for a voltage between $3.7\text{V}$ and $4.2\text{V}$. If input is present but output is zero, the IC is dead.
-
Thermal Check: Use a thermal camera or “Rosin” method to see if the IC heats up instantly upon plugging in the charger.
C. Replacement Tips
Since the 57-6M is a BGA chip, it requires precise soldering.
-
Compatibility: As noted in the table, 57=4J and 57=7B are often interchangeable with 57=6M. Always check the schematic of the specific phone model to confirm.
-
Original vs. Copy: Original ICs have better “Thermal Pads” on the bottom. Low-quality copies may cause the phone to restart or charge extremely slowly.
