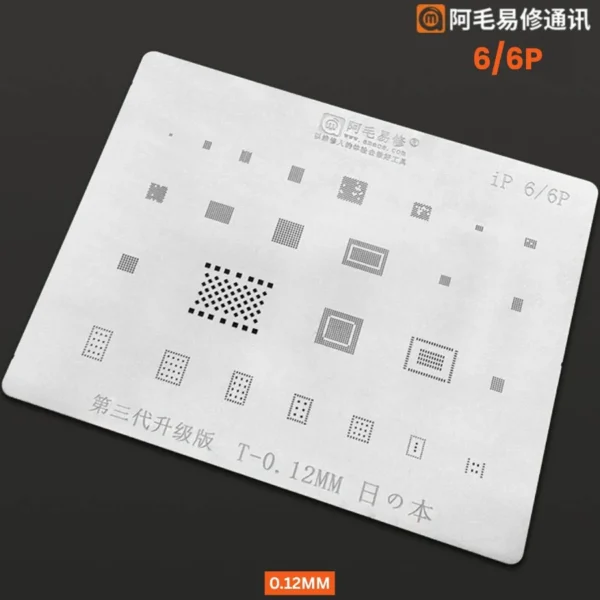

6/ 6PLUS BGA STENCIL-Original
Effortless Precision with the 6/6PLUS BGA Stencil
Designed for professionals, the 6/ 6PLUS BGA STENCIL-Original is an essential tool for mobile component repair. Crafted for accuracy, this stencil ensures seamless compatibility with 6 and 6PLUS models, delivering reliable results every time. 6/ 6PLUS BGA STENCIL-Original
Durable and High-Quality Construction
Made from premium-grade materials, the 6/6PLUS BGA Stencil guarantees durability and longevity. Whether you’re working on delicate soldering or intricate repairs, its sturdy build will withstand consistent use for optimal performance. 6/ 6PLUS BGA STENCIL-Original
Your Go-To Solution for Mobile Repairs
Get the job done right with this meticulous stencil. From phone enthusiasts to repair experts, the 6/6PLUS BGA Stencil simplifies even complex repairs, saving time and enhancing efficiency in every project. Elevate your toolkit today! 6/ 6PLUS BGA STENCIL-Original
When it comes to micro-soldering and IC reballing for the iPhone 6 and 6 Plus, precision is everything. The move toward higher density BGA (Ball Grid Array) chips during this era required stencils that could handle high heat without warping and provide perfect alignment for the Apple A8 processor and its supporting chips. 6/ 6PLUS BGA STENCIL-Original
Below is a comprehensive breakdown of the specifications for an Original Full BGA Stencil set designed specifically for the iPhone 6 and 6 Plus series. 6/ 6PLUS BGA STENCIL-Original
🛠️ Technical Specifications Table
This table covers the physical and material properties required for professional-grade reballing.
| Feature | Specification | Details |
| Compatible Models | iPhone 6 / 6 Plus | Optimized for A8 chipsets and peripheral ICs. |
| Material | High-Grade Japanese Steel | High-carbon stainless steel for “non-deformation” under heat. |
| Thickness | $0.12\text{mm}$ to $0.15\text{mm}$ | Precise thickness to ensure uniform solder paste volume. |
| Hole Type | Square or Rounded Square | Laser-cut to prevent solder paste from sticking in the corners. |
| Alignment | CNC Laser Perforation | Ensures 1:1 ratio with the PCB contact pads. |
| Heat Resistance | Up to $450$°C | Designed to withstand direct heat from hot air stations. |
| Coating | Anti-Static / Non-Magnetic | Reduces electrostatic discharge (ESD) risks to sensitive logic boards. |
🔍 Detailed Chip Coverage
A “Full” stencil set isn’t just for the CPU. It includes specific cutouts for the various subsystems that commonly fail or require “IC swaps.”
1. The A8 Processor & RAM
The centerpiece of the iPhone 6/6 Plus logic board. These stencils use a “trench” or “stepped” design to accommodate the CPU and the overlaid RAM chip (PoP – Package on Package).
-
Pitch: Highly dense, requiring precise solder paste application.
-
Reballing Method: Often requires a “two-step” process for the CPU and RAM.
2. Power Management ICs (PMIC)
The main PMIC is a common point of failure for “no power” issues.
-
Design: Large BGA grid with varying ball sizes.
-
Stencil Benefit: Accurate thickness ensures no bridges (shorts) occur under the chip during reflow.
3. Touch ICs (The “Touch Disease” Fix)
The iPhone 6 Plus was notorious for “Touch Disease,” caused by the Mason and Cumulus chips losing contact with the board.
-
Precision: These stencils feature specific grids for the M1 and Cumulus ICs.
-
Success Rate: Using an original full stencil is the only way to ensure the $0.2\text{mm}$ – $0.25\text{mm}$ solder balls are perfectly uniform.
4. Baseband & RF Logic
Critical for signal and Wi-Fi.
-
Chips included: Baseband CPU (Qualcomm), Wi-Fi/Bluetooth module, and Power Amplifiers.
-
Features: Often grouped on one side of the stencil for rapid multi-chip reballing.
💡 Key Features of “Original” Quality Stencils
Not all stencils are created equal. Here is what differentiates a professional-grade “Original Full” stencil from cheap knock-offs:
-
Laser-Cut Tapered Holes: The holes are slightly wider at the bottom than the top. This allows the stencil to be lifted off the dried solder paste without “pulling” the paste out of the holes.
-
No-Warping Technology: High-quality steel expands and contracts evenly. Cheaper stencils “pop” or “bubble” when heated, which causes solder balls to bridge together.
-
Accurate Stencil Markings: Clear, laser-etched labels identifying which cutout belongs to which IC (e.g., “6P-CPU”, “6-NAND”).
🚀 Pro-Tips for Using 6/6 Plus Stencils
-
Cleaning: Always clean the stencil with $99\%$ Isopropyl Alcohol (IPA) before and after use. Even a microscopic speck of old flux can cause a misalignment. 6/ 6PLUS BGA STENCIL-Original
-
Paste Consistency: Use “Middle Temperature” solder paste ($183$°C) for most repairs. Ensure the paste is slightly dry; if it’s too runny, it will seep under the stencil. 6/ 6PLUS BGA STENCIL-Original
-
Pressure: Use anti-static tweezers to hold the stencil flat against the chip. Even a $0.05\text{mm}$ gap can lead to a failed reball. 6/ 6PLUS BGA STENCIL-Original
