77048 (77048B) Mobile Phone IC
Upgrade Your Devices with the 77048B Mobile Phone IC
The 77048 (77048B) Mobile Phone IC is a cutting-edge solution designed to elevate your device’s efficiency, speed, and reliability. Whether you’re developing new mobile technology or upgrading existing devices, this IC ensures seamless performance and compatibility. 77048 (77048B) Mobile Phone IC
Advanced Technology for Seamless Integration
Built with precision and innovation, the 77048B offers unmatched processing capabilities. It is designed to seamlessly integrate into various mobile phone architectures, ensuring optimal functionality and enhancing overall user experience. 77048 (77048B) Mobile Phone IC
Efficient and Reliable Performance
With its high-end design and robust materials, the 77048B provides exceptional durability and consistent performance, making it a perfect choice for developers and manufacturers looking to deliver long-lasting and high-performing devices. 77048 (77048B) Mobile Phone IC

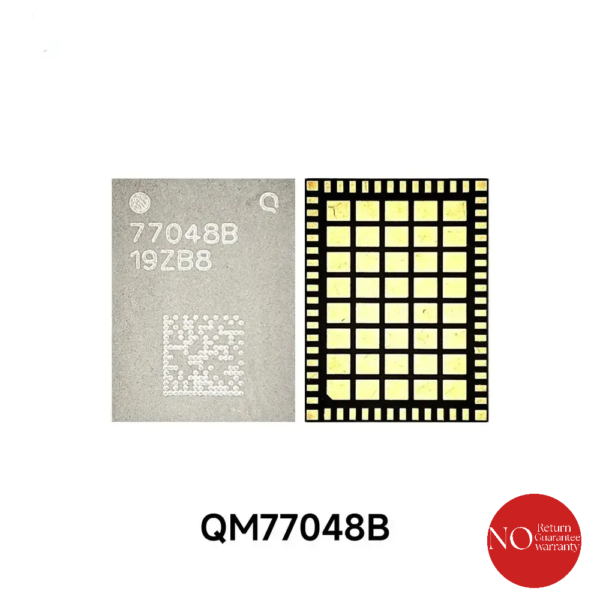

The 77048B (also known as the QM77048B) is a high-performance Multi-Mode, High-Efficiency Power Amplifier Module (PAM) designed for modern 4G/5G mobile devices. It belongs to the RF Front-End (RFFE) family and is primarily used in smartphones (notably Huawei Reno series and various Qualcomm-based devices) to manage mid-band and high-band signal transmissions.
Below is the full technical breakdown of the 77048B IC. 77048 (77048B) Mobile Phone IC
77048B Core Specifications
| Feature | Specification Details |
| Manufacturer | Qorvo (often listed under 77048 series) |
| Primary Function | Mid/High-Band L-PAMiD (LNA + Power Amplifier + Duplexer) |
| Connectivity Standards | 5G NR, 4G LTE, 3G WCDMA, CDMA2000 |
| Frequency Range | 1452 MHz to 2690 MHz (Mid & High Bands) |
| Package Type | 62-Pin Leadless SMT Package (LGA) |
| Package Dimensions | 6.5 mm x 8.6 mm x 0.8 mm (Max) |
| Control Interface | MIPI RFFE V3.0 Digital Control |
| Efficiency Tech | Supports Average Power Tracking (APT) & Envelope Tracking (ET) |
Electrical Characteristics
The 77048B is designed to operate under strict power constraints to maximize battery life while maintaining signal integrity.
| Parameter | Minimum | Typical | Maximum | Unit |
| Supply Voltage (VBATT) | +3.0 | 3.8 | +4.8 | V |
| Supply Voltage (VCC) | +0.5 | 3.8 | +4.8 | V |
| LNA Supply Voltage | +1.15 | 1.2 | +1.3 | V |
| Digital I/O Voltage (VIO) | +1.65 | 1.8 | +1.95 | V |
| Operating Temperature | -30 | +25 | +85 | °C |
| Storage Temperature | -55 | — | +150 | °C |
| RF Input Power | — | — | +10 | dBm |
Key Features & Functional Roles
1. Integrated Architecture
The 77048B is not just a simple amplifier; it is an L-PAMiD module. This means it integrates the LNA (Low Noise Amplifier) for reception, the Power Amplifier for transmission, and Duplexers for frequency separation.
-
Integrated Filtering: Built-in multiplex filters reduce the need for external surface acoustic wave (SAW) filters on the PCB.
-
Antenna Switching: Features distribution switches to handle multi-band coverage for both Transmit (Tx) and Receive (Rx) functions.
2. Supported Network Bands
The module is optimized for global 4G/5G roaming. It specifically supports:
-
5G NR Bands: n1, n3, n7, n38, n40, n41, n66. 77048 (77048B) Mobile Phone IC
-
4G LTE Bands: B1, B3, B7, B34, B38, B39, B40, B41. 77048 (77048B) Mobile Phone IC
-
Carrier Aggregation (CA): Supports Intra-band and Inter-band DL CA (e.g., B39+B41, B1+B3+B40).
3. Signal Performance
-
Linear Output Power: Capable of delivering up to 25–29 dBm in High Power Mode (HPM) for 5G NR signals. 77048 (77048B) Mobile Phone IC
-
Noise Figure: Extremely low noise at the LNA output (approx. -164 dBm/Hz for GPS/ISM bands) ensures clear reception even in weak signal areas. 77048 (77048B) Mobile Phone IC
-
Harmonic Suppression: Integrated active biasing and filtering suppress switching transients, preventing audio “pops” or clicks in nearby audio circuits.
Application and Common Issues
The 77048B is a “go-to” component for mobile repair technicians, particularly for the Huawei Reno5 and Xiaomi series. Because it sits in the RF front-end, it is highly susceptible to damage from:
-
Water Damage: Moisture near the RF shield often shorts the VBATT line on this IC.
-
Signal Loss: If the phone shows “No Service” or weak 4G/5G signals while Wi-Fi works, this IC is a primary suspect. 77048 (77048B) Mobile Phone IC
-
Audio Interference: In some designs (like the Reno5), the 77048B is positioned near the audio codec/amplifier. A failure here can occasionally cause silent speakers or distorted sound due to power rail instability. 77048 (77048B) Mobile Phone IC
Installation Guidelines for Technicians
-
Sensitivity: This is a Level 3 Moisture Sensitive Device (MSL3). If the IC has been out of the packaging for more than 168 hours, it should be baked at 125°C before soldering to prevent “popcorning.”
-
Soldering Profile: Use a lead-free profile with a peak temperature of 260°C. Due to the 62-pin density, a high-quality flux (NC-559 or similar) is required to ensure no bridging occurs under the LGA package. 77048 (77048B) Mobile Phone IC
-
Verification: After installation, check the VIO (1.8V) and VBATT (3.8V) lines for shorts. A successful install will show a typical idle current draw of approximately 6–8 mA.
