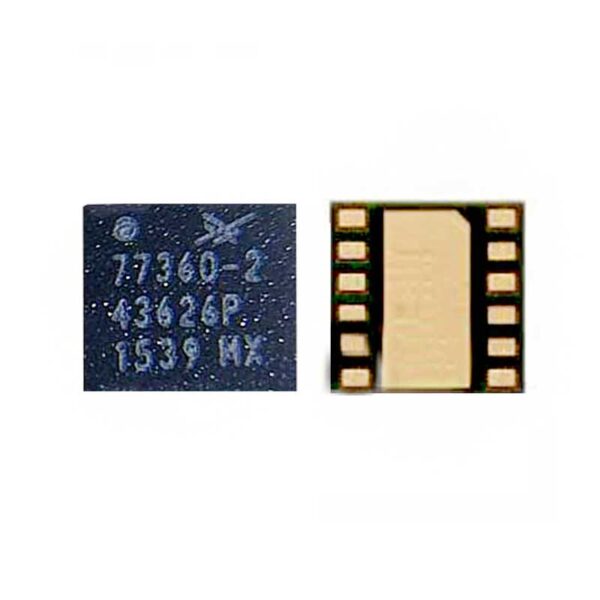

77360-2 Mobile Phone IC
Dependable Performance for Advanced Devices
The 77360-2 Mobile Phone IC is crafted to elevate your mobile device’s functionality, ensuring unparalleled reliability and efficiency. Designed for robust performance, this IC is perfect for manufacturers and repair professionals who demand dependable components for seamless device operation. 77360-2 Mobile Phone IC
Engineered for Compatibility
Compatible with a wide range of mobile phone models, the 77360-2 IC ensures ease of integration into your devices without compromising performance. Its adaptable design supports advanced mobile technologies, making it a versatile choice for various mobile development needs. 77360-2 Mobile Phone IC
Optimized for Durability and Efficiency
Built with premium materials and advanced engineering, the 77360-2 Mobile Phone IC provides long-lasting durability and exceptional energy efficiency. Maximize your device’s lifespan and performance with this state-of-the-art component, designed to meet the highest industry standards. 77360-2 Mobile Phone IC
The 77360-2 (often cataloged under the full manufacturer part number SKY77360-2) is a high-performance Power Amplifier Module (PAM) developed by Skyworks Solutions. Primarily utilized in mobile handsets, it is a critical component for radio frequency (RF) front-end systems, responsible for amplifying signals before they are transmitted via the device’s antenna. 77360-2 Mobile Phone IC
This specific IC belongs to the SkyOne® Ultra family, designed to support multiple cellular standards including 2G (GSM/EDGE), 3G (TD-SCDMA), and 4G (TDD-LTE) across various frequency bands. 77360-2 Mobile Phone IC
Technical Specifications Table
The following table outlines the core electrical and physical parameters of the 77360-2 IC.
| Feature | Specification |
| Manufacturer | Skyworks Solutions, Inc. |
| Part Number | SKY77360-2 (or SKY77360-21) |
| Device Type | RF Power Amplifier Module (PAM) |
| Supported Generations | 2G (GSM/GPRS/EDGE), 3G (TD-SCDMA), 4G (LTE) |
| Frequency Bands | Quad-band GSM (850/900/1800/1900), B34, B39 |
| Modulation Support | GMSK, EDGE (8PSK), TD-SCDMA, TDD-LTE |
| Control Interface | MIPI® RFFE (RF Front-End Control) |
| Input/Output Impedance | Internally matched to 50 $\Omega$ |
| Supply Voltage ($V_{CC}$) | Typically 3.0V to 4.5V (Battery Compatible) |
| Package Type | 12-pad Multi-Chip Module (MCM) |
| Package Dimensions | 3.0 mm x 3.0 mm x 0.72 mm (Max) |
| Technology | InGaP HBT (Heterojunction Bipolar Transistor) |
| Compliance | RoHS Compliant / Lead-free |
Key Features and Functional Blocks
The 77360-2 is not just a simple transistor; it is a highly integrated module. Understanding its internal architecture helps in diagnosing signal-related issues during mobile repairs.
1. Multi-Band Support
The IC is divided into two primary internal amplifier blocks:
-
Low Band: Optimized for GSM850 and EGSM900 frequencies.
-
High Band: Optimized for DCS1800, PCS1900, and TD-SCDMA/LTE Bands 34 and 39.
2. MIPI® RFFE Control
Unlike older “analog” power amps that used discrete voltage lines for power control, the 77360-2 uses a digital MIPI (Mobile Industry Processor Interface). This allows the phone’s baseband processor to precisely command the IC to change power modes, bands, or bias settings over a high-speed serial bus, significantly reducing the number of physical pins required.
3. Integrated Matching Circuitry
One of the major advantages of this IC is that the input and output matching circuits are built into the module. This ensures a standard 50 $\Omega$ interface, which simplifies the PCB design and reduces the need for external inductors and capacitors.
4. Advanced Protection
-
Over-Voltage Protection (OVP): Protects the IC from spikes in battery voltage.
-
Current Clamp: Limits the maximum current to prevent thermal runaway.
-
Low Standby Leakage: Ensures the IC consumes minimal power when the phone is not transmitting, extending battery life.
Application and Usage
The 77360-2 is commonly found in mid-range and budget smartphones from brands like Huawei (e.g., P9, P10 series), Xiaomi, and Samsung.
Common Failure Symptoms
If this IC fails, the mobile device will typically exhibit the following symptoms:
-
No Service / Searching: The device cannot lock onto a cellular network because the signal is too weak to reach the tower.
-
Signal Dropping: The phone shows signal bars but calls fail or data disconnects during transmission.
-
High Battery Drain: A damaged PA IC can short internally, causing the RF section to heat up and drain the battery rapidly even when the phone is idle.
-
Emergency Calls Only: The receiver might work (managed by the Transceiver IC), but the transmitter (managed by the 77360-2) cannot send the “handshake” to the network.
Note for Technicians: The 77360-2 is a BGA (Ball Grid Array) component. Replacing it requires a hot air rework station, high-quality flux, and precision tweezers. Because it is part of the RF path, ensure the shielding cans are replaced after repair to prevent electromagnetic interference (EMI).
