77363-1 Mobile Phone IC
Efficient Performance for Your Mobile Technology
The 77363-1 Mobile Phone IC is a cutting-edge solution designed to improve the functionality and performance of modern smartphones. Engineered with precision and advanced technology, this integrated circuit ensures seamless operation, delivering reliability for both everyday use and intensive tasks. Whether you’re building state-of-the-art devices or enhancing existing models, this IC is crafted to meet the dynamic demands of the mobile industry.
Compact Design and High Compatibility
This mobile phone IC is designed with a compact structure, making it easy to integrate into various smartphone architectures. Its versatility makes it compatible across a wide range of mobile devices, ensuring efficient energy consumption without compromising performance. The 77363-1 IC adapts to different configurations, guaranteeing a smooth, dependable user experience.
Unmatched Reliability and Precision
Manufactured using the latest technological advancements, the 77363-1 Mobile Phone IC promises exceptional reliability and precision. It is built to withstand rigorous usage and efficiently handle high-stress operations, all while maintaining optimal functions. Whether managing data processing, energy management, or signal transmission, this IC delivers a superior performance that aligns with modern mobile phone requirements.
Conclusion
Choose the 77363-1 Mobile Phone IC for a dependable and innovative solution tailored to enhance mobile experiences. With its efficient design, high compatibility, and reliable performance, this product is ideal for those seeking to boost mobile technology functionality. Invest in quality and performance with the 77363-1 Mobile Phone IC—a step toward smarter devices and enhanced operations.

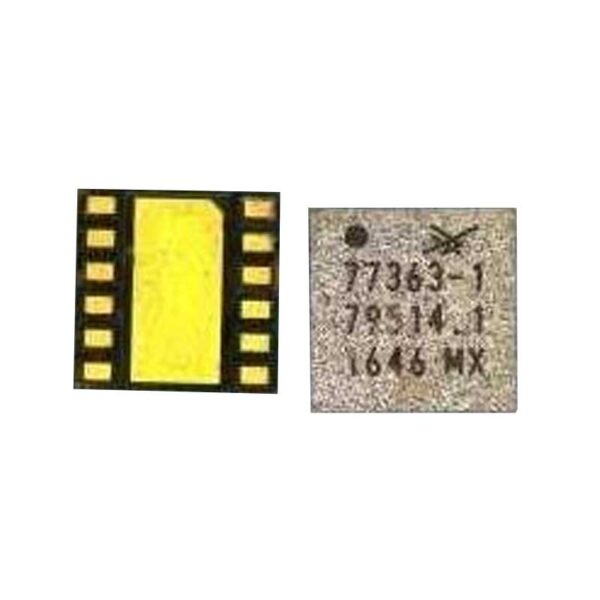

The 77363-1 (often marked as SKY77363-1) is a specialized Power Amplifier Module (PAM) that serves as a critical component in the Radio Frequency (RF) front-end of mobile devices.1 It is most famously known as the 2G Power Amplifier used in the iPhone 7 and iPhone 7 Plus, but it is also found in various Android devices that utilize similar RF architectures.2
This IC is responsible for boosting low-power signals to a level strong enough to be transmitted to a cellular base station, ensuring a stable connection for voice calls and basic data.
1. Functional Overview and Architecture
The 77363-1 is a highly integrated module designed to handle the GSM/GPRS/EDGE (2G) frequency bands. In a modern smartphone, even though we use 4G and 5G, the 2G PA remains vital as a “fallback” for voice calls in areas with poor high-speed coverage.
-
Integrated Switching: The IC often includes internal switching logic to toggle between different transmit and receive modes.
-
HBT Technology: It is built using Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) technology. This material is chosen because it is more efficient at high frequencies than standard silicon, allowing for higher power output with less battery drain.
-
13-Pin Configuration: In many of its physical iterations, it features a 13-pin or similar small-footprint layout to fit within the crowded logic boards of high-end smartphones.
2. Technical Specifications
| Feature | Details |
| Supported Modes | GSM, GPRS, EDGE (2G) |
| Primary Bands | Quad-band GSM (850, 900, 1800, 1900 MHz) |
| Interface | Controlled via MIPI RFFE or dedicated VRAMP signals |
| Input/Output | Internally matched to 50 $\Omega$ to minimize external parts |
| Compatibility | iPhone 7/7 Plus and select Qualcomm-based Android devices |
3. Key Features
-
Power Efficiency: The 77363-1 is designed for high Power Added Efficiency (PAE). This ensures that most of the battery energy goes into the signal rather than being wasted as heat.
-
Linearity: Even in 2G EDGE modes, which require more precise signal “shapes,” this IC provides high linearity to prevent data errors.
-
Compact Form Factor: Designed for high-density PCBs, it uses a Land Grid Array (LGA) or similar surface-mount technology that takes up minimal space.
4. Common Repair Symptoms
As an RF power component, the 77363-1 is a frequent point of failure during mobile repairs. Because it handles significant power, it is vulnerable to surges and physical stress. Typical symptoms include:
-
“No Service” or “Searching”: The phone can see the network (bars might appear briefly), but it cannot successfully “handshake” or register because its transmission is too weak.
-
Call Drops: The phone may lose connection immediately when a call is initiated, as the 2G PA fails to sustain the required power level.
-
Current Leakage: A short inside the 77363-1 can cause the phone to consume excess battery even when in standby mode or prevent it from turning on entirely.
5. Installation Note
Replacing this IC requires professional microsoldering.3 Technicians must be careful with the heat profile (typically 350°C–370°C) because the module is a multi-chip laminate; overheating can cause the internal layers to separate, rendering the new part useless.
