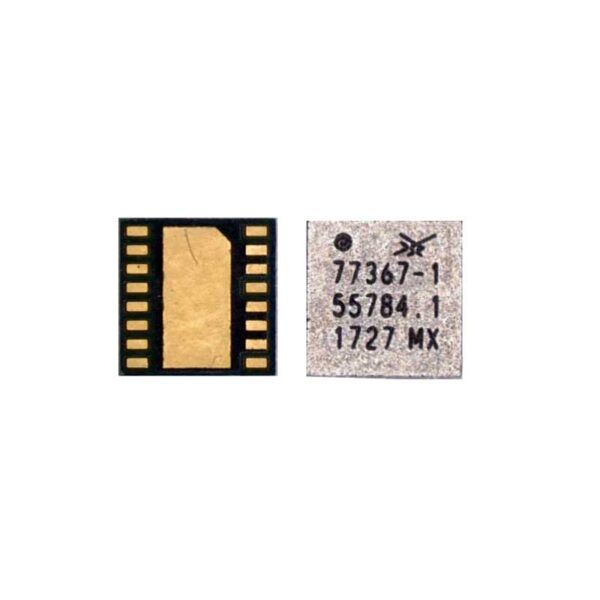

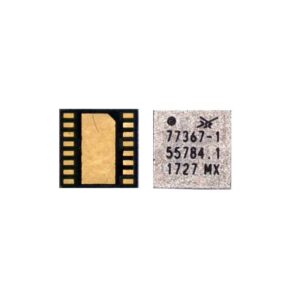

77367-1 ORIGINAL Mobile Phone IC
Experience Seamless Performance with the 77367-1 ORIGINAL Mobile Phone IC
Looking for a reliable and high-performance integrated circuit (IC) for your mobile devices? The 77367-1 ORIGINAL Mobile Phone IC is designed to meet the demands of modern electronics. This premium component ensures stable functionality, efficient operation, and compatibility with a variety of mobile phone models. Whether you’re repairing or building a device, this IC delivers exceptional results to keep your product at peak performance.
Premium Construction for Reliability
Manufactured with advanced technology, the 77367-1 ORIGINAL Mobile Phone IC stands out for its durability and consistent quality. It is crafted with precision to handle high-speed processing requirements while maintaining energy efficiency. Designed to minimize heat generation, this IC is ideal for extending the lifespan of mobile devices without compromising on power efficiency.
Enhanced Compatibility and Versatility
The 77367-1 ORIGINAL Mobile Phone IC is engineered to integrate seamlessly into a wide array of mobile phone models. Its universally compatible design ensures that whether your project involves budget-friendly smartphones or high-end models, this IC performs with excellence. The original manufacturer guarantees superior performance, making it a dependable choice for electronic enthusiasts and professionals alike.
Why Choose the 77367-1 ORIGINAL Mobile Phone IC?
Opting for this IC guarantees you access to features such as supreme processing speeds, reliability over prolonged usage, and minimized risks of electronic failures. This product is perfect for technicians, manufacturers, and hobbyists focused on maintaining high standards in their work.
Upgrade your mobile phone setup today with the 77367-1 ORIGINAL Mobile Phone IC—a component that combines quality, efficiency, and extensive compatibility for various applications.
The 77367-1 is a sophisticated Power Amplifier Module (PAM) designed for high-end and mid-range mobile devices. It is part of the modern generation of Radio Frequency (RF) front-end components that support Multimode and Multiband (MMMB) operations. Its primary role is to provide high-efficiency amplification for 4G LTE, 3G WCDMA, and 2G GSM signals, ensuring that the device can maintain a stable connection even in areas with weak cellular coverage.
1. Integrated Architecture
The 77367-1 is built using Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) technology. This material is essential for modern smartphones because it allows the chip to operate at the high frequencies required by LTE while maintaining high power efficiency.
The module is highly integrated, containing:
-
Power Amplifiers: Multiple stages of amplification for Low, Mid, and High-frequency bands.
-
Switching Matrix: An internal antenna switch that directs signals to the correct frequency path without interference.
-
Directional Couplers: These monitor the outgoing signal power and provide feedback to the phone’s processor to ensure the signal is within regulatory limits.
-
Digital Controller: A built-in CMOS logic unit that handles communication via the MIPI RFFE (Radio Frequency Front End) interface.
2. Key Specifications
The 77367-1 is characterized by its compact size and high performance:
-
Package: It typically comes in a low-profile Multi-Chip Module (MCM) package, often measuring approximately 5 x 7 mm, designed for surface-mount technology (SMT).
-
Frequency Range: It supports a wide array of LTE bands (e.g., Bands 1, 2, 3, 4, 5, 8, 20, and 28), making it a global-ready component.
-
Power Management: It is optimized for Average Power Tracking (APT) and Envelope Tracking (ET). This means the chip can dynamically adjust its power consumption based on the strength of the signal it needs to send, which significantly reduces heat and saves battery life.
-
Impedance: The input and output ports are internally matched to 50 $\Omega$, which simplifies the PCB design by reducing the need for external tuning components.
3. Role in Mobile Communication
When you place a call or use mobile data, the transceiver inside your phone generates a very weak RF signal. The 77367-1 takes this weak signal and boosts its power thousands of times. Because it supports “Multimode,” it can switch between 4G and 3G signals in microseconds, allowing for seamless handovers between different network towers.
4. Common Failures and Troubleshooting
In the world of mobile repair, the 77367-1 is often located near the antenna or the top of the motherboard. It is prone to failure due to its proximity to high-voltage lines and the heat it generates.
Common Symptoms of a Faulty 77367-1:
-
No Service: The phone shows “No Service” even though the SIM card is detected. This happens when the IC cannot amplify the signal enough to “talk” back to the tower.
-
High Current Consumption: If the IC is shorted, the phone may consume high current (e.g., 0.5A to 1.5A) immediately upon pressing the power button, or it may prevent the phone from turning on entirely.
-
Signal Dropping: The phone has a signal when outdoors but loses it completely when indoors.
5. Repair and Handling
Replacing the 77367-1 requires a professional hot air station and high-quality flux. Technicians usually set their tools to 350°C – 375°C with low airflow. Because the IC has many pads underneath, precision in alignment is critical to avoid bridging the power and ground pins, which could lead to a permanent short circuit on the motherboard.
Would you like to see a specific pin-description table or a list of co
