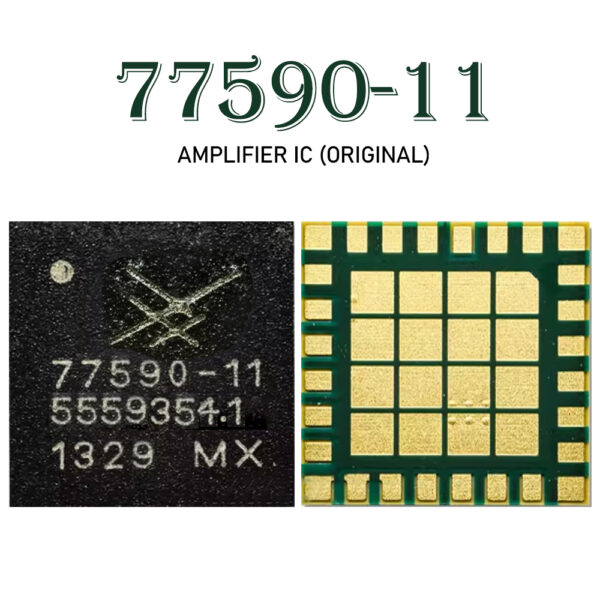

77590-11 ORIGINAL Mobile Phone IC
Exceptional Quality and Precision Engineering
The 77590-11 ORIGINAL Mobile Phone IC is designed to deliver premium performance and reliability in mobile device circuits. This integrated circuit (IC) is crafted with precision and adheres to stringent quality standards, ensuring it meets the demands of modern mobile technology.
Whether you’re a repair professional or a tech enthusiast, this IC is the ideal choice for enhancing efficiency while maintaining trusted performance in your devices.
Versatile Compatibility for Enhanced Functionality
One of the standout features of the 77590-11 ORIGINAL Mobile Phone IC is its compatibility across various mobile device models. Its adaptable design makes it suitable for a wide range of applications, from simple repairs to complex system enhancements. Optimize the functionality of your mobile technology confidently with this robust IC solution.
Pairing cutting-edge engineering with flexibility, this component is reliable whether you’re replacing defective parts or improving device performance. With the 77590-11 ORIGINAL IC, you’re choosing high-grade technology tailored to the needs of versatile circuitry.
Durability You Can Depend On
Built to last, the 77590-11 ORIGINAL Mobile Phone IC is constructed to withstand the challenges of everyday device usage. Designed for longevity, it minimizes the risk of system failure and ensures smooth operation for extended periods.
This IC promotes device stability and consistency, allowing users to confidently rely on their mobile technology for communication, application usage, and beyond. Its advanced engineering makes it a dependable solution for professionals aiming to restore or upgrade electronic systems.
Incorporating cutting-edge materials and state-of-the-art technology, the 77590-11 ORIGINAL Mobile Phone IC is your trusted choice in IC components. Whether you’re repairing, restoring, or enhancing mobile devices, this product offers the quality and functionality you need.
The 77590-11 is a high-efficiency Power Amplifier Module (PAM) specifically engineered for mobile devices.1 It serves as a critical component in the radio frequency (RF) front-end, functioning as a “Multi-Mode Multi-Band” (MMMB) solution.2 This IC is responsible for amplifying signals across various cellular standards, including 2G, 3G, and 4G LTE, ensuring that the device can maintain a stable connection with network towers even in low-signal areas.3
1. Advanced Architecture
The 77590-11 is designed as a highly integrated Multi-Chip Module (MCM).4 It is housed in a compact surface-mount package, typically measuring 5 x 7 mm, which is essential for modern, thin smartphone designs.
-
Material Science: The internal power amplifiers utilize Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) technology. This material choice is superior to standard silicon because it provides higher electron mobility, which translates to better signal gain and higher efficiency at the high frequencies required for LTE.5
-
Internal Logic: The module includes a silicon CMOS controller that manages the internal switching and biasing. This allows the chip to switch between different frequency bands (Low, Mid, and High bands) instantly.
2. Key Technical Specifications
The 77590-11 is built to meet the rigorous demands of modern global roaming. Its key specifications include:
-
MIPI RFFE Interface: It uses the MIPI Radio Frequency Front End digital serial interface. This allow the phone’s CPU to precisely control the power levels and operational modes of the IC.
-
Impedance Matching: The module features internal 50 $\Omega$ matching for both input and output ports. This simplifies the PCB layout for engineers, as it reduces the need for external tuning components like inductors and capacitors.
-
Power Management: It is optimized for Average Power Tracking (APT). This feature allows the IC to consume only the necessary amount of current required for the current signal strength, significantly reducing battery consumption.
3. Functional Capabilities
The 77590-11 is “Multi-Band,” meaning it can handle various frequency ranges used worldwide. This includes:
-
Quad-Band GSM/EDGE: Supporting 850, 900, 1800, and 1900 MHz.
- WCDMA and LTE: Supporting multiple bands (such as Bands 1, 5, 8, and others depending on the specific phone regional variant).6
By integrating these bands into one chip, it reduces the complexity of the phone’s motherboard and lowers the overall power consumption of the RF section.
4. Common Repair Scenarios
In mobile hardware repair, the 77590-11 is often identified as a primary cause for network failures. Because it is connected to the high-power lines of the phone, it is vulnerable to electrical stress.
-
Signal Loss: A faulty 77590-11 often results in a “No Service” or “Emergency Calls Only” status. While the phone might still “see” the network, it cannot “talk” back to the tower.
-
Direct Shorting: Since the IC is often connected to the VBATT or VCC_MAIN line, an internal short will cause the phone to be completely dead. Technicians often find this by checking for low resistance on the capacitors surrounding the IC.
-
Thermal Issues: If the IC is partially damaged, it may cause the device to overheat significantly in the upper section of the motherboard during data usage.
5. Installation and Microsoldering
The 77590-11 is a Land Grid Array (LGA) component. Replacing it requires a professional hot air station and high-quality flux. Technicians typically use a temperature range of 340°C to 370°C. Because it is a multi-layered module, it is important to apply heat evenly to prevent the internal layers of the IC from delaminating.
