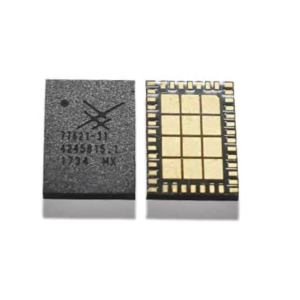

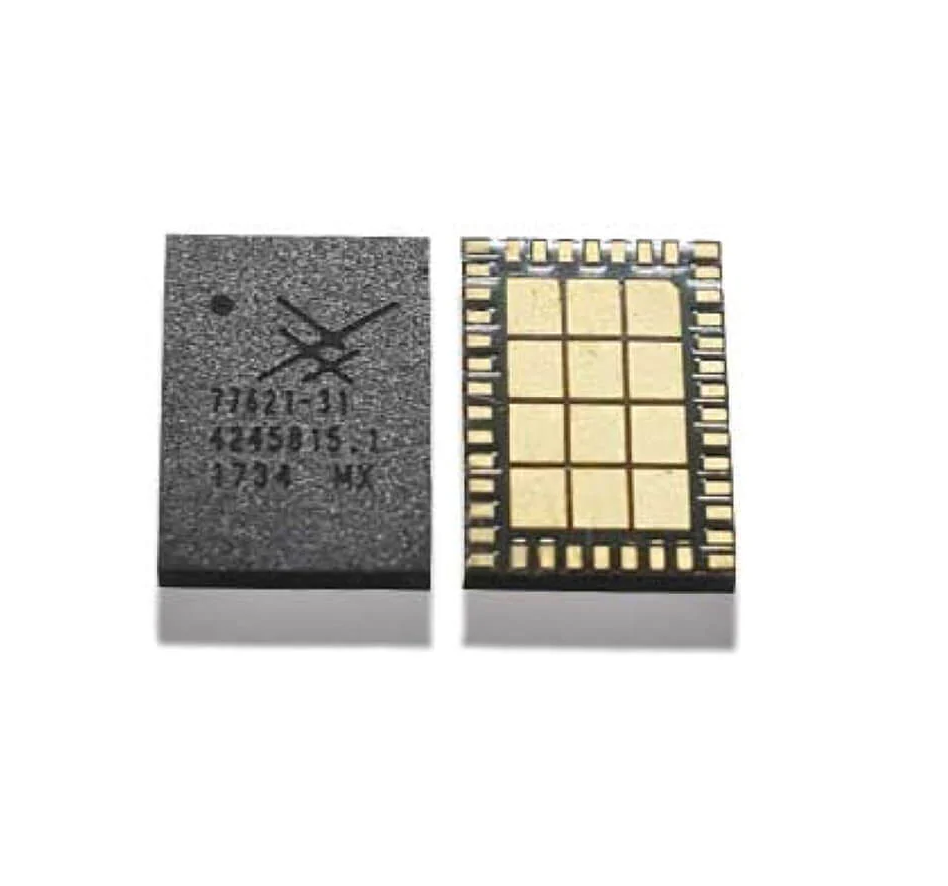

77621-31 Original Mobile Phone IC
High-Performance Mobile Phone IC for Reliable Functionality
Introducing the 77621-31 Original Mobile Phone IC, a high-quality integrated circuit designed to take your smartphone’s performance and reliability to new heights. Whether you’re repairing, upgrading, or manufacturing devices, this premium IC offers precision engineering and optimal efficiency for seamless functionality. Crafted for compatibility with a wide range of device models, the 77621-31 ensures lasting durability and an enhanced user experience.
Designed for Seamless Integration
This Original Mobile Phone IC stands out for its ability to integrate effortlessly within mobile phone architectures, ensuring smooth and responsive operations. The 77621-31 is meticulously developed to meet the demands of modern device hardware while ensuring compatibility with industry standards. Engineered for stability and superior processing capability, this IC is an excellent choice for professionals and enthusiasts alike—whether you’re in the repair industry or handling large-scale electronic production.
Unmatched Reliability and Quality
Choose the 77621-31 IC for its consistent performance, manufactured using top-grade materials and cutting-edge technology. Each unit undergoes rigorous testing to meet stringent quality control standards, guaranteeing its functionality and longevity. This Original Mobile Phone IC is optimized to handle varying operating conditions, providing stable and efficient output with minimal power consumption.
The 77621-31 Mobile Phone IC offers exceptional value to anyone seeking dependable and original components for their devices. Elevate your electronics projects with this industry-leading product suited for all levels of technical expertise, from casual users to seasoned professionals.
The 77621-31 (often branded as SKY77621-31) is a high-performance, original equipment manufacturer (OEM) Integrated Circuit (IC) produced by Skyworks Solutions.1 It is a cornerstone component in the Radio Frequency (RF) front-end section of modern smartphones, specifically functioning as a Multimode Multiband (MMMB) Power Amplifier Module (PAM).2
Technical Overview
The 77621-31 is designed to support a wide array of cellular standards, including 2.5G (GSM/EDGE), 3G (WCDMA/HSPA+/TD-SCDMA), and 4G (LTE).3 Its primary role is to amplify the low-power RF signals from the phone’s transceiver to a level sufficient for transmission through the antenna to a distant cell tower.4
Key Specifications
| Parameter | Details |
| Manufacturer | Skyworks Solutions Inc. |
| Function | Multimode Multiband Power Amplifier Module (PAM) |
| Network Support | GSM, GPRS, EDGE, WCDMA, HSPA+, LTE |
| Frequency Bands | Quad-band GSM (850/900/1800/1900), LTE (B1, B2, B3, B4, B5, B8, B12, B13, B17, B20, B28, B39) |
| Package Type | 42-pad MCM (Multi-Chip Module) |
| Dimensions | $5 \times 7 \times 0.9$ mm |
| Input/Output Impedance | Internally matched to $50\Omega$ |
Internal Architecture
The module is a “hybrid” system, meaning it integrates several specialized blocks into a single miniature package to save space on the mobile logic board.
-
Low/High Band PA Blocks: Separate power amplifier paths for low frequencies (e.g., 700–900 MHz) and high frequencies (e.g., 1700–2100 MHz).
-
Multi-Function Control (MFC): An internal logic block that manages the biasing and power modes based on commands from the phone’s processor.
-
Matching Circuitry: Internal 5$50\Omega$ matching reduces the need for external capacitors and inductors, simplifying the PCB design for manufacturers like Samsung and Apple.6
Practical Application and Compatibility
The 77621-31 is a critical “repair-level” component.7 In the mobile technician community, it is frequently used to resolve issues related to signal loss, “Searching…” or “No Service” status, and network instability.
-
Samsung Galaxy Series: Widely used in mid-range models such as the A12 (A125), A02 (A022), and A31 (A315).8
-
iPhone Series: Utilized in the iPhone 7 and 8 series for specific regional variants to manage cellular amplification.
-
Failure Symptoms: If this IC fails, the phone may show a “No SIM” error (even with a SIM inserted) or fail to register on LTE networks while remaining functional on Wi-Fi.
Installation and Repair Guidelines
Because the 77621-31 is an SMD (Surface Mount Device) in a BGA-style (Ball Grid Array) package, it requires professional-grade tools for replacement.
Note for Technicians:
Temperature Control: Use a hot-air rework station set between 330°C and 350°C for removal. Excess heat can delaminate the logic board.
Precision: Use a dedicated reballing stencil. The 42-pad configuration is dense, and any solder bridge between pads will cause a short circuit, potentially killing the RF transceiver.
Orientation: Always note the “Pin 1” marker (usually a small dot or triangle) before removing the old chip to ensure the new one is aligned correctly.
