77633-11 Original Mobile Phone IC
Discover the Excellence of the 77633-11 Original Mobile Phone IC
Looking for a dependable and high-performing mobile phone IC to enhance your device’s functionality? The 77633-11 Original Mobile Phone IC is the ideal choice, offering precision, durability, and advanced technology in one compact package. Engineered to provide reliable performance, this product ensures that your mobile phone operates smoothly, without hiccups or disruptions.
Unmatched Quality for Seamless Connectivity
The 77633-11 Original Mobile Phone IC stands out for its superior quality and design. Manufactured to the highest industry standards, it guarantees optimal connectivity, ensuring your mobile phone maintains stable signals and efficient operations. Its robust build ensures longevity, allowing you to invest in quality without frequent replacement needs.
Whether you’re a professional repairing devices or a tech enthusiast upgrading components, this IC is trusted for its consistent performance. Its compatibility with a wide range of mobile phone models ensures flexibility, making it a must-have for technical repairs or part replacements.
Why Choose the 77633-11 IC for Your Mobile Phone?
With the 77633-11 Original Mobile Phone IC, you gain access to cutting-edge technology that enhances your mobile phone’s performance. It is crafted using advanced materials that ensure resistance to overheating and wear, solidifying its reputation as a dependable component.
The easy installation process is another advantage, saving both time and effort while ensuring professional-level results. Whether you’re replacing a worn-out IC or upgrading for better performance, this product delivers an exceptional user experience.
Upgrade Your Device Today with the 77633-11 Mobile Phone IC
Don’t compromise on quality when it comes to your mobile phone components. The 77633-11 Original Mobile Phone IC is the smart choice for anyone seeking premium performance, durability, and reliability all in one. Whether you’re a repair expert or an everyday user looking for dependable solutions, this IC is your go-to product for superior functionality. Order now and witness the difference!

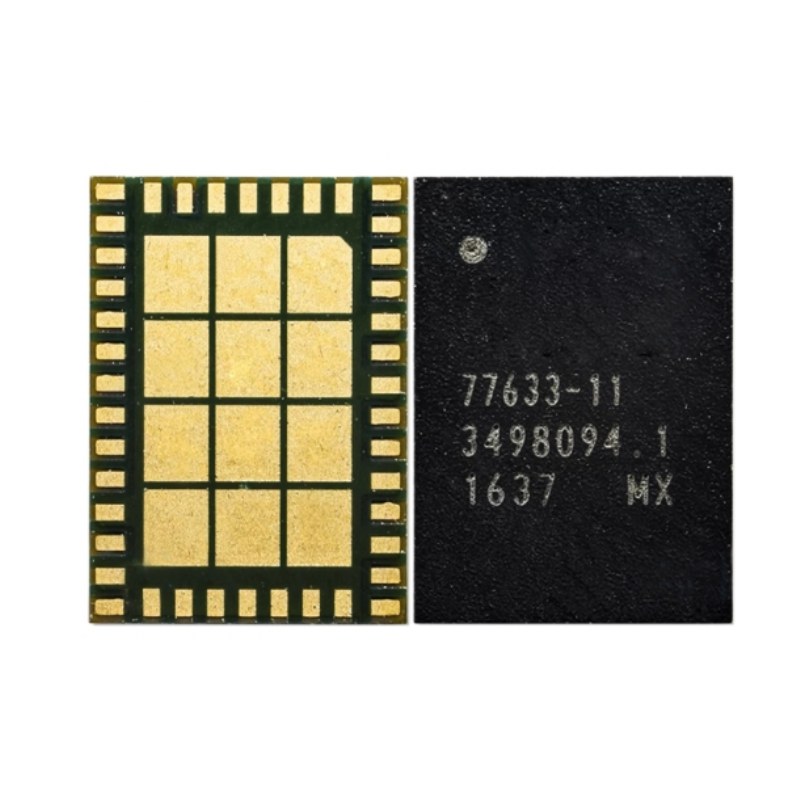

The 77633-11 is an advanced, original Multimode Multiband (MMMB) Power Amplifier Module (PAM) designed for high-end mobile devices. This integrated circuit (IC) is a critical component in the Radio Frequency (RF) front-end, primarily responsible for amplifying transmitted signals across 2G, 3G, and 4G LTE networks. It is widely recognized for its use in flagship and mid-range devices, such as the Samsung Galaxy S9, S9+, Note 8, and J7.
1. Functional Overview
The 77633-11 acts as the final stage of signal processing before a radio signal is sent out through the phone’s antenna. Its primary role is to take the low-power modulated signal from the transceiver and boost its power to the levels required to reach distant cellular base stations. Because it is a “Multimode Multiband” module, it can handle multiple frequency bands (e.g., Low Band and High Band) and different modulation schemes (like GSM, WCDMA, and LTE) within a single chip.
2. Technical Architecture
The IC is built using Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) technology. GaAs is preferred over standard silicon for RF power amplifiers because it can operate at much higher frequencies with greater efficiency and lower noise.
-
Hybrid Architecture: It features separate internal paths for GSM and WCDMA/LTE to ensure maximum efficiency for each mode.
-
Integrated Matching: All RF input and output ports are internally matched to 50 $\Omega$. This simplifies the PCB design by reducing the need for external capacitors and inductors.
-
Logic Control: It utilizes the MIPI RFFE (Radio Frequency Front End) digital interface. This allows the phone’s CPU to send real-time commands to the IC to change power modes, bias levels, and active bands in microseconds.
3. Key Specifications
| Feature | Detail |
| Supported Modes | GSM/EDGE, WCDMA (HSPA+), TDD-LTE, FDD-LTE |
| Bands | Quad-band GSM; Hepta-band WCDMA/LTE (Bands 1, 2, 3, 4, 5, 8, 20 etc.) |
| Package Size | 7.0 x 5.0 x 0.9 mm (approx.) |
| Interface | MIPI RFFE (SCLK, SDATA) |
| Power Management | Supports Average Power Tracking (APT) and Envelope Tracking (ET) |
4. Why It is Critical for Repairs
In the repair industry, the 77633-11 is often identified as the “Network IC” or “PA IC.” Since it is connected directly to the main power line of the phone (VBATT), it is highly susceptible to damage.
Common Symptoms of a Faulty 77633-11:
-
“No Service” or “Searching”: The phone can receive signal bars but cannot “talk” back to the tower because the transmit amplifier is broken.
-
Dead Phone (Short Circuit): If the internal transistors of the 77633-11 short out, the entire phone will fail to turn on because the battery line is grounded through the chip.
-
High Battery Drain: A leaky IC can consume excessive current even when the phone is in standby, often causing the device to feel warm near the camera/RF section.
5. Professional Installation
Replacing this IC requires microsoldering under a microscope. Technicians typically use a hot air station set between 280°C and 350°C depending on the solder type used. Because it is a Multi-Chip Module (MCM), excessive heat can damage its internal laminate layers.
