77638-21 ORIGINAL Mobile Phone IC

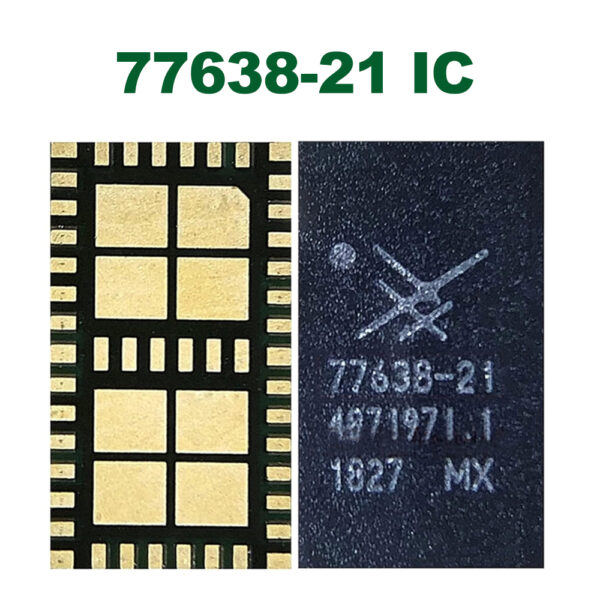

Unmatched Quality with the 77638-21 ORIGINAL Mobile Phone IC
The 77638-21 ORIGINAL Mobile Phone IC is designed to provide unmatched reliability and performance in your mobile device. Crafted with precision engineering, this mobile phone integrated circuit (IC) ensures optimal functioning of your electronics, making it a dependable choice for manufacturers and repair professionals alike.
Why Choose the 77638-21 ORIGINAL Mobile Phone IC?
Choosing the right IC is crucial to ensure your device operates seamlessly, and the 77638-21 ORIGINAL Mobile Phone IC exceeds expectations on all fronts. Its efficient design minimizes energy consumption while delivering powerful and consistent performance. Whether you’re upgrading your phone’s hardware or need a direct replacement for repairs, this IC caters to varied needs without compromising on durability.
Furthermore, the 77638-21 IC has been built to maintain compatibility with a wide range of mobile devices. Its universal design makes it suitable for professionals working with multiple phone types, ensuring you always have a solution on hand.
Precise Engineering for Lasting Performance
The 77638-21 ORIGINAL Mobile Phone IC is manufactured using advanced technology, ensuring it meets industry standards for high functionality and safety. Its compact design allows easy integration into mobile devices, saving time and effort during installation.
Given the importance of a reliable IC in mobile devices, this product includes a focus on heat management and enhanced circuitry protection. These features ensure your mobile phone remains safe from overheating or sudden electrical surges, safeguarding user data and device longevity in the process.
With the 77638-21 ORIGINAL Mobile Phone IC, you not only invest in superior hardware but also gain confidence in the efficiency and robustness of your mobile devices.
The 77638-21 is a high-integration Multimode Multiband (MMMB) Power Amplifier Module (PAM) designed for modern smartphone architectures. This component is a vital part of the Radio Frequency (RF) front-end, acting as the primary driver for transmitting signals across various cellular generations, including 2G, 3G, and 4G LTE.
By consolidating multiple frequency bands into a single, small-form-factor package, the 77638-21 enables manufacturers to build global-ready devices that can connect to different carrier networks around the world without requiring a massive motherboard.
1. Internal Architecture and Technology
The 77638-21 is built using a Multi-Chip Module (MCM) approach. It combines high-speed switching logic with powerful amplification circuits. The core of the module utilizes Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) technology.
GaAs is chosen over standard silicon for this specific IC because it offers high electron mobility and high breakdown voltage. This allows the 77638-21 to amplify signals at high frequencies (up to 2.7 GHz and beyond) with minimal distortion and maximum battery efficiency.
2. Technical Capabilities and Support
This IC is designed to be highly versatile, supporting a wide array of global frequency bands:
-
Multimode Support: It handles GSM, EDGE, WCDMA, HSPA+, and various LTE categories (both FDD and TDD).
-
Integrated Switching: The module includes high-linearity switches that manage the routing between the transmit and receive paths.
-
MIPI RFFE Interface: The chip follows the MIPI Alliance specifications for the Radio Frequency Front End. This allows the phone’s CPU to digitally control the IC’s gain, power modes, and band selection with microsecond precision.
3. Performance Specifications
| Feature | Details |
| Package Dimensions | Compact LGA (Land Grid Array) surface-mount |
| Efficiency Tech | Supports Average Power Tracking (APT) |
| Impedance | Fully matched 50 $\Omega$ inputs and outputs |
| Frequency Range | Optimized for Low, Mid, and High-Band LTE |
| Connectivity | High-speed digital MIPI control lines |
4. Role in the RF Subsystem
The 77638-21 sits between the RF transceiver and the antenna switch module (or sometimes directly to the antenna). When you make a call or use mobile data, the transceiver sends a very weak signal to the 77638-21. This IC then uses power from the phone’s battery to “inflate” that signal, ensuring it is powerful enough to reach a cell tower several kilometers away.
Because it supports Average Power Tracking (APT), it doesn’t always run at full power. Instead, it adjusts its energy consumption based on how far away the cell tower is, which is a major reason modern smartphones can last a full day on a single charge.
5. Common Faults and Troubleshooting
In the world of mobile repair, the 77638-21 is known to be a high-stress component. Because it handles significant current, it is prone to failure if the phone experiences water damage or drops.
-
“No Service” Symbol: If the amplification stages fail, the phone might show a signal but fail to “handshake” with the network.
-
Thermal Issues: A short circuit within the GaAs layers can cause the chip to heat up instantly, often leading to a “dead” phone or a device that hangs at the logo.
-
Current Consumption: Technicians often identify a faulty 77638-21 by checking the DC power supply; a high initial current draw (0.2A – 0.5A) before the power button is pressed often points to this IC being shorted to the VBATT line.
