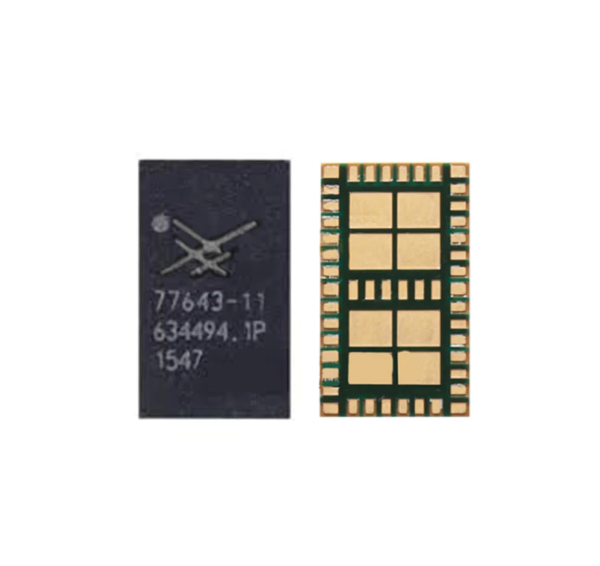

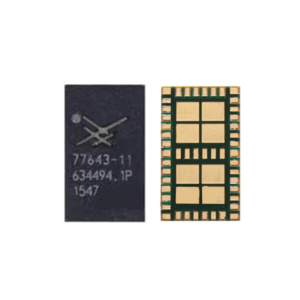

77643-11 Mobile Phone IC
Unparalleled Performance with the 77643-11 Mobile Phone IC
The 77643-11 Mobile Phone IC is your go-to solution for ensuring optimal functionality within modern mobile devices. Designed with cutting-edge technology, this integrated circuit guarantees seamless operation, delivering consistent and reliable performance in high-demand environments. Whether you are developing next-generation smartphones or ensuring compatibility with current hardware, this IC provides the efficiency and durability you need.
Advanced Features to Enhance Mobile Technology
Equipped with state-of-the-art design, the 77643-11 Mobile Phone IC comes with features aimed at elevating the performance of your device while conserving power. Its compact design ensures effortless integration into your mobile platform without compromising battery efficiency. The IC supports a wide range of functionalities essential for robust communication systems, such as signal processing, voltage regulation, and device management. These features make it a versatile choice for tech manufacturers striving for excellence in electronics.
Your Trusted Component for Custom Mobile Solutions
The 77643-11 Mobile Phone IC isn’t just a hardware element; it’s a critical piece of the mobile ecosystem. Its compatibility with diverse device architectures ensures that your product stays ahead of the curve in today’s competitive market. Additionally, the IC underwent rigorous quality checks to meet industry standards, making it a reliable and valuable addition to your inventory. Whether your goal is enhancing existing product lines or creating groundbreaking mobile solutions, this IC has got you covered.
The 77643-11 is a high-performance Multimode Multiband (MMMB) Power Amplifier Module (PAM) designed for the Radio Frequency (RF) front-end of mobile devices. As part of a specialized family of LTE-integrated modules, it handles the critical tasks of signal amplification, switching, and filtering required for global 3G and 4G connectivity.
The primary objective of the 77643-11 is to boost the low-power RF signal from a device’s transceiver to a level strong enough for transmission to distant cell towers while maintaining high energy efficiency.
1. Architectural Design
The 77643-11 is manufactured as a Multi-Chip Module (MCM) measuring approximately 4.0 x 6.8 x 0.8 mm. It is a 42-pad surface-mount component that integrates:
-
Amplifier Blocks: It utilizes Indium Gallium Phosphide (InGaP) and Gallium Arsenide (GaAs) HBT technology. These materials are chosen over standard silicon for their superior electron mobility, which allows the chip to handle high frequencies (like those used in LTE) with minimal power loss.
-
Control Logic: The module includes a Multi-Function Control (MFC) block. This allows for digital programming via the MIPI RFFE (Radio Frequency Front End) interface, ensuring that the phone’s processor can control the power modes and bands in real-time.
-
Matching Networks: To simplify the design of the mobile phone’s motherboard, the RF input and output ports are internally matched to 50 $\Omega$. This reduces the need for external inductors and capacitors, saving space on the PCB.
2. Supported Network Bands
This IC is a “Global Mode” building block, meaning it supports a vast range of frequencies used by carriers worldwide:
-
3G (WCDMA/HSPA+): Support for Bands I, II, III, IV, V, VIII, and IX. It also supports TD-SCDMA Bands 34 and 39.
-
4G LTE (FDD/TDD): It covers a massive array of LTE bands, including FDD-LTE Bands 1–5, 7–9, 12, 13, 17, 20, 28, and 30, as well as TDD-LTE Bands 38, 39, 40, and 41.
3. Key Technical Specifications
| Feature | Details |
| Interface | MIPI RFFE (Digital Control) |
| Voltage Control | Supports Average Power Tracking (APT) for DC-DC efficiency |
| Package | 42-pad MCM, SMT (Lead-free/RoHS compliant) |
| Modulation | Supports WCDMA Voice, HSDPA, HSUPA, and LTE (up to 20 MHz BW) |
| Protection | Integrated directional coupler for output power monitoring |
4. Practical Application and Failures
The 77643-11 is commonly found in a wide variety of smartphones, such as the Meizu M3 Note and several Xiaomi and Lenovo models.
In the repair industry, this IC is often identified as a cause of “No Service” or “Searching” errors. Because it is connected directly to the primary power rail of the phone, a failure inside the chip can result in a “dead short,” preventing the device from turning on. Furthermore, because it handles high power, a faulty 77643-11 can cause the phone to overheat significantly in the antenna area.
5. Installation Note
Replacing the 77643-11 requires professional-grade microsoldering equipment. Since it is a multi-layered laminate module, it is highly sensitive to heat. Excessive temperatures or prolonged heat exposure during rework can cause internal delamination (often called “popcorning”), rendering the new chip useless.
