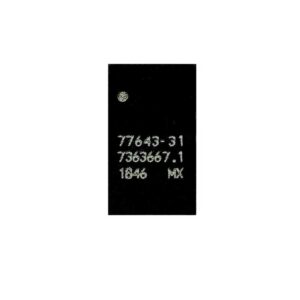

77643-31 Mobile Phone IC
Optimize Your Mobile Device with the 77643-31 IC
The 77643-31 Mobile Phone IC is designed to enhance the performance and efficiency of modern smartphones, delivering reliable functionality for seamless operation. With advanced engineering and precision manufacturing, this IC is essential for mobile device optimization. 77643-31 Mobile Phone IC
Superior Performance and Compatibility
Engineered for adaptability, the 77643-31 IC ensures compatibility with a wide range of mobile phone brands and models. Its robust design supports stable and efficient power management, reducing energy consumption while maximizing device performance. 77643-31 Mobile Phone IC
Key Features for Modern Mobility
Built to meet the demands of cutting-edge technology, the 77643-31 Mobile Phone IC excels in durability, scalability, and performance. Whether you’re repairing or upgrading a handset, this component guarantees a dependable solution to keep your device functioning flawlessly. 77643-31 Mobile Phone IC
The SKY77643-31 (often referred to simply as the 77643-31) is a high-performance Multimode Multiband (MMMB) Power Amplifier Module (PAM) manufactured by Skyworks Solutions. It is a critical component in the RF (Radio Frequency) front-end of modern smartphones, responsible for amplifying signals across various cellular standards including 3G and 4G LTE.
Below are the detailed specifications and technical parameters for the 77643-31. 77643-31 Mobile Phone IC
Technical Specifications: SKY77643-31
| Parameter | Specification / Value |
| Manufacturer | Skyworks Solutions, Inc. |
| Model Number | SKY77643-31 |
| Type | Power Amplifier Module (PAM) |
| Architecture | Multimode Multiband (MMMB) SkyLiTE™ |
| Package Dimensions | $4.0 \times 6.8 \times 0.75 \text{ mm}$ |
| Package Type | 42-pad MCM (Multi-Chip Module) |
| Control Interface | MIPI RFFE (Radio Frequency Front End) |
| Supply Voltage ($V_{BATT}$) | $3.0\text{V to } 4.8\text{V}$ (Nominal $3.4\text{V}$) |
| Digital Control Voltage ($V_{IO}$) | $1.65\text{V to } 1.95\text{V}$ (Nominal $1.8\text{V}$) |
| Max RF Input Power | $+10\text{ dBm}$ |
| Operating Temperature | $-20^{\circ}\text{C to } +85^{\circ}\text{C}$ |
| Storage Temperature | $-40^{\circ}\text{C to } +150^{\circ}\text{C}$ |
| ESD Protection | $1000\text{V}$ (Human Body Model) |
Supported Frequency Bands & Modes
The 77643-31 is designed to be a “global” chip, supporting a vast array of bands used by carriers worldwide. It features dedicated paths for Low Band (LB), Mid Band (MB), and High Band (HB) operations.
| Network Type | Supported Bands / Channels |
| 4G LTE (FDD) | Bands 1, 2, 3, 4, 5, 7, 8, 9, 12, 13, 17, 20, 28, 30 |
| 4G LTE (TDD) | Bands 38, 39, 40, 41 |
| 3G WCDMA | Bands I, II, III, IV, V, VIII, IX |
| 3G TD-SCDMA | Bands 34, 39 |
| Carrier Aggregation | Supports Uplink Carrier Aggregation (CA) |
| Modulation | QPSK, 16QAM, 64QAM |
Key Functional Blocks
-
Power Amplifier (PA) Block: Consists of separate InGaP GaAs HBT (Heterojunction Bipolar Transistor) amplifier chains for different frequency ranges to ensure high efficiency.
-
Multi-Function Control (MFC): An integrated CMOS die that handles the MIPI digital logic, biasing, and internal switching.
-
Matching Networks: The RF input and output ports are internally matched to $50\ \Omega$, which significantly reduces the need for external surface-mount components on the phone’s PCB.
-
Directional Coupler: Integrated to provide precise power monitoring and feedback to the transceiver.
Device Applications
This IC is predominantly found in mid-to-high-end Android smartphones powered by MediaTek or Qualcomm chipsets. Notable devices that have historically utilized this module include:
-
Oppo: F1s, R11, A57
-
Vivo: Y55, V5
-
Huawei: Nova 3, P10 Lite
-
Xiaomi: Various Redmi Note series models
Operational Features
-
Efficiency Management: To maximize battery life, the IC works in tandem with a DC-DC converter (Envelope Tracking or Average Power Tracking). This adjusts the $V_{CC}$ based on the required output power, preventing energy waste during low-signal scenarios.
-
MIPI Programmability: Using the MIPI RFFE bus, the phone’s processor can instantly switch bands, adjust bias levels for linearity, or put the chip into a “Deep Sleep” mode (with leakage current $< 10\ \mu\text{A}$) to preserve standby time.
-
High Power User Equipment (HPUE): Supports LTE Power Class 2, which allows for higher output power on Band 41 to improve coverage at cell edges.
Repair & Handling Notes
-
Heat Sensitivity: Being an SMT (Surface Mount Technology) component, it requires precise temperature profiles during soldering. Excessive heat can delaminate the multi-layer substrate.
-
ESD Sensitivity: This is a highly sensitive CMOS/GaAs hybrid. Technicians should always use anti-static mats and wrist straps when handling the bare IC.
-
Fault Symptoms: If this IC fails, the phone will typically show “No Service,” “Searching,” or “Emergency Calls Only,” despite a valid SIM card being present.
