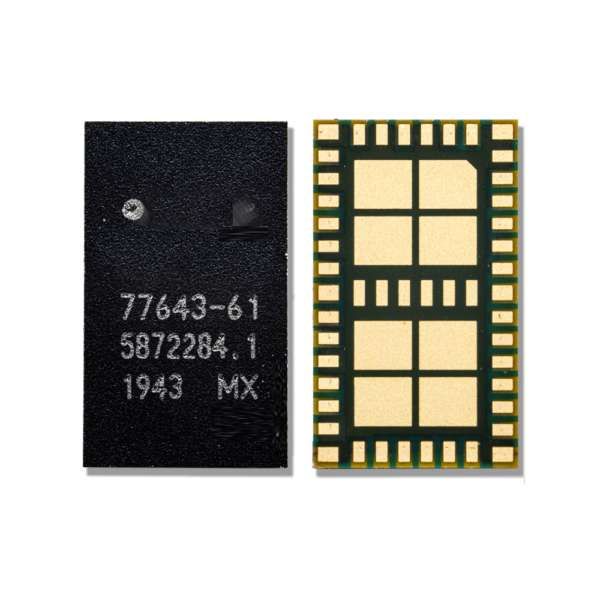

77643-61 Mobile Phone IC
Reliable Performance for Mobile Devices
The 77643-61 Mobile Phone IC offers exceptional efficiency and stability, making it a perfect choice for mobile phone applications. Designed with advanced technology, this integrated circuit ensures optimal performance to meet the demands of modern devices. 77643-61 Mobile Phone IC
Compact and High-Quality Design
Featuring a compact design, the 77643-61 IC fits seamlessly into various mobile phone configurations. With its high-quality components, it guarantees reliable operation, ensuring your device functions smoothly under different conditions. 77643-61 Mobile Phone IC
Versatile Applications
This IC is suitable for a wide range of mobile device needs, from maintaining stable connections to powering essential functionalities. Its versatility and durability provide a dependable solution for manufacturers and developers. 77643-61 Mobile Phone IC
The SKY77643-61 (often referred to simply as the 77643-61) is a high-performance Multimode Multiband (MMMB) Power Amplifier Module (PAM) manufactured by Skyworks Solutions. This component is a critical part of the Radio Frequency (RF) front-end in modern smartphones, particularly those utilizing Qualcomm Snapdragon or MediaTek chipsets.
Its primary role is to amplify low-power RF signals before they are sent to the antenna for transmission, ensuring a stable connection to cellular towers across various network generations (3G and 4G LTE). 77643-61 Mobile Phone IC
Technical Specifications: SKY77643-61
The following table outlines the comprehensive technical parameters and physical characteristics of the IC.
| Feature | Specification Details |
| Manufacturer | Skyworks Solutions, Inc. |
| Part Number | SKY77643-61 (SkyLiTE™ Series) |
| IC Type | Multimode Multiband Power Amplifier Module (PAM) |
| Supported Networks | 3G (WCDMA, TD-SCDMA, CDMA2000), 4G (FDD-LTE, TDD-LTE) |
| Frequency Range | 824 MHz – 915 MHz (Low Band) / 1710 MHz – 1980 MHz (Mid/High Band) |
| Supply Voltage ($V_{CC}$) | 3.0V to 4.5V (Typically 3.4V nominal) |
| Output Power ($P_{out}$) | Up to +33 dBm (GSM/Edge), +28.5 dBm (LTE/WCDMA) |
| Control Interface | MIPI® RFFE (Mobile Industry Processor Interface) |
| Package Type | MCM (Multi-Chip Module) / SMT (Surface Mount) |
| Pin/Pad Count | 42-Pad configuration |
| Dimensions | 4.0 mm x 6.8 mm x 0.71 mm |
| Operating Temp | $-40\text{°C}$ to $+85\text{°C}$ |
Key Functional Blocks
The 77643-61 is more than just a simple amplifier; it is an integrated module containing several specialized circuits: 77643-61 Mobile Phone IC
-
GaAs InGaP Die: Provides the high-efficiency amplification for 3G and 4G signals. 77643-61 Mobile Phone IC
-
Silicon CMOS Die: Houses the Multi-Function Control (MFC) block and the MIPI interface, allowing the phone’s processor to “talk” to the amplifier.
-
Internal Matching: Features 50 $\Omega$ internally matched input/output ports, which simplifies the PCB design for phone manufacturers.
Operational Characteristics
The IC is designed for efficiency to maximize the battery life of the mobile device. It uses an Average Power Tracking (APT) or Envelope Tracking (ET) mechanism where the supply voltage is adjusted in real-time by a DC-DC converter based on the required signal strength.
Power Management Modes
The MIPI interface allows the IC to switch between different power states to conserve energy:
-
High Power Mode: Used when the phone is far from a cell tower (maximum amplification).
-
Medium/Low Power Mode: Used in areas with strong signals to reduce current consumption.
-
Sleep/Standby Mode: Draws near-zero current (typically $<10\mu\text{A}$) when the radio is inactive.
Common Applications & Failure Symptoms
This IC is widely found in mid-range and budget smartphones from brands like Huawei (Honor series), Xiaomi (Redmi), and Oppo.
When does this IC need replacement?
Because it handles high power and generates heat, it is one of the most common points of failure on a motherboard. Technicians look for the following “dead IC” symptoms:
-
“No Service” or “Searching”: The phone cannot detect the network even with a valid SIM.
-
Weak Signal: The device only gets 1-2 bars of signal even outdoors.
-
Battery Drain/Heating: A short circuit inside the 77643-61 can cause the phone to get hot near the top of the motherboard and drain the battery rapidly.
-
Phone Not Turning On: If the IC has a severe internal short, it can pull down the main power rail ($V_{PH\_PWR}$ or $V_{BAT}$), preventing the phone from booting.
Technical Handling for Repairs
Replacing this IC requires professional micro-soldering skills. Since it is a BGA (Ball Grid Array) component with 42 pads, specific precautions are necessary:
-
Reballing: New ICs usually come with pre-applied lead-free solder balls. If reused, a 0.35mm or 0.4mm stencil is typically required.
-
Temperature Profile: Safe removal usually occurs at $350\text{°C} – 380\text{°C}$ with medium airflow to avoid damaging the internal laminate substrate.
-
Orientation: The “Pin 1” marker (usually a small dot) must be aligned with the motherboard markings to avoid a short circuit.
