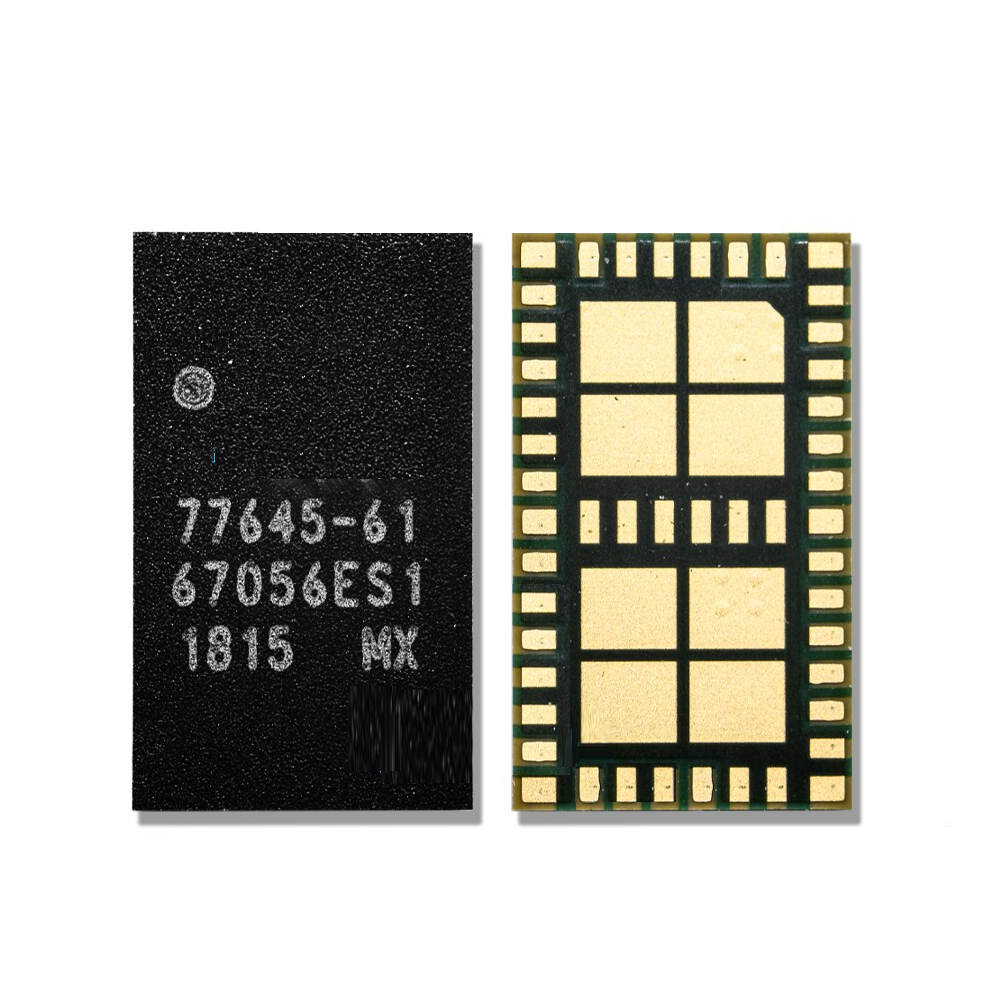

77645-61 Original Mobile Phone IC
Reliable Performance for Mobile Devices
The 77645-61 Original Mobile Phone IC is designed to ensure consistent and dependable performance in your mobile device. Engineered with precision, this IC guarantees exceptional functionality, making it a perfect fit for original equipment manufacturers and repair needs.
High-Quality Build and Compatibility
Built to meet industry standards, the 77645-61 IC offers seamless compatibility with a wide range of mobile devices. Its premium quality ensures efficient operation, helping your device achieve peak performance without compromise. 77645-61 Original Mobile Phone IC
Designed for Longevity and Efficiency
Whether you’re replacing a defective part or building a new product, the 77645-61 Original Mobile Phone IC is crafted to deliver durability and energy efficiency. Trust this reliable IC to enhance your device’s lifespan and functionality effortlessly. 77645-61 Original Mobile Phone IC
The 77645-61, manufactured by Skyworks Solutions Inc. (marketed under the SkyLiTE™ brand), is a highly integrated Multimode Multiband (MMMB) Power Amplifier Module (PAM). It is a critical “front-end” component in modern smartphones, responsible for amplifying radio frequency (RF) signals to ensure they are strong enough to reach cellular towers across various network standards including 3G and 4G LTE. 77645-61 Original Mobile Phone IC
Technical Specifications: 77645-61 (SkyLiTE™)
The following table outlines the core technical parameters for the 77645-61 module based on its design as a high-efficiency RF front-end. 77645-61 Original Mobile Phone IC
| Category | Specification Details |
| Manufacturer | Skyworks Solutions Inc. |
| Series / Brand | SkyLiTE™ (Multimode Multiband PAM) |
| Part Number | SKY77645-61 |
| Primary Function | Power Amplifier (PA) / RF Front-End Module |
| Network Support | 3G (WCDMA, TD-SCDMA, CDMA2000) & 4G (FDD/TDD LTE) |
| Frequency Range | 700 MHz to 2700 MHz (Multiband Coverage) |
| Interface Control | MIPI® RFFE (Mobile Industry Processor Interface) |
| Operating Voltage ($V_{CC}$) | 3.0V to 4.5V (Optimized for Li-ion Batteries) |
| Typical Gain | 25 dB to 30 dB (Mode Dependent) |
| Input/Output Impedance | 50 $\Omega$ (Internally Matched) |
| Package Type | 42-pad Multi-Chip Module (MCM) |
| Package Dimensions | $4.0 \times 6.8 \times 0.75$ mm |
| Operating Temp | -30°C to +85°C |
Detailed Feature Overview
1. Multimode & Multiband Versatility
The 77645-61 is designed to be a “one-stop” solution for global roaming. It supports:
-
WCDMA/HSPA+: Bands I, II, III, IV, V, VIII.
-
LTE (FDD): Primary bands including 1, 3, 5, 7, 8, 20, 28.
-
LTE (TDD): Support for Band 38, 39, 40, and 41.
-
TD-SCDMA: Specifically for markets using Bands 34 and 39.
2. Efficiency and Power Management
This IC is optimized for Average Power Tracking (APT). In a mobile device, the battery life is heavily dictated by how much energy the Power Amplifier wastes. The 77645-61 works in tandem with a DC-DC converter to adjust its supply voltage dynamically based on the required output power, significantly reducing heat and current draw during low-power operation.
3. Integrated Components
Unlike older designs that required multiple external filters and matching circuits, the 77645-61 integrates:
-
Power Amplifiers: Separate paths for Low, Mid, and High frequency bands.
-
Multi-Function Control (MFC): Logic that handles the MIPI commands from the phone’s baseband processor.
-
Matching Networks: 50-ohm internal matching minimizes the PCB footprint, making it ideal for slim smartphone designs.
Repair and Troubleshooting Notes
Technicians often encounter the 77645-61 during repairs involving “No Service” or “Weak Signal” issues.
Common Failure Symptoms:
-
Signal Dropping: The phone shows signal bars but fails to place a call (uplink failure).
-
High Battery Drain: A short circuit within the IC can cause the device to heat up near the RF section even when idle.
-
No Network: Total loss of 4G or 3G connectivity while Wi-Fi remains functional.
Installation Guidelines:
-
BGA Reballing: The 77645-61 uses a 42-pad configuration. If the IC is being reused or “reseated,” ensure the solder balls are uniform. 77645-61 Original Mobile Phone IC
-
Heat Sensitivity: During soldering/desoldering, use a regulated hot air station (recommended 330°C – 350°C) to avoid delaminating the internal laminate substrate of the MCM.
-
Orientation: The “Pin 1” marker (usually a small dot or notch) must align perfectly with the PCB marking to prevent an electrical short. 77645-61 Original Mobile Phone IC
Summary for Technicians
The 77645-61 (SKY77645-61) is a robust, MIPI-controlled power amplifier. Its ability to handle diverse frequencies in a compact $4.0 \times 6.8$ mm footprint makes it a staple in mid-to-high-range smartphones. When replacing this component, always ensure you are using an “Original” grade IC, as the internal matching of high-frequency components is highly sensitive to manufacturing tolerances. 77645-61 Original Mobile Phone IC
