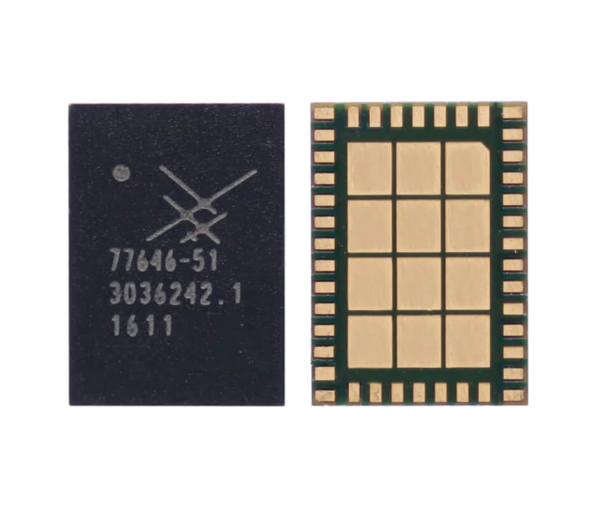

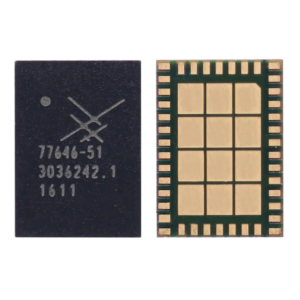

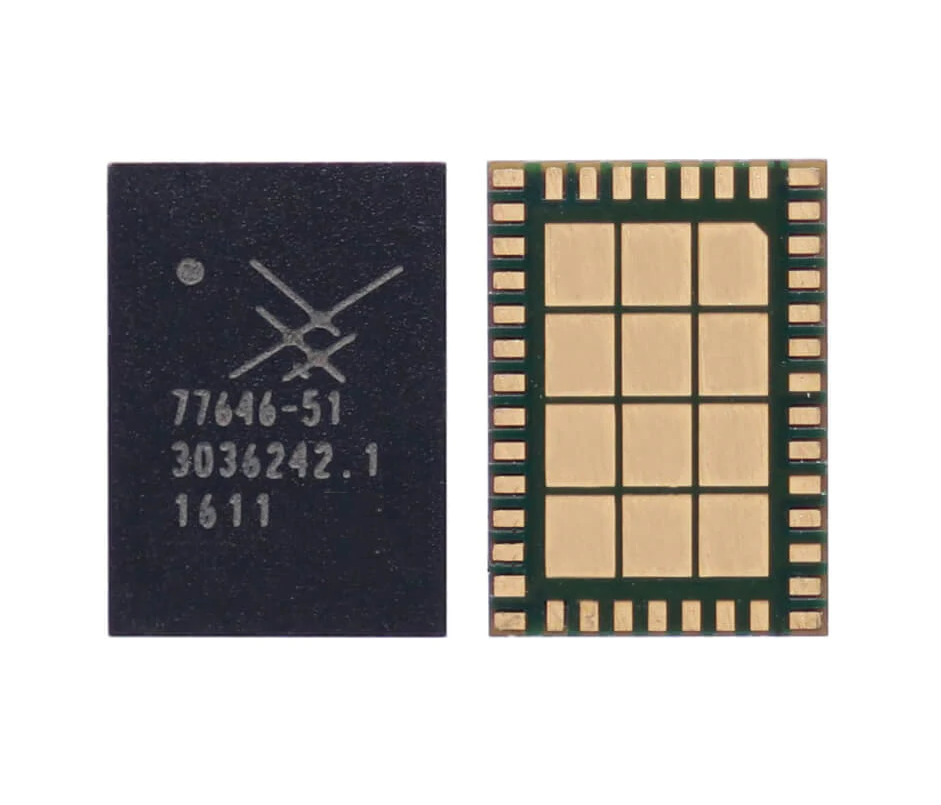

The SKY77646-51 (often simply referred to as 77646-51) is a critical Multimode Multiband (MMMB) Power Amplifier Module (PAM) manufactured by Skyworks Solutions. Unlike charging ICs which manage “juice,” this IC is the “voice” of the phone; it is responsible for amplifying radio frequency (RF) signals so they are strong enough to reach the cellular tower. 77646-51 Mobile Phone IC
Below is the detailed technical specification and documentation for this module. 77646-51 Mobile Phone IC
Technical Specifications Table
| Feature | Specification Details |
| Manufacturer | Skyworks Solutions, Inc. |
| IC Type | Multimode Multiband Power Amplifier Module (PAM) |
| Frequency Support | Quad-band GSM, WCDMA, LTE (FDD/TDD) |
| Operating Voltage ($V_{CC}$) | 3.0 V to 4.5 V (Supports Battery Direct or Buck DC/DC) |
| Control Interface | MIPI® RFFE (Radio Frequency Front End) |
| Architecture | InGaP / GaAs (Gallium Arsenide) MMIC |
| Input/Output Impedance | 50 $\Omega$ (Internally Matched) |
| LTE Bandwidth Support | 1.4, 3, 5, 10, 15, 20 MHz |
| Efficiency (PAE) | ~46% at 28.6 dBm (High Efficiency Mode) |
| Package Type | 42-pad MCM (Multi-Chip Module) |
| Physical Dimensions | 7.0 mm x 5.0 mm x 0.9 mm |
Core Features and Band Support
The 77646-51 is a highly versatile RF component designed for “global” phones. It supports a vast array of frequency bands, making it a “Swiss Army Knife” for mobile connectivity.
1. Multi-Generation Compatibility
-
2.5G (GSM/EDGE): Supports Quad-band GSM850, EGSM900, DCS1800, and PCS1900. It includes Class 12 multi-slot operation.
-
3G (WCDMA/HSPA+): Optimized for high-speed data transmission with integrated band-select switching.
-
4G (LTE): Meets spectral linearity requirements for QPSK and 16QAM modulations.
2. Supported Frequency Bands
The module covers an extensive range of 3GPP bands, including:
-
Low Bands: Bands 8, 12, 13, 17, 20, 26, 28.
-
Mid Bands: Bands 1, 3, 4, 25, 34, 39.
3. Advanced Power Management
One of its most advanced features is Envelope Tracking (ET) compatibility. In standard amplifiers, power is often wasted as heat. With ET, the supply voltage to the IC is adjusted in real-time to match the signal’s “envelope,” significantly reducing battery drain during heavy data usage (like streaming video).
Internal Architecture and Logic
The 77646-51 is not a single piece of silicon; it is a Hybrid Module.
-
Amplifier Die: Uses Gallium Arsenide (GaAs) for the power amplifier stages because GaAs can handle higher frequencies and power levels more efficiently than standard silicon.
-
Control Die: A silicon CMOS die handles the digital logic. It translates MIPI RFFE commands from the phone’s CPU into bias voltages that control the amplifier’s gain and mode.
-
Matching Circuits: RF signals are sensitive. The IC includes internal capacitors and inductors to ensure the impedance stays at exactly 50 $\Omega$, preventing signal reflections that could damage the radio hardware.
Troubleshooting in Mobile Repair
Technicians frequently encounter the 77646-51 in devices like the Xiaomi Redmi Note series and various Samsung Galaxy models. Since this IC handles the network signal, faults are usually very specific.
Common Failure Symptoms:
-
No Service / Searching: If the IC fails, the phone cannot transmit to the tower. The phone might show “No Service” even if a valid SIM is inserted.
-
Weak Signal: If the internal gain stages are damaged, the phone might only get 1 “bar” of signal or only work when standing very close to a cell tower.
-
High Battery Drain on Data: If the IC has a partial internal short, it will get very hot when 4G/LTE is turned on, leading to rapid battery percentage drops.
-
Network-Specific Failure: Sometimes the IC fails only on specific bands. For example, the phone may work on 2G but lose all signal when switched to 4G.
Repair Benchmarks:
-
VCC Check: Measure the voltage at the capacitors surrounding the IC. You should see battery voltage (approx. 3.7 V to 4.2 V). 77646-51 Mobile Phone IC
-
Visual Inspection: Look for “cracks” on the top of the black epoxy or discoloration, which indicates the IC has “blown” due to a power surge. 77646-51 Mobile Phone IC
-
RFFE Bus: Using an oscilloscope, advanced technicians check for data on the SCLK and SDATA lines to ensure the CPU is actually talking to the IC. 77646-51 Mobile Phone IC
Summary for Technicians
The SKY77646-51 is a master of efficiency. By combining GSM, WCDMA, and LTE paths into a single 7x5mm package, it saves critical space on the motherboard. However, its complexity means it cannot be “repaired”—if it fails, the entire BGA (Ball Grid Array) module must be replaced using a hot air rework station. 77646-51 Mobile Phone IC
