77656-11 Mobile Phone IC
Advanced Technology for Reliable Mobile Functionality
Designed to meet the evolving needs of modern smartphones, the 77656-11 Mobile Phone IC delivers superior performance and unmatched reliability. Whether you’re developing new devices or upgrading existing ones, this IC ensures optimal efficiency and longevity. 77656-11 Mobile Phone IC
Compact Design with Powerful Capabilities
Engineered to fit seamlessly into your device architecture, the 77656-11 IC optimizes space utilization while delivering exceptional processing power. Its compact design complements a wide range of device sizes and ensures smooth multitasking. 77656-11 Mobile Phone IC
Enhance Performance with Energy Efficiency
One of the standout qualities of the 77656-11 Mobile Phone IC is its energy-saving capabilities. Designed to minimize power consumption without compromising speed, it helps extend battery life, keeping devices functional for longer periods. Perfect for cutting-edge mobile development. 77656-11 Mobile Phone IC

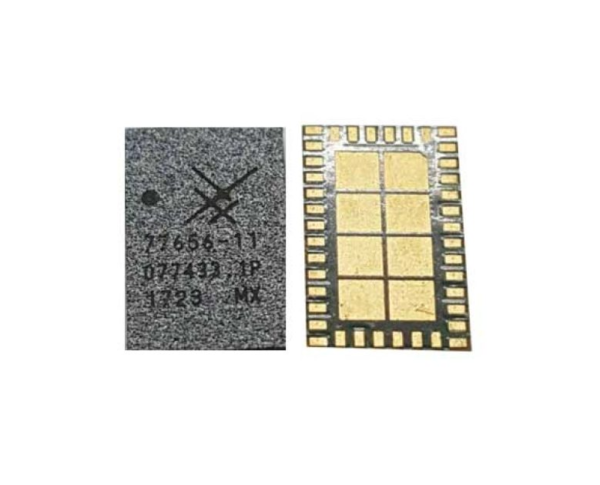

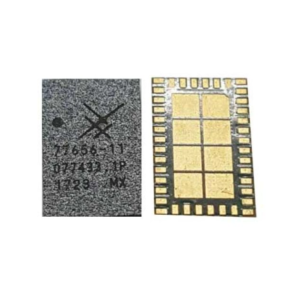

The SKY77656-11 (often referred to simply as 77656-11) is a high-performance, Multimode Multiband (MMMB) Power Amplifier Module (PAM) developed by Skyworks Solutions. It is a critical component in the radio frequency (RF) front-end of modern smartphones, particularly popular in Samsung Galaxy devices like the Note 8, S9, and J6. 77656-11 Mobile Phone IC
Its primary role is to amplify weak signals from the phone’s internal processor to a power level sufficient for transmission to distant cell towers across various network standards, including 2.5G (GSM), 3G (WCDMA), and 4G (LTE).
Technical Specifications Table
| Feature | Specification Details |
| Manufacturer | Skyworks Solutions, Inc. |
| Part Number | SKY77656-11 |
| Function | Multimode Multiband (MMMB) Power Amplifier Module |
| Supported Generations | 2.5G (GSM/EDGE), 3G (WCDMA/HSPA+), 4G (LTE) |
| Package Type | MCM (Multi-Chip Module), 40-pad Surface Mount |
| Dimensions | 4.3 mm x 6.95 mm x 0.75 mm |
| Input/Output Impedance | 50 $\Omega$ (Internally Matched) |
| Control Interface | Two-wire MIPI® RFFE (SCLK, SDATA) |
| Supply Voltage ($V_{CC}$) | 3.0 V to 4.5 V (Typical 3.4 V – 4.2 V) |
| Technology | InGaP / GaAs (Indium Gallium Phosphide) |
| Operating Frequency | 700 MHz to 2700 MHz (Broadband Coverage) |
Key Features & Band Support
The 77656-11 is designed with a hybrid architecture that separates the signal paths for older GSM standards and modern 3G/4G high-speed data. This allows for specialized optimization—maximizing battery life during simple voice calls while providing high linearity for 4G data streaming.
1. Network Band Coverage
The module is exceptionally versatile, supporting a wide array of 3GPP frequency bands:
-
GSM/EDGE: Quad-band support (850, 900, 1800, 1900 MHz).
-
WCDMA/LTE (FDD): Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 20, 26, 28, 29, 30.
-
TD-SCDMA / TDD-LTE: Bands 34, 38, 39, 40, 41.
2. Efficiency and Power Management
-
APT (Average Power Tracking): Optimized for APT systems to reduce power consumption by adjusting the supply voltage based on the actual power needed for transmission.
-
Low Leakage Current: Designed to minimize “parasitic” power draw, which significantly extends the handset’s standby time.
-
MIPI RFFE Control: Uses the industry-standard MIPI interface for fast, digital control of power levels and band switching, reducing the physical pin count and PCB complexity.
Application & Compatibility
The 77656-11 is most commonly found in flagship and mid-range devices from 2017–2019. Because it handles the “heavy lifting” of the cellular signal, it is a common point of failure if a phone experiences “No Service” or “Searching” issues after a drop or water damage.
Primary Device Compatibility
-
Samsung Galaxy Series: Note 8 (N950), S9 (G960), S9+ (G965), A30, J6.
-
Chipset Pairing: Often paired with Qualcomm Snapdragon or Exynos baseband processors.
Repair & Installation Notes
Technical Warning: The 77656-11 is a BGA (Ball Grid Array) component. It requires professional SMD (Surface Mount Device) soldering tools and expertise.
-
Sensitivity: Like most GaAs (Gallium Arsenide) components, it is sensitive to electrostatic discharge (ESD) and excessive heat during the “reballing” or installation process.
-
Orientation: The IC has a specific “Pin 1” marker (usually a small dot) that must align with the motherboard’s markings to prevent a short circuit.
-
Diagnosis: If a device has a working SIM card but cannot register on a network, or if the “Radio Off” status appears in hidden settings, this Power Amplifier IC is often the culprit.
