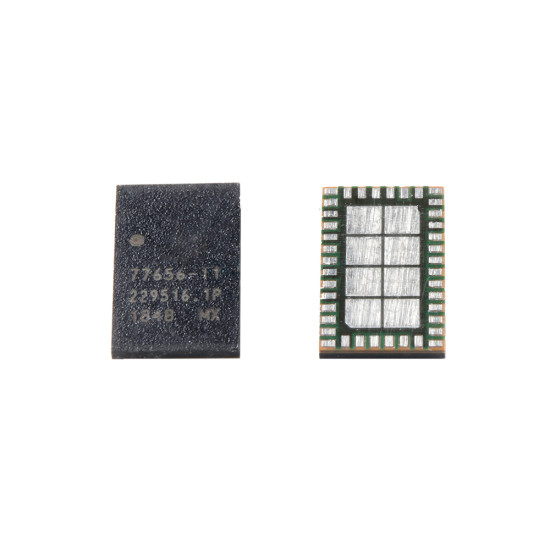

77656-11 Original Mobile Phone IC
High-Quality Original Mobile Phone IC
Unlock the true potential of your mobile device with the 77656-11 Original Mobile Phone IC. Designed for exceptional performance and reliability, this IC is perfect for restoring full functionality to your phone. 77656-11 Original Mobile Phone IC
Exceptional Performance and Durability
The 77656-11 IC boasts robust construction, ensuring it operates efficiently under demanding conditions. It’s compatible with a wide range of phone models, making it a versatile solution for repairs or upgrades. Precision engineering ensures consistent performance every time. 77656-11 Original Mobile Phone IC
Why Choose 77656-11 Original IC?
This original component is made to strict quality standards, ensuring optimal compatibility and long-lasting reliability. Whether you’re a technician or an individual performing a repair, the 77656-11 IC provides the trusted solution you need to get your device back to working perfectly. 77656-11 Original Mobile Phone IC
The SKY77656-11 (often referred to as 77656-11) is a sophisticated Multi-mode Multi-band (MMMB) Power Amplifier Module (PAM) manufactured by Skyworks Solutions. This IC is a critical component in the RF front-end of modern smartphones, responsible for amplifying signals across 2G, 3G, and 4G LTE networks. 77656-11 Original Mobile Phone IC
Below is a detailed technical specification and breakdown of the 77656-11 IC. 77656-11 Original Mobile Phone IC
77656-11 Technical Specifications
| Feature / Parameter | Detailed Specification |
| Manufacturer | Skyworks Solutions Inc. |
| Component Type | Multimode Multiband Power Amplifier Module (PAM) |
| Supported Generations | 2.5G (GSM/EDGE), 3G (WCDMA), 4G (LTE) |
| Frequency Bands | Quad-band GSM; WCDMA/LTE Bands 1, 2, 3, 4, 5, 8, 12, 13, 17, 20, 26, 28, 34, 39 |
| Control Interface | Two-wire MIPI® RFFE (SCLK, SDATA) |
| Input/Output Impedance | 50 $\Omega$ (Internally matched) |
| Package Dimensions | $4.3 \text{ mm} \times 6.95 \text{ mm} \times 0.75 \text{ mm}$ |
| Pin Configuration | 40-pad MCM (Multi-Chip Module) |
| Operating Voltage ($V_{CC}$) | Typically $3.2\text{ V}$ to $4.2\text{ V}$ (Battery or Buck DC/DC) |
| Modulation Support | GMSK, 8-PSK, QPSK, 16QAM (up to 20 MHz bandwidth) |
| Efficiency Tech | Optimized for Average Power Tracking (APT) systems |
Architecture and Working Principle
The 77656-11 is designed with a hybrid architecture that separates the signal paths to ensure maximum efficiency for different network types.
1. Hybrid Signal Paths
The IC contains separate blocks for GSM 800/900 and DCS 1800/PCS 1900. For higher-speed data, it features dedicated WCDMA and LTE blocks categorized into “Low Band” and “High Band” sections. This separation allows the phone to switch off unused parts of the IC, significantly saving battery life.
2. MIPI® RFFE Control
Modern smartphones require the CPU to change power levels and frequency bands in microseconds. The 77656-11 uses the MIPI® Radio Frequency Front End (RFFE) serial interface. This digital control allows the phone’s software to fine-tune bias currents, optimizing the balance between signal “Linearity” (clarity) and “Efficiency” (battery consumption).
3. Integrated Matching
One of the reasons this IC is so popular in slim phones is its internal matching. Both RF input and output ports are matched to 50 $\Omega$. This eliminates the need for numerous external inductors and capacitors on the phone’s motherboard, saving precious PCB space.
Key Features for Repair & Engineering
2.5G (GSM/EDGE) Capabilities
-
Supports EGPRS Class 12 multi-slot operation.
-
Four RF power control levels managed via the RFFE interface.
-
Linear PA architecture specifically optimized for 8-PSK (EDGE) modulation.
3G/4G (WCDMA/LTE) Capabilities
-
WCDMA: Supports HSDPA, HSUPA, and HSPA+ across global bands.
-
LTE: Meets strict spectral linearity requirements for 4G, supporting various Resource Block (RB) allocations.
-
Carrier Aggregation: Specifically designed to handle LTE Downlink Carrier Aggregation with very low harmonic interference.
Power Management
The IC is optimized for Average Power Tracking (APT). In an APT system, the supply voltage to the PA is adjusted dynamically to match the power level required for transmission. This prevents the IC from wasting energy as heat when the phone is close to a cell tower.77656-11 Original Mobile Phone IC
Troubleshooting in Mobile Repair
Technicians frequently encounter the 77656-11 in high-end devices like the Samsung Galaxy S9, Note 8, and J6. Common failure symptoms include:
-
No Service / Searching: If the IC fails, the phone cannot amplify the signal to reach the tower. 77656-11 Original Mobile Phone IC
-
Signal Dropping: A “weak” PA might work near a tower but fail as the user moves away. 77656-11 Original Mobile Phone IC
-
High Battery Drain: A short circuit within the $V_{CC}$ stages of the 77656-11 can cause the phone to get hot and drain the battery even when not in use. 77656-11 Original Mobile Phone IC
-
Network Specific Failure: Because it has separate paths, a phone might work on 2G (calling) but fail to connect to 4G (data) if one specific internal block is damaged. 77656-11 Original Mobile Phone IC
Note for Technicians: When replacing this IC, it is a BGA (Ball Grid Array) component. Use high-quality flux and a temperature-controlled hot air station set between 330°C and 350°C to avoid damaging the internal GaAs (Gallium Arsenide) die. 77656-11 Original Mobile Phone IC
