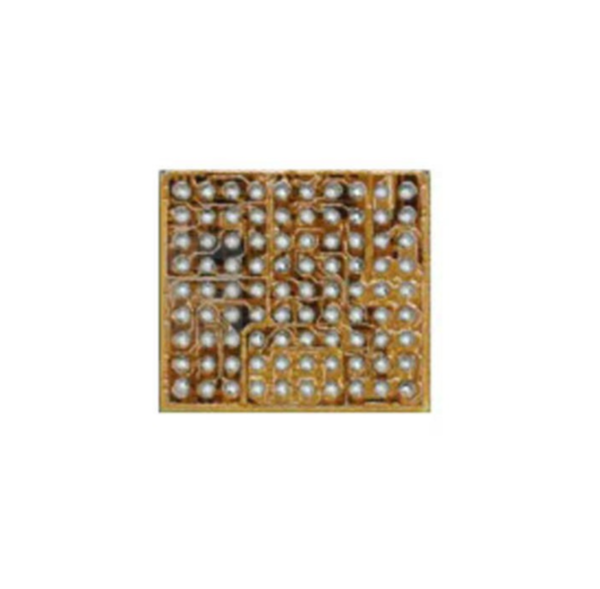

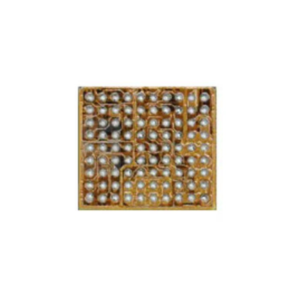

77729 Mobile Phone IC
High-Quality Mobile Phone IC for Advanced Functionality
The 77729 Mobile Phone IC is designed to enhance the performance and reliability of your mobile devices. Whether you’re upgrading or repairing, this compact and efficient IC ensures seamless functionality and long-lasting durability.
Compact Design with Superior Efficiency
Engineered for excellence, the 77729 Mobile Phone IC fits perfectly in the intricate architecture of modern smartphones. Its compact size doesn’t compromise on delivering top-notch efficiency, supporting smooth operation for your device.
Broad Compatibility and Easy Integration
Compatible with a wide range of mobile phone models, the 77729 Mobile Phone IC offers great versatility. Its easy-to-integrate design makes it an ideal choice for professionals and hobbyists looking for a dependable electronic component.
The 77729 IC (often referred to in the repair industry as the MAX77729 or MAX77729X) is a highly integrated Power Management Integrated Circuit (PMIC) or specialized RF Front-End (RFFE) Power Amplifier depending on the specific hardware revision. In modern mobile devices, particularly the iPhone 12 through 15 series and high-end Samsung Galaxy models, it serves as a critical hub for power distribution and battery charging regulation.
Below are the comprehensive specifications and technical details for this component.
77729 IC Technical Specifications
The following table outlines the core electrical and physical parameters of the 77729 series ICs used in flagship smartphones.
| Feature | Specification Details |
| Component Name | MAX77729 / MAX77729X |
| Primary Function | Power Management (PMIC) / Power Delivery (PD) |
| Secondary Function | Battery Charging Control & Voltage Regulation |
| Package Type | WLP-48 (Wafer-Level Package, 48-ball) |
| Input Voltage Range ($V_{IN}$) | $1.0V$ to $6.0V$ (supports Lithium-Ion battery levels) |
| Output Rails | Multiple (VDD_MAIN, VDD_CORE, PMU_BUCK) |
| Dissipation Power | $0.6W$ (Typical) |
| Operating Temperature | $0^\circ C$ to $+85^\circ C$ (Functional up to $125^\circ C$ for safety) |
| Mounting Style | SMD/SMT (Surface Mount Technology) |
| Communication Protocol | I2C / RFFE (Radio Frequency Front End) Interface |
| Key Safety Features | Overcurrent Protection (OCP), Thermal Shutdown, UVLO |
Key Roles in Mobile Architecture
The 77729 IC is not a “general-purpose” chip; it is engineered to handle high-speed switching and precise voltage stepping required by modern processors. 77729 Mobile Phone IC
1. Power Distribution (Buck Converters)
It converts the raw battery voltage (typically $3.8V$ to $4.2V$) into the very low, stable voltages required by the CPU and Memory. For example, it might step down voltage to $0.8V$ or $1.1V$ for the processor core. 77729 Mobile Phone IC
2. Battery Management
The IC manages the Trickle Charge and Fast Charge phases. It monitors the battery’s health and prevents overcharging. If the IC fails, the phone may show a “Battery 0%” error or fail to recognize the charger entirely.
3. Thermal Regulation
Modern smartphones generate significant heat. The 77729 contains internal sensors that monitor temperature. If the board becomes too hot during intensive tasks (like 4K recording), the IC can throttle power to prevent permanent damage to the logic board.
Device Compatibility List
The 77729 (and its variant 77729X) is found in several high-performance mobile devices:
-
Apple: iPhone 12, 13, 14, and 15 series (Pro and Pro Max models).
-
Samsung: Galaxy S21, S22, and S23 Ultra series; also found in select A-series like the A107.
-
Google: Pixel 6 Pro and newer iterations.
-
Xiaomi/Oppo: Various flagship models utilizing high-speed charging protocols.
Common Failure Symptoms & Diagnosis
When this IC malfunctions, the device typically exhibits specific “Power Fail” behaviors. Technicians use these signs to differentiate between a bad battery and a faulty 77729 chip.
Failure Indicators
-
The “80% Halt”: Charging stops exactly at 80% regardless of the power source. This indicates a failure in the IC’s internal comparator logic.
-
Sudden Shutdowns: The phone shuts off randomly when the battery is above 20%. This happens because the IC can no longer maintain the “VDD_MAIN” rail under load.
-
Localized Heat: Excessive heat originating from the bottom-right or center-right of the motherboard (the typical location of the PMIC).
-
No Boot/Dead Phone: If the main buck converter inside the 77729 fails, the CPU receives no power, resulting in a completely unresponsive device.
Repair Guidelines
Replacing this IC requires advanced microsoldering skills. It is a BGA (Ball Grid Array) component, meaning the “pins” are actually tiny solder balls underneath the chip.
Note: Technicians typically set their hot air stations to approximately $230^\circ C$ with low airflow to remove the chip without “bridge soldering” (accidentally connecting) nearby tiny capacitors.
Summary of Importance
The 77729 IC is the “heart” of the phone’s power system. While the CPU acts as the brain, it cannot function without the steady, regulated “blood flow” of electricity managed by this chip. Its move toward WLP-48 packaging highlights the industry’s shift toward ultra-compact, high-efficiency components that can handle the massive power demands of 5G and high-refresh-rate displays.
