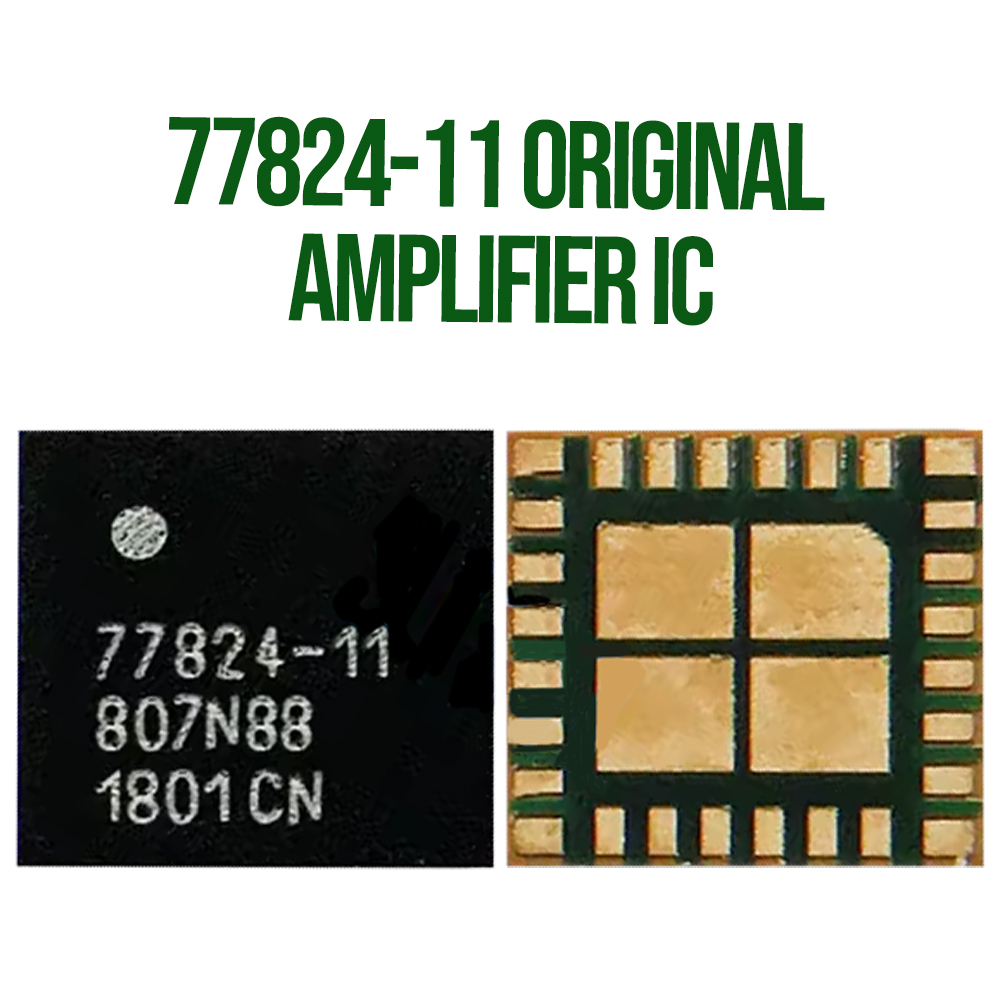

77824-11 Mobile Phone IC
Optimize Your Mobile Device Performance
The 77824-11 Mobile Phone IC is designed to deliver unparalleled efficiency for your smartphone. This advanced integrated circuit ensures optimal functionality, boosting your device’s processing speed and overall performance. 77824-11 Mobile Phone IC
Reliable and Durable Technology
Manufactured with high-quality materials, the 77824-11 IC offers superior durability and longevity. Its robust construction makes it a reliable solution for modern mobile devices. 77824-11 Mobile Phone IC
Seamless Compatibility
The 77824-11 IC suits various mobile phone models, ensuring seamless adaptability and enhanced device operation. Experience top-notch performance and power management with this essential mobile component. 77824-11 Mobile Phone IC
The SKY77824-11 is a high-performance Power Amplifier Module (PAM) developed by Skyworks Solutions Inc. specifically for mobile devices. It belongs to the “SkyLiTE™” family, designed to provide a compact and efficient solution for 4G LTE connectivity, supporting both Frequency Division Duplex (FDD) and Time Division Duplex (TDD) modes. 77824-11 Mobile Phone IC
In modern smartphones, such as the OnePlus 3 and Vivo Xplay6, this IC plays a critical role in the Radio Frequency (RF) front-end, ensuring that the signal transmitted from the phone is powerful enough to reach the cellular base station without draining the battery excessively. 77824-11 Mobile Phone IC
77824-11 Technical Specifications
| Feature | Specification Details |
| Manufacturer | Skyworks Solutions, Inc. |
| Product Name | SkyLiTE™ Power Amplifier Module (PAM) |
| Primary Technology | GaAs (Gallium Arsenide) InGaP HBT |
| Supported Networks | 4G LTE (FDD and TDD), AXGP |
| Frequency Range | 2.3 GHz to 2.69 GHz (Broadband) |
| FDD LTE Bands | Band 7, Band 30 |
| TDD LTE Bands | Bands 38, 40, 41 |
| Control Interface | MIPI® RFFE (Radio Frequency Front End) |
| Impedance | RF I/O internally matched to 50 $\Omega$ |
| Package Type | 28-pad Surface Mount (SMT) Module |
| Package Dimensions | $4.0 \times 3.65 \times 0.8$ mm (Max) |
| Power Tracking | Optimized for Average Power Tracking (APT) |
Detailed Functional Breakdown
1. Architectural Design
The SKY77824-11 is a Multimode Multiband (MMMB) module. It integrates several critical RF components into a single tiny chip:
-
PA MMIC: The Gallium Arsenide (GaAs) Microwave Monolithic Integrated Circuit contains the active amplification stages.
-
SOI Switch: A Silicon-on-Insulator switch follows the amplifier to route signals between different bands (e.g., switching between Band 7 or TDD filters).
-
Integrated Matching: The input and interstage matching circuits are on-chip, reducing the need for external components and simplifying PCB design for phone manufacturers.
2. Supported Frequency Bands
The IC is versatile, covering a significant portion of the high-frequency 4G spectrum:
-
FDD LTE (B7/B30): Common in global roaming and high-capacity urban networks.
-
TDD LTE (B38/40/41): Frequently used in Asian markets (like India and China) for high-speed data.
-
Carrier Aggregation (CA): It supports Uplink Carrier Aggregation for Bands 40 and 41, allowing the phone to combine multiple channels for faster upload speeds.
3. Efficiency and Power Management
Because the PA is one of the most power-hungry components in a phone, the 77824-11 is optimized for Average Power Tracking (APT).
-
APT Support: This allows the system to adjust the supply voltage ($V_{CC}$) based on the required output power, significantly reducing heat and extending battery life.
-
MIPI RFFE Interface: The module is fully programmable via the MIPI interface, allowing the phone’s processor to control bias and switching states in real-time with high precision.
Usage in Repair and Manufacturing
In the mobile repair industry, the “77824-11” is often identified as the Network PA IC or 4G Signal IC. If a phone shows “No Service” or has very weak 4G reception while 2G/3G still works, this IC is a primary suspect.
-
Mounting: It is a BGA (Ball Grid Array) style component with 28 pads, requiring precision soldering with a hot air rework station.
-
Compatibility: While it is widely used in Snapdragon-based devices, it must be replaced with the exact part number (77824-11) to ensure band compatibility and MIPI communication.
Note: Proper ESD (Electrostatic Discharge) precautions are vital when handling this IC, as RF amplifiers are highly sensitive to static electricity.
