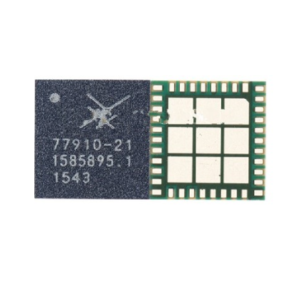

77910-21 Mobile Phone IC
Enhance Device Efficiency with 77910-21 IC
Designed for seamless integration, the 77910-21 Mobile Phone IC is a smart solution for enhancing your device’s performance. Whether used in smartphones or other mobile technologies, this IC ensures consistent and reliable operation. 77910-21 Mobile Phone IC
Advanced Engineering for Optimized Performance
The 77910-21 IC is engineered with cutting-edge technology to deliver superior efficiency and durability. Its compact design allows for easy incorporation into your mobile device, enabling smooth functionality and energy savings. 77910-21 Mobile Phone IC
Precision and Reliability You Can Trust
Built with precision and quality materials, the 77910-21 IC is crafted for longevity and impeccable performance. It’s a reliable component for both high-end and everyday mobile phones, offering exceptional value for manufacturers and tech enthusiasts alike. 77910-21 Mobile Phone IC
The 77910-21 is a high-performance Radio Frequency (RF) Power Amplifier (PA) module primarily designed for mobile handsets. Manufactured by Skyworks Solutions (often designated as SKY77910-21), this IC is a critical component in the RF front-end circuitry, responsible for boosting signal strength to ensure stable cellular connectivity across various network bands. 77910-21 Mobile Phone IC
It is a Multi-mode Multi-band (MMMB) power amplifier, meaning it can handle different generations of cellular technology (2G, 3G, and 4G LTE) within a single compact package. 77910-21 Mobile Phone IC
77910-21 IC Technical Specifications
| Parameter | Specification Details |
| Manufacturer | Skyworks Solutions Inc. |
| Part Number | SKY77910-21 |
| IC Type | RF Power Amplifier (PA) / Front-End Module (FEM) |
| Network Support | 2G (GSM/EDGE), 3G (WCDMA/HSPA), 4G (FDD-LTE / TDD-LTE) |
| Frequency Range | Multiband (Low Band, Mid Band, and High Band support) |
| Supply Voltage ($V_{CC}$) | 3.2V to 4.5V (Typical 3.4V – 3.8V for mobile batteries) |
| Control Interface | MIPI® RFFE (Radio Frequency Front End) |
| Input/Output Impedance | 50 $\Omega$ (Internally matched) |
| Efficiency (PAE) | High Power Added Efficiency (typically >40% in 3G/4G modes) |
| Package Type | MCM (Multi-Chip Module) / SMT Package |
| Package Dimensions | Approx. 4.0 mm x 6.8 mm x 0.8 mm |
| Pin/Pad Count | Variable (Commonly 24 to 42 pads depending on specific revision) |
| Operating Temperature | -30°C to +85°C |
Core Features and Functionality
The 77910-21 is engineered to balance high output power with low power consumption, which is vital for extending smartphone battery life. 77910-21 Mobile Phone IC
-
Integrated Switching: The module includes internal RF switches to toggle between different frequency bands and modes (Transmit/Receive). 77910-21 Mobile Phone IC
-
MIPI RFFE Control: It utilizes the industry-standard MIPI interface for digital control. This allows the phone’s modem to precisely adjust the power levels and bias of the amplifier in real-time. 77910-21 Mobile Phone IC
-
Envelope Tracking (ET) Support: It is designed to work with Average Power Tracking (APT) or Envelope Tracking DC-DC converters to maximize efficiency at various power levels. 77910-21 Mobile Phone IC
-
Ruggedness: Built-in protection against over-voltage and over-current, ensuring the IC survives signal reflections (high VSWR) that occur during poor antenna reception. 77910-21 Mobile Phone IC
Common Applications and Usage
The 77910-21 is widely utilized in mid-range and budget-friendly smartphones from major manufacturers. It is often paired with Qualcomm Snapdragon or MediaTek chipsets.
Notable Devices Using this IC:
-
Samsung Galaxy Series: Used in various regional variants of the Galaxy Note and A-series.
-
Asus Zenfone: Found in the Zenfone Max and earlier models.
-
Meizu & LeEco: Common in Chinese domestic and global export models like the Meizu MX5.
-
Repair Context: This IC is a “frequent flier” in mobile repair shops. If a phone shows “No Service,” “Searching,” or weak signal strength despite a valid SIM, the 77910-21 is often the prime suspect for replacement.
Pin Functionality Overview
While the exact pinout can vary by the specific board layout (PCB), the 77910-21 typically follows this functional grouping:
-
RF Inputs: Receives the low-power signal from the Transceiver (WTR or MT series ICs).
-
RF Outputs: Delivers the amplified signal to the Antenna Switch or Duplexers.
-
$V_{CC}$ / $V_{BATT}$: Main power supply pins connected to the battery or a Power Management IC (PMIC).
-
SCLK / SDATA: The MIPI clock and data lines for communication with the CPU.
-
GND: Thermal and electrical ground pads located primarily in the center of the IC.
Comparison with Similar ICs
| Feature | 77910-21 | 77643-21 | 77912-21 |
| Primary Mode | MMMB (General) | LTE Optimized | High-Band / TDD |
| Band Range | Wide (Low/Mid/High) | Mid/High | High Band (B34/B39) |
| Integration | Standard PA | SkyLiTE™ Series | Tx/Rx FEM |
Troubleshooting Signal Issues
If you are a technician testing this IC, check for the following:
-
Short Circuits: Measure the resistance on the $V_{CC}$ line; a short to ground usually indicates a blown internal capacitor or transistor within the IC.
-
Voltage Rails: Ensure the PMIC is delivering the correct voltage (approx. 3.4V) to the IC during a call or network search.
-
Heat: Excessive heat from this area of the motherboard immediately after powering on usually indicates an internal failure of the 77910-21.
