77912-21 Mobile Phone IC
Unlock Reliable Mobile Performance
The 77912-21 Mobile Phone IC is engineered to power your mobile devices with precision and reliability. Designed for efficiency and compatibility, this component ensures seamless integration into modern smartphones. 77912-21 Mobile Phone IC
State-of-the-Art Technology
Equipped with cutting-edge technology, the 77912-21 IC is ideal for optimizing battery life, enhancing processing speed, and supporting advanced mobile functions. Its high-performance design caters to the demands of today’s mobile connectivity. 77912-21 Mobile Phone IC
Versatile and Durable
Whether for upgrading existing devices or supporting new innovations, this Mobile Phone IC is built for long-term durability and operational excellence. Its adaptable structure ensures peak functionality in diverse applications. 77912-21 Mobile Phone IC

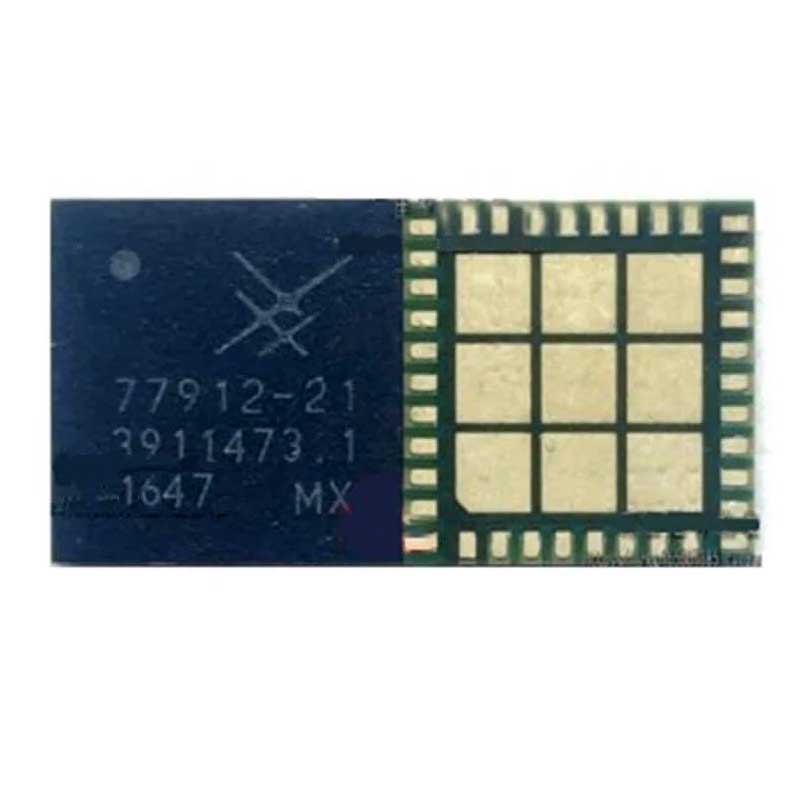

The SKY77912-21 is a high-performance Tx-Rx Front-End Module (FEM) manufactured by Skyworks Solutions. It is primarily used in 4G/LTE smartphones (notably Samsung and Xiaomi devices) to manage the transmission and reception of cellular signals across multiple frequency bands. 77912-21 Mobile Phone IC
This IC integrates power amplifiers (PA), switching circuitry, and control logic into a single, compact package, significantly reducing the complexity of the phone’s PCB (Printed Circuit Board).
Technical Specifications: SKY77912-21
| Parameter | Specification Details |
| Manufacturer | Skyworks Solutions, Inc. |
| Component Type | Tx-Rx Front-End Module (FEM) / Power Amplifier (PA) |
| Frequency Support | Quad-band GSM, GPRS, EDGE, TD-SCDMA (B34/39), TDD LTE (B39) |
| Package Dimensions | 5.5 mm x 5.3 mm x 0.8 mm (Max) |
| Configuration | 38-pad Land Grid Array (LGA) / Surface Mount (SMT) |
| Interface Control | MIPI® RFFE (Radio Frequency Front End) Logic |
| Internal Impedance | 50 Ohms (Internally matched on all RF ports) |
| Operating Voltage | Supports APT (Average Power Tracking) and Buck DC-DC supplies |
| Transmit Harmonics | Below –40 dBm |
| Switch Ports | 10 Low-insertion loss/High-linearity TRx ports |
| Technology | GaAs (Gallium Arsenide) HBT for PA blocks; CMOS for controller |
Key Features and Capabilities
1. Multi-Band & Multi-Standard Support
The 77912-21 is designed for global connectivity. It handles:
-
Low Band (LB): GSM850 and GSM900 bands. 77912-21 Mobile Phone IC
-
High Band (HB): DCS1800, PCS1900, TD-SCDMA Bands 34/39, and TDD LTE Band 39. 77912-21 Mobile Phone IC
-
Data Standards: GPRS multi-slot Class 12 and Linear EDGE operation.
2. Integrated Architecture
Unlike older discrete designs, this module includes:
-
HBT Power Amplifiers: High-efficiency GaAs Heterojunction Bipolar Transistors.
-
Directional Coupler: Integrated broadband coupler for power monitoring.
-
Switch Matrix: A 10-port switch that routes signals between the antenna and the internal receive/transmit paths.
-
Coexistence Filter: Includes a notch filter to prevent interference with WiFi signals (WiFi coexistence).
3. Advanced Power Control
The IC supports two primary power control paradigms:
-
Linear GMSK: The transmitted envelope is a linear function of the RF input, where biasing is controlled via MIPI.
-
VRAMP-based GMSK: Uses an analog VRAMP signal to control the envelope, reducing sensitivity to temperature and voltage variations.
4. Ruggedness and Protection
-
ESD Protection: Built-in IEC-compliant antenna ESD protection.
-
Safe Operation: Features over-voltage and over-current protection to prevent damage during battery fluctuations or antenna mismatch.
Application and Common Use Cases
In the mobile repair industry, the 77912-21 is often referred to as the “Network IC” or “PA IC.” If a phone shows “No Service,” “Emergency Calls Only,” or has very weak signal strength despite a valid SIM, this component is frequently the culprit.
-
Supported Devices: Common in mid-range smartphones like the Samsung Galaxy J series (J710, J510) and Xiaomi Redmi series.
-
Installation: Requires professional SMD (Surface Mount Device) reworking tools, specifically a hot air station and high-quality flux, as the 38-pad underside requires precise alignment.
Summary of Operation
The SKY77912-21 acts as the “brawn” of the RF system. When the phone needs to send data, the transceiver sends a low-power signal to this IC; the 77912-21 amplifies it using its GaAs HBT blocks and switches it to the antenna. Conversely, when receiving, it routes the incoming signal from the antenna to the appropriate SAW filters with minimal signal loss.
