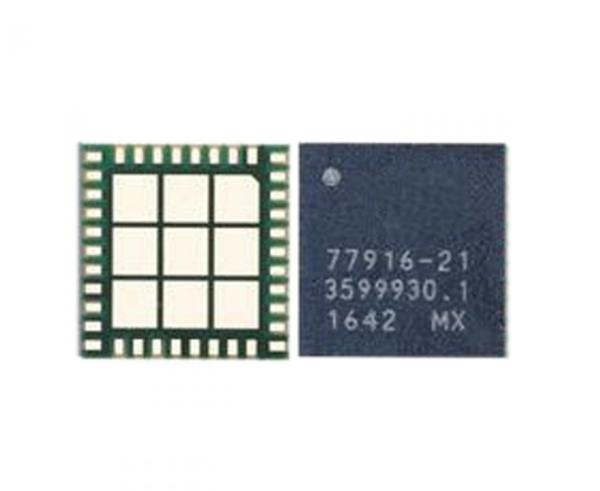

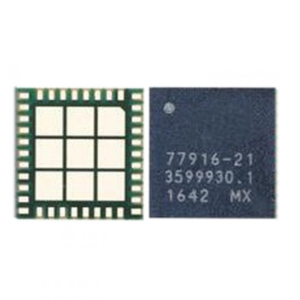

77916-21 Mobile Phone IC
Product Overview
The 77916-21 Mobile Phone IC is designed to enhance the functionality and reliability of modern mobile devices. Built with precision engineering, it serves as a cornerstone for smooth performance across a wide range of hardware applications. Whether you’re upgrading your device or working on advanced electronic projects, this IC offers dependable efficiency and versatility to meet your needs. Experience optimized processing and connectivity capabilities bundled in one sophisticated package. 77916-21 Mobile Phone IC
Key Features and Benefits
This Mobile Phone IC brings a wide array of features that cater to both developers and end-users. With its compact design, the 77916-21 integrates seamlessly into mobile devices, delivering improved power management and faster signal processing.
Notable benefits include:
- High-speed signal transmission ensuring lag-free operations.
- Efficient power consumption for extended battery life.
- Durable construction to withstand demanding usage scenarios.
- Compatibility with various device models and setups.
Its cutting-edge technology reduces heat generation, making it ideal for keeping devices cool even during intensive tasks.
Why Choose 77916-21 Mobile Phone IC?
The 77916-21 IC stands out among competitors by offering superior performance and reliability. Whether you’re a tech enthusiast, developer, or manufacturer, its adaptability across diverse applications makes it an excellent choice. Each IC is rigorously tested to ensure consistency and satisfaction. By incorporating this into your devices, you’ll benefit from faster response times, reduced energy consumption, and enhanced durability.
Upgrade your mobile technology today with the 77916-21, and optimize your devices for unparalleled performance and efficiency.
The 77916-21 (officially known as the SKY77916-21) is a highly integrated Transmit/Receive (Tx-Rx) Front-End Module (FEM) manufactured by Skyworks Solutions. This IC is a critical “multi-mode” component designed for the Radio Frequency (RF) subsystem of mobile phones, specifically bridging the gap between the phone’s transceiver and the antenna. 77916-21 Mobile Phone IC
Technical Architecture and Integration
The SKY77916-21 is part of the SkyLiTE™ family, which aims to provide a complete “VCO-to-Antenna” solution. It is housed in a compact 5.5 x 5.3 x 0.75 mm Multi-Chip Module (MCM) package with a 38-pad configuration. Internally, it integrates several complex technologies: 77916-21 Mobile Phone IC
-
Power Amplifiers (PA): It utilizes Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) technology. This material allows for higher efficiency and better signal quality at high frequencies compared to standard silicon. 77916-21 Mobile Phone IC
-
14-Port Antenna Switch: The module features 14 linear transmit/receive (TRx) ports, allowing the device to switch seamlessly between various cellular bands without signal interference.
-
CMOS Controller: A built-in controller manages the digital logic using the MIPI RFFE (Radio Frequency Front End) interface. This allows the phone’s main processor to digitally adjust gain, mode, and power in real-time.
Key Specifications
| Feature | Details |
| Supported Networks | Quad-band GSM/GPRS/EDGE, Dual-band TD-SCDMA, TDD LTE |
| Bands | GSM850/900, DCS1800, PCS1900, TD-SCDMA B34/39, TDD LTE B39 |
| Efficiency (PAE) | 40% (GSM850/900); 31–33% (DCS/PCS) |
| Impedance | All RF ports matched to 50 $\Omega$ |
| Control Interface | MIPI RFFE with linear or VRAMP power control |
| Protection | Built-in PA over-voltage, over-current, and antenna ESD protection |
Core Functionality
The IC serves two primary roles: Amplification and Switching. During transmission, it takes the low-power signal from the phone’s transceiver and boosts it to a level high enough to reach a cell tower. Its high Power Added Efficiency (PAE) is crucial because it ensures that the maximum amount of battery power is converted into signal strength rather than wasted as heat.
During reception, its high-linearity TRx switches route the incoming signal from the antenna to the correct receiver path with minimal loss. This “switch-through” capability is essential for supporting modern carrier configurations and maintaining a stable data connection.
Failure Symptoms and Repair
In the mobile repair industry, the 77916-21 is often identified as the “Network IC” or “PA IC.” Because it is connected directly to the VBATT (main battery line), it is highly susceptible to electrical stress. Common signs of a faulty 77916-21 include:
-
Searching / No Service: The phone cannot broadcast its signal.
-
High Battery Drain: A partial short inside the IC causes excessive heat and power consumption even when the phone is idle.
-
Dead Phone: A total short-circuit on the VBATT line within the IC can prevent the device from powering on entirely.
Replacing this IC requires professional microsoldering equipment. Since it is an MCM (Multi-Chip Module), technicians must be careful with heat levels to avoid damaging the internal layers of the substrate.
