77916-21 Original Mobile Phone IC
High-Quality Mobile Phone IC for Optimal Performance
The 77916-21 Original Mobile Phone IC is designed to deliver exceptional performance and reliability for your mobile devices. Engineered with precision, this IC ensures seamless integration and smooth functionality, providing a dependable solution for your phone’s needs. 77916-21 Original Mobile Phone IC
Durable and Compatible Technology
Crafted using premium-grade components, the 77916-21 IC is built to last and withstand heavy usage. With its broad compatibility, it supports a range of device models, making it a versatile choice for both repairs and upgrades. 77916-21 Original Mobile Phone IC
Efficient Operation and Enhanced Performance
This mobile phone IC is optimized for energy efficiency and robust functionality. It helps enhance your device’s overall performance, ensuring reliable operation without compromises. Perfect for technicians, DIY repair enthusiasts, and businesses looking for trustworthy components.

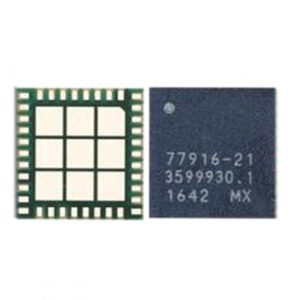

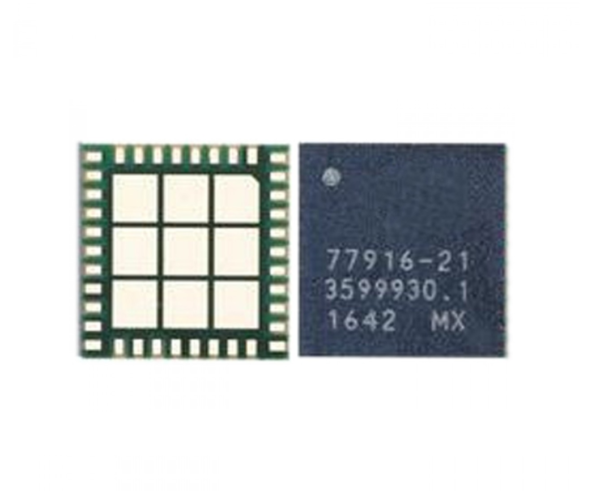

The SKY77916-21 (often referred to simply as 77916-21) is a high-performance Transmit/Receive Front-End Module (FEM) manufactured by Skyworks Solutions. It is a critical component in the RF (Radio Frequency) section of modern smartphones, acting as a power amplifier and switch for various cellular network bands including 2G, 3G, and 4G LTE. 77916-21 Original Mobile Phone IC
Below are the detailed specifications and technical insights for this IC. 77916-21 Original Mobile Phone IC
1. Technical Specifications Table
| Feature | Specification Details |
| Manufacturer | Skyworks Solutions, Inc. |
| Model Number | SKY77916-21 |
| Component Type | RF Front-End Module (FEM) / Power Amplifier (PA) |
| Frequency Support | Quad-band GSM, GPRS, EDGE, TD-SCDMA, TDD LTE |
| LTE Band Support | Bands 38, 39, 40, and 41 (Global LTE Support) |
| Control Interface | MIPI® RFFE (Radio Frequency Front End) |
| Package Type | 38-pad MCM (Multi-Chip Module) |
| Package Dimensions | $5.5\text{ mm} \times 5.3\text{ mm} \times 0.75\text{ mm}$ |
| Input Impedance | 50 $\Omega$ (Internally Matched) |
| Efficiency (GSM) | ~40% (GSM850/900) |
| Output Protection | Integrated Over-Voltage & Current Protection |
| ESD Protection | IEC-compliant Antenna ESD Protection |
2. Functional Overview and Internal Architecture
The SKY77916-21 is designed to simplify the RF design of a smartphone by consolidating multiple functions into a single, low-profile package. It handles the signal from the transceiver (VCO) all the way to the antenna.
The Power Amplifier (PA) Blocks
The IC contains separate amplifier blocks for different frequency ranges:
-
Low Band (LB): Optimized for GSM850 and GSM900 bands. 77916-21 Original Mobile Phone IC
-
High Band (HB): Supports DCS, PCS, TD-SCDMA (Bands 34/39), and TDD LTE (Band 39). 77916-21 Original Mobile Phone IC
-
Fabrication: These PA blocks are made using Gallium Arsenide (GaAs) Heterojunction Bipolar Transistors (HBT), which offer superior efficiency and power handling compared to standard silicon. 77916-21 Original Mobile Phone IC
Switching and Routing
It features 14 Low-Loss TRx Switch Ports. These ports allow the phone to switch between transmitting and receiving signals across different network technologies (GSM vs. LTE) and different frequency bands without signal degradation.
3. Advanced Features
MIPI RFFE Control
Unlike older RF chips that used multiple GPIO pins for control, the 77916-21 uses the MIPI RFFE standard. This allows the phone’s main processor to control band selection, bias levels, and power modes using a digital serial bus, significantly reducing the number of traces needed on the PCB.
GMSK Power Control
The IC supports two types of power control for GSM signals:
-
Linear Mode: The output is a direct linear function of the input.
-
VRAMP-based Mode: Uses an analog ramp voltage to control the envelope, which helps maintain signal integrity across varying temperatures and battery voltages.
WiFi Coexistence
Modern phones have antennas very close to each other. The 77916-21 includes an integrated noise suppression notch filter specifically designed to prevent the cellular signal from interfering with the phone’s WiFi or Bluetooth performance.
4. Why the “-21” Version Matters
In the mobile repair industry, you may see versions like -11 or -20. The 77916-21 is the most advanced revision.
-
Band 41 Support: Unlike the
-11version, the-21fully supports Band 41, which is essential for high-speed 4G in regions like the USA, China, and India. -
Better Linearity: It offers reduced harmonic distortion, leading to clearer VoLTE (Voice over LTE) calls and better data throughput in weak signal areas.
5. Troubleshooting and Repair Symptoms
Technicians usually replace this IC when a phone displays specific “Network” or “Signal” issues. Because this IC is responsible for the final “push” of the signal to the antenna, common failure symptoms include:
-
No Service / No Network: The phone shows “Emergency Calls Only” or “Searching” even with a valid SIM card.
-
Signal Dropping: The signal bar shows full strength but drops to zero the moment you try to place a call (this happens when the PA fails to “fire” during transmission).
-
High Battery Drain: If the IC is partially shorted, it will consume excessive current even when the phone is in standby, causing the RF area of the motherboard to get hot.
-
Weak 4G LTE: If the high-band block is damaged, the phone might work on 2G (Edge) but fail to connect to 4G/LTE.
Repair Tip: Since this is a BGA (Ball Grid Array) chip with a center thermal pad, it requires a hot air rework station at approximately $350^\circ\text{C}$ to $380^\circ\text{C}$ for successful replacement.
6. Compatibility and Usage
This IC is widely used in mid-range and flagship-killer smartphones from Xiaomi, Huawei, Samsung, and Meizu. Its versatility across quad-band GSM and multi-band LTE makes it a “universal” solution for global phone variants.
