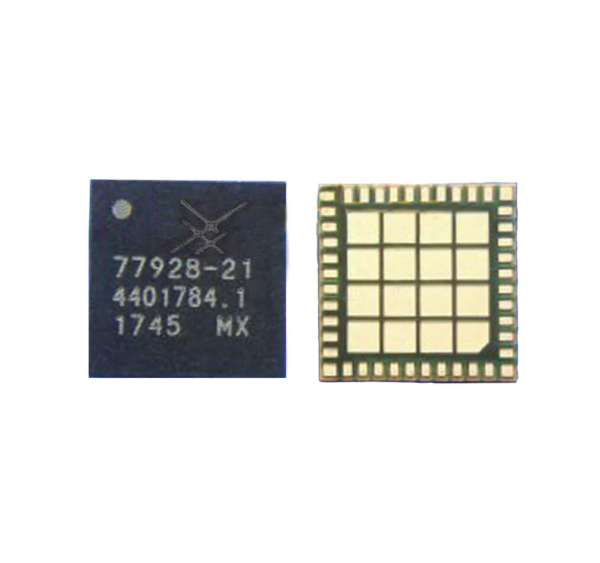

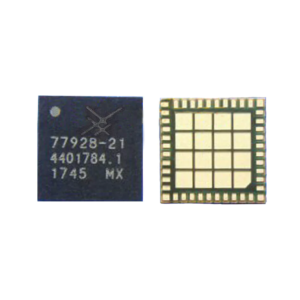

77928-21 Original Mobile Phone IC
Exceptional Performance for Your Device
The 77928-21 Original Mobile Phone IC is designed to deliver unparalleled reliability and efficiency. Whether you’re looking to replace a faulty component or enhance your device’s operations, this IC ensures superior performance and durability. 77928-21 Original Mobile Phone IC
Precision Engineered for Compatibility
Crafted with precision, the 77928-21 IC is compatible with a wide range of mobile phone models. Its seamless integration guarantees optimal functionality without any compromise in performance. 77928-21 Original Mobile Phone IC
Quality You Can Trust
Manufactured to the highest standards, this Original Mobile Phone IC promises consistent results. Perfect for technicians, repair professionals, or DIY enthusiasts, it is a long-lasting solution for all your mobile device needs. 77928-21 Original Mobile Phone IC
The SKY77928-11 (often referred to in the repair industry simply as the 77928-11) is a high-performance SkyLiTE™ Transmit-Receive Front-End Module (FEM). Manufactured by Skyworks Solutions, it is a critical component in the radio frequency (RF) section of modern 2G, 3G, and 4G LTE smartphones. It primarily functions as a Power Amplifier (PA) and an antenna switch, ensuring that the phone can transmit and receive signals across a wide variety of global network bands. 77928-21 Original Mobile Phone IC
Technical Specifications Table
| Specification Category | Details |
| Manufacturer | Skyworks Solutions, Inc. |
| Model Number | SKY77928-11 (77928-11) |
| IC Function | RF Front-End Module (Power Amplifier + Switch) |
| Technology | GaAs HBT (PA blocks) & CMOS (Controller) |
| Supported Standards | GSM, GPRS, EDGE, TD-SCDMA, TDD-LTE |
| Operating Frequency | 700 MHz to 2700 MHz |
| TRx Switch Ports | 16 Linear Transmit/Receive Ports |
| Input Matching | Internally matched to 50 $\Omega$ |
| Control Interface | MIPI® RFFE (Radio Frequency Front End) |
| Antenna Support | Dual Antenna (Supports Carrier Aggregation) |
| Efficiency (PAE) | ~34% to 38% (Band dependent) |
| Package Type | 44-pad MCM (Multi-Chip Module) |
| Dimensions | 5.5 mm x 5.5 mm x 0.8 mm (Max) |
Detailed Technical Breakdown
1. Functional Overview
The 77928-11 is designed to be the “voice” of the mobile phone. Its main job is to take the low-power RF signal generated by the transceiver and amplify it significantly so it can reach distant cellular towers. Because it handles high power, it is often one of the largest and most power-hungry ICs on the phone’s motherboard. 77928-21 Original Mobile Phone IC
2. Multi-Band Support
The module is divided into internal “blocks” to handle different frequency ranges:
-
Low-Band (LB): Optimized for GSM850 and GSM900 bands. 77928-21 Original Mobile Phone IC
-
Mid-Band (MB): Covers DCS1800, PCS1900, and TD-SCDMA (Bands 34/39).
-
TDD LTE: Specifically supports Band 39 transmission.
3. Advanced Features
-
Carrier Aggregation (CA): The IC supports downlink inter-band carrier aggregation. This allows the phone to download data from multiple frequency bands simultaneously, significantly increasing internet speeds.
-
MIPI RFFE Control: Instead of using simple high/low logic pins, the phone’s processor talks to the 77928-11 using the MIPI RFFE protocol. This allows for precise, real-time adjustments to power levels and band selection.
-
Built-in Protection: The IC includes antenna ESD protection (IEC-compliant) and overvoltage ruggedness, which is crucial since the antenna is a common entry point for static electricity.
Troubleshooting & Repair Insights
In the mobile repair field, the 77928-11 is frequently replaced in devices like the Oppo A5, Oppo A7, and various Xiaomi/Realme models.
Common Symptoms of Failure:
-
“No Service” or “Searching”: If the power amplifier section of the IC fails, the phone cannot transmit a signal to the tower.
-
Weak Signal: If the internal switches are damaged, the phone may only show 1 bar of signal even near a tower.
-
High Battery Drain: A short-circuited 77928-11 will draw excessive current from the VCC_MAIN or VBATT rail, causing the phone to heat up near the top of the motherboard and drain the battery even when idle.
-
Network-Specific Issues: Since the IC is divided into LB and MB blocks, a phone might work on 2G (Low Band) but fail to connect to 4G (Mid/High Band) if only one internal section is blown.
Diagnosis Tips for Technicians:
-
Diode Mode Testing: Check the capacitors around the IC for shorts to ground. Specifically, look at the supply lines ($V_{BAT}$).
-
Visual Inspection: Since this IC generates heat, a failing 77928-11 may show tiny bubbles in the underfill or a slight discoloration on the top surface.
-
MIPI Bus Check: If the phone cannot detect the IC at all, it may report a “Baseband” or “Radio” error in the software settings, indicating a communication failure on the SCLK/SDATA lines.
Compatibility and Equivalents
While the 77928-11 is a specific part number, it belongs to the SkyLiTE™ family. Technicians often compare it with the 77928-21, which is a similar variant. However, it is always recommended to use the exact suffix (-11) to ensure the MIPI register maps and pin timings match the phone’s firmware perfectly.
