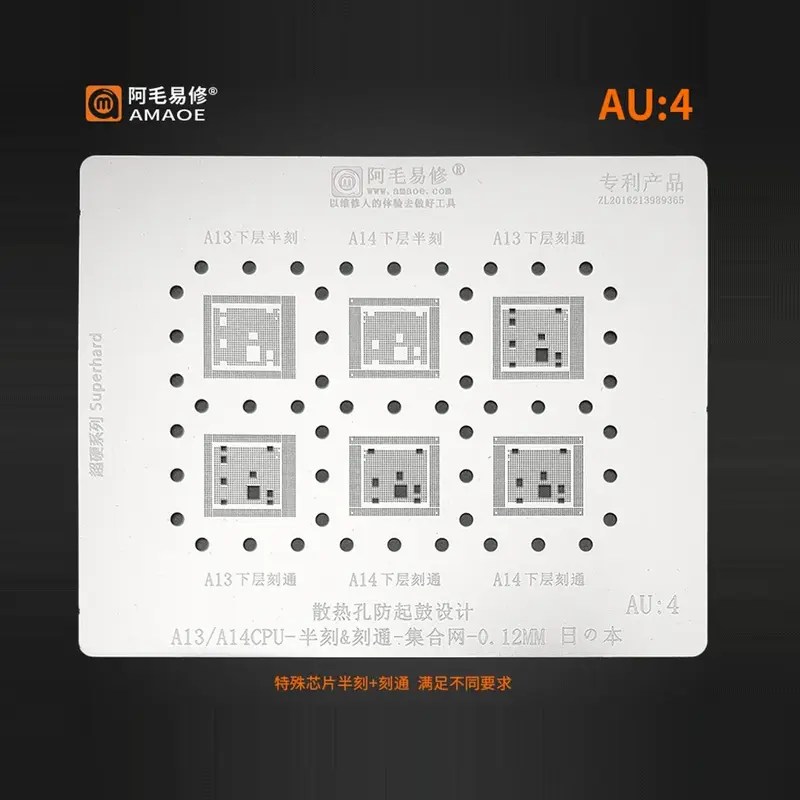

Amaoe AU4 BGA Stencil-Original
Experience unmatched precision and efficiency with the Amaoe AU4 BGA Stencil-Original, designed for tech professionals and hobbyists alike. Whether you’re repairing electronic components or soldering with utmost accuracy, this stencil ensures flawless results every time. Amaoe AU4 BGA Stencil-Original
High-Quality Materials for Longevity
Crafted from durable and heat-resistant stainless steel, the Amaoe AU4 BGA Stencil is built to withstand repeated use. Its robust design minimizes wear while ensuring perfect alignment for every repair project. Amaoe AU4 BGA Stencil-Original
Exceptional Compatibility
Engineered for versatility, this stencil is compatible with a wide range of BGA IC chips, making it an indispensable tool for technicians working across various devices. Its precision-engineered cutouts provide the perfect fit for efficient application. Amaoe AU4 BGA Stencil-Original
Why Choose Amaoe AU4?
The Amaoe AU4 BGA Stencil combines functionality and durability to meet the needs of demanding repair tasks. It’s the ideal choice for professional-grade performance, ensuring every soldering task is as seamless as possible. Upgrade your toolkit with this reliable solution today! Amaoe AU4 BGA Stencil-Original
The Amaoe AU4 BGA Stencil is a professional-grade precision tool specifically engineered for high-density reballing and repair of mobile device processors. Part of the specialized AU series from Amaoe, the AU4 is widely recognized in the micro-soldering industry for its focus on modern, high-performance chipsets, particularly the A13 and A14 Bionic CPUs found in the iPhone 11 and 12 series. Amaoe AU4 BGA Stencil-Original
Technical Specifications
The following table outlines the core mechanical and material properties of the original Amaoe AU4 stencil.
| Feature | Specification |
| Brand | Amaoe (Original) |
| Model Number | AU4 |
| Compatible Chipsets | Apple A13, A14 Bionic (CPU & RAM) |
| Material | High-Grade Japanese Imported Stainless Steel |
| Thickness | 0.12 mm |
| Aperture Type | Square Hole (Anti-Bulge Design) |
| Heat Resistance | Up to 500°C |
| Finish | Laser-cut, Burr-free Etching |
| Reusability | High (Deformation Resistant) |
Detailed Product Description
1. Precision Engineering for High-Density ICs
The Amaoe AU4 is not a “universal” stencil in the traditional sense; it is a dedicated reballing net designed to match the exact ball-grid array (BGA) layout of the A13 and A14 Bionic chips. These processors feature over 1,200 individual solder points. Even a $0.01\text{ mm}$ deviation can lead to “bridging” (solder balls merging) or “open joints” (balls failing to connect). The AU4 utilizes laser-cut technology to ensure every aperture is perfectly aligned with the chip’s pads.
2. Advanced Square-Hole Design
Unlike cheaper stencils that use round holes, the AU4 features square apertures. This design is critical for professional reballing for two reasons:
-
Ease of Release: Square holes allow the solder paste to release more cleanly from the stencil after heating, preventing the “pull-back” effect that often ruins a fresh tinning.
-
Solder Ball Uniformity: The geometry ensures that the volume of solder paste deposited is consistent across the entire chip surface.
3. Material Integrity and Thermal Stability
The stencil is manufactured from imported high-grade stainless steel specifically chosen for its thermal expansion properties. During the reballing process, technicians apply direct heat using a Hot Air Station. Lower-quality stencils often “warp” or “bulge” under high heat, causing the solder paste to leak underneath. The Amaoe AU4 is designed to remain flat at temperatures required for leaded and lead-free soldering (typically $183\text{°C}$ to $220\text{°C}$), and can withstand peaks of $500\text{°C}$ without permanent deformation. Amaoe AU4 BGA Stencil-Original
4. The 0.12 mm Thickness Standard
The thickness of $0.12\text{ mm}$ is the industry “sweet spot” for modern smartphone ICs. It provides enough solder volume to create a robust electrical connection while remaining thin enough to prevent the solder balls from becoming too large and short-circuiting against adjacent pins. This precision helps in achieving a “once-through” success rate, which is vital for protecting sensitive CPUs from excessive heat cycles. Amaoe AU4 BGA Stencil-Original
5. Dual-Layer (Semi-Etching) Capability
A standout feature of the AU4 is its support for both the Upper and Lower layers of the CPU. Modern mobile processors often use “Package on Package” (PoP) technology, where the RAM is stacked directly on top of the CPU. The AU4 includes specific patterns for the RAM chip (top) and the CPU (bottom), ensuring a complete repair solution for the entire processor stack. Amaoe AU4 BGA Stencil-Original
Professional Usage Tips
To maximize the lifespan of your Amaoe AU4 stencil:
-
Cleaning: Use 99% Isopropyl Alcohol (IPA) and a soft ESD brush after every use. Never use metal scrapers that might scratch the surface.
-
Alignment: Use a dedicated BGA reballing station or magnetic base to keep the chip and stencil perfectly stationary.
-
Solder Paste: Pair with high-quality solder paste (e.g., $183\text{°C}$ Medium Temperature) for the best results.
