Amaoe BCM1 Bluetooth WiFi IC Universal Reballing Stencil-Original With Universal Position 0.4 18?18 for BCM Wifi IC Module Reballing
Crafted for Professional Accuracy
The Amaoe BCM1 Bluetooth WiFi IC Universal Reballing Stencil-Original With Universal Position 0.4 18?18 for BCM Wifi IC Module Reballing is the epitome of quality engineering tailored for BCM Wifi IC Module reballing tasks. Designed with precision and care, this stencil ensures universal positioning at 0.4 18×18, making your reballing experience more efficient and reliable.
Universal Position Compatibility
This original reballing stencil offers unparalleled compatibility with BCM Wifi IC modules. Whether you’re handling intricate repairs or advanced technical setups, the universal position design guarantees smooth workflow across diverse scenarios, optimizing your productivity. Amaoe BCM1 Bluetooth WiFi IC Universal Reballing Stencil-Original With Universal Position 0.4 18?18 for BCM Wifi IC Module Reballing
Durable & Efficient Design
Constructed from premium materials, the Amaoe BCM1 stencil combines durability with functionality, allowing for repeated use without compromising quality. Its innovative layout empowers professionals and hobbyists alike to achieve impeccable results in IC module reballing. Amaoe BCM1 Bluetooth WiFi IC Universal Reballing Stencil-Original With Universal Position 0.4 18?18 for BCM Wifi IC Module Reballing

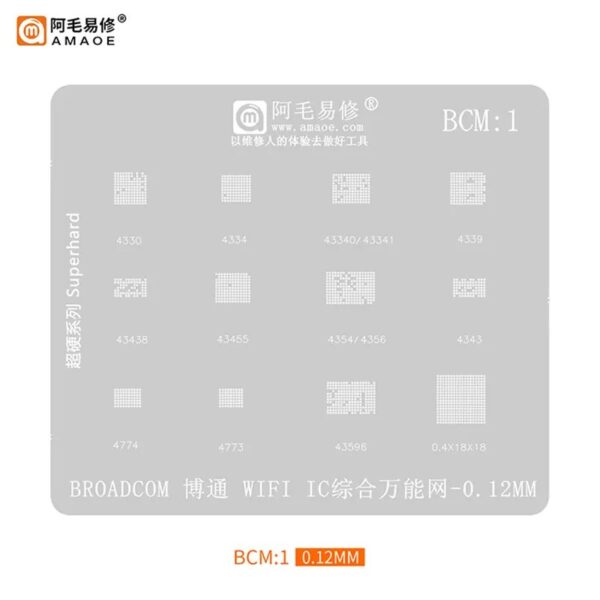

The Amaoe BCM1 Bluetooth WiFi IC Universal Reballing Stencil is a precision-engineered tool designed for micro-soldering professionals. When dealing with Broadcom (BCM) chips—which are notorious for their heat sensitivity and dense ball grids—having a high-quality stencil isn’t just a luxury; it’s a requirement to avoid bridging or “popcorning” the IC.
This specific model features a 18×18 grid with a 0.4mm pitch, making it a staple for technicians working on high-end smartphones and tablets. Amaoe BCM1 Bluetooth WiFi IC Universal Reballing Stencil-Original With Universal Position 0.4 18?18 for BCM Wifi IC Module Reballing
Technical Specifications Table
| Feature | Specification Details |
| Brand | Amaoe (Authentic/Original) |
| Model Number | BCM1 Bluetooth WiFi IC Universal |
| Material | High-Grade Japanese Imported Steel |
| Grid Layout | 18 x 18 Matrix |
| Hole Pitch | 0.4mm (Standard for BCM Modules) |
| Thickness | 0.12mm (Optimized for thermal expansion) |
| Application | BCM Bluetooth & WiFi IC Reballing |
| Positioning | Universal Alignment Guides |
| Heat Resistance | High-temperature anti-warping properties |
| Edge Finish | Laser-cut, burr-free square holes |
Deep Dive: Why the BCM1 Stands Out
When you’re reballing a BCM WiFi module, the margin for error is microscopic. Here is why this particular stencil is favored in the repair community:
1. Material Integrity
The Amaoe BCM1 is crafted from high-quality steel that resists the “warping” effect often seen in cheaper stencils. When applying heat from a hot air station, lower-quality stencils tend to bow upwards, causing solder paste to bleed between the pads. The BCM1 maintains its flatness, ensuring every solder ball is uniform.
2. The 18×18 Grid Logic
The 18×18 configuration is designed to cover a wide range of Broadcom ICs. While it is labeled “Universal,” it is specifically optimized for the footprint of WiFi and Bluetooth modules found in modern mobile architecture. The 0.4mm pitch is the industry standard for these components, ensuring the stencil holes align perfectly with the IC pads. Amaoe BCM1 Bluetooth WiFi IC Universal Reballing Stencil-Original With Universal Position 0.4 18?18 for BCM Wifi IC Module Reballing
3. Square vs. Round Holes
Amaoe uses laser-cut square holes with slightly tapered sides. This geometry is superior for two reasons:
-
Paste Release: It allows the solder paste to release from the stencil more easily once the IC is lifted.
-
Ball Formation: During the melting phase, the square pocket helps center the solder ball over the pad, leading to a more consistent height across all 324 possible ball positions.
Best Practices for Reballing with the BCM1
To get the most out of this tool, follow these professional guidelines:
-
Cleaning: Before use, clean the stencil with 99.9% Isopropyl Alcohol (IPA) to remove any residual flux or oils. Even a fingerprint can cause a solder ball to stick.
-
Paste Consistency: Use a high-quality “No-Clean” solder paste (usually 183°C or 138°C depending on the chip’s sensitivity). If the paste is too runny, let it sit on a paper towel for a few minutes to draw out excess flux.
-
Heat Management: When heating, start with a circular motion from a distance to pre-heat the stencil. This prevents sudden thermal shock which could lead to warping.
-
Alignment: Utilize the universal positioning marks on the stencil to center the chip. Since BCM chips are often small, even a 0.05mm misalignment can result in a failed boot or a “No WiFi” error.
Why “Original” Matters
In the market, you will find many “Blue” or “Generic” versions of this stencil. The Original Amaoe BCM1 is distinct because of its precise thickness (0.12mm). If a stencil is too thin, the solder balls won’t have enough volume to create a strong joint. If it’s too thick, you risk bridging. The BCM1 hits the “Goldilocks” zone for BCM modules. Amaoe BCM1 Bluetooth WiFi IC Universal Reballing Stencil-Original With Universal Position 0.4 18?18 for BCM Wifi IC Module Reballing
Summary of Benefits
-
Efficiency: Reduces the need for multiple attempts at reballing.
-
Durability: Can be used hundreds of times without losing its shape.
-
Compatibility: Covers a massive range of BCM-series chips used in iPhones, Samsung Galaxys, and Huawei devices.
