Amaoe Bga Stencil IPHONE6 6PLUS
Unparalleled Precision for iPhone Repairs
Designed specifically for Amaoe Bga Stencil IPHONE6 6PLUS models, the Amaoe BGA stencil supports high-precision repairs. It offers compatibility with advanced soldering techniques, helping technicians achieve professional-grade results effortlessly. Amaoe Bga Stencil IPHONE6 6PLUS
Durable and Easy-to-Use Design
Built with high-quality materials, this stencil is crafted to withstand repeated use while maintaining its structure and functionality. The precise cut-outs ensure accurate placement of components, making it an essential tool for mobile repair experts. Amaoe Bga Stencil IPHONE6 6PLUS
Efficient and Reliable Workflow
The Amaoe BGA stencil not only enhances repair efficiency but also promotes better heat distribution during soldering. This ensures reliable performance and minimizes the risk of errors, enabling you to deliver seamless repairs every time. Amaoe Bga Stencil IPHONE6 6PLUS

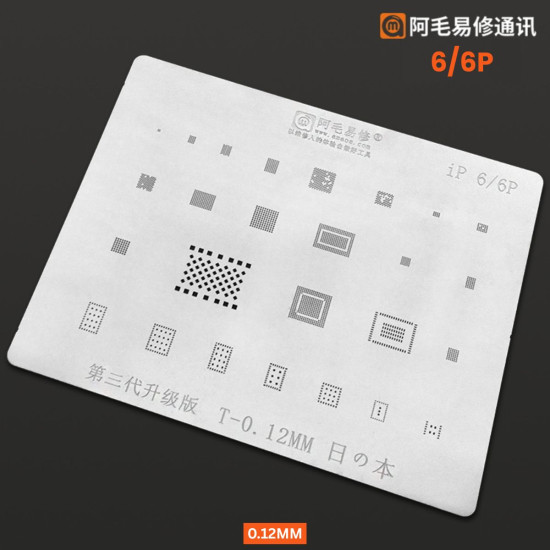

The Amaoe BGA Reballing Stencil for iPhone 6 and 6 Plus is widely regarded as an industry standard in micro-soldering and motherboard repair. Designed with high-precision CNC laser cutting, this stencil specifically targets the A8 Processor architecture and its peripheral integrated circuits (ICs). Amaoe Bga Stencil IPHONE6 6PLUS
Below are the comprehensive specifications and technical details organized for easy reference. Amaoe Bga Stencil IPHONE6 6PLUS
Technical Specifications Table
| Attribute | Specification Details |
| Brand | Amaoe (Mao Wang) |
| Compatible Models | iPhone 6 (4.7″), iPhone 6 Plus (5.5″) |
| Primary IC Support | Apple A8 CPU, RAM (Upper Tier), NAND Flash |
| Material | High-Grade Japanese Imported Stainless Steel |
| Stencil Thickness | $0.12\text{mm}$ (Standard for consistent tin planting) |
| Manufacturing Process | High-precision Laser Cutting & Square Hole Design |
| Thermal Resistance | Up to $450^\circ\text{C}$ (Maintains shape under hot air) |
| Hole Shape | Square holes with tapered edges (Anti-stick design) |
| Finish | Smooth, burr-free surface to prevent solder bridging |
| Packaging | Static-shielded individual packaging |
Key Features & Component Coverage
The Amaoe iPhone 6 series stencil is not just for the CPU; it is a “multi-purpose” reballing plate that covers the most common failure points on the iPhone 6/6 Plus logic board.
1. Integrated Circuit (IC) Support
The stencil includes precision-aligned patterns for:
-
A8 Processor: The central logic chip.
-
NAND Flash: The storage memory (common for “Error 4013” or storage upgrades).
-
Baseband CPU: Responsible for cellular signal.
-
Power Management (PMIC): The main power controller.
-
Audio IC: Specifically the “Audio Coder” chip.
-
Touch IC: Essential for fixing the famous “Touch Disease” on the 6 Plus.
-
Wi-Fi / Bluetooth Module: For connectivity repairs.
2. The $0.12\text{mm}$ Advantage
While some budget stencils use $0.1\text{mm}$ (too thin, leads to heat warping) or $0.15\text{mm}$ (too thick, leads to solder balls touching), the $0.12\text{mm}$ thickness is the “sweet spot.” It provides:
-
Rigidity: It doesn’t buckle easily when heated by a hot air station.
-
Volume Control: It ensures the exact amount of solder paste is deposited to form uniform balls.
3. Square Hole Geometry
Traditional round-hole stencils often suffer from “solder ball suction,” where the ball gets stuck in the hole. Amaoe uses square holes with a micro-taper. This design allows the solder paste to release cleanly from the stencil after heating, significantly reducing the “failed reball” rate.
Professional Usage Guidelines
To maximize the lifespan of your Amaoe stencil and ensure a successful repair, follow these technical steps:
Preparation
-
Cleaning: Use 99% Isopropyl Alcohol (IPA) to remove any residual flux or old solder from the stencil.
-
Alignment: Use a microscope to ensure the pads of the IC are perfectly centered within the stencil holes.
Soldering Tips
-
Paste Selection: Use high-quality $183^\circ\text{C}$ (leaded) or $138^\circ\text{C}$ (low-melt) solder paste depending on the component’s heat sensitivity.
-
Heat Management: Set your hot air station to approximately $300^\circ\text{C} – 350^\circ\text{C}$ with low airflow. Hold the heat gun at a $90^\circ$ angle to avoid “blowing” the paste out of the holes.
Maintenance
-
Storage: Always store the stencil flat. Avoid bending or applying heavy weight, as even a slight crease can ruin the alignment for the A8 CPU’s fine-pitch pins.
Note: If you are dealing with the iPhone 6S or 6S Plus, ensure you purchase the Amaoe IP 6S/6SP (A9) version, as the pinouts for the A9 processor are significantly different from the A8.
