Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
Enhance Your Chip Repair Efficiency

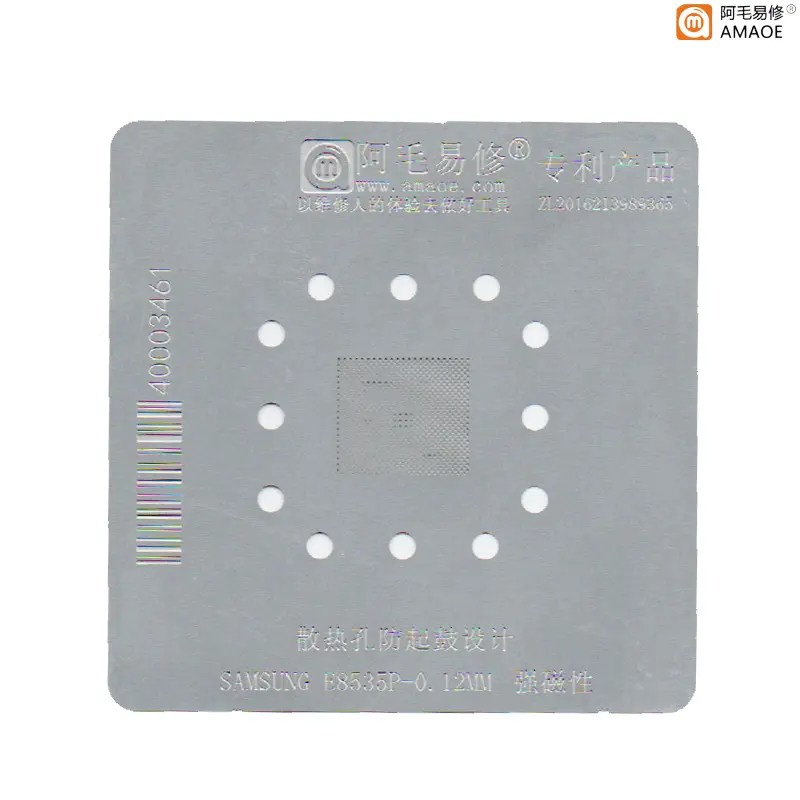

The Amaoe E8535P Middle Layer BGA Reballing Stencil-Original is meticulously crafted to deliver accuracy and reliability in chip repair tasks. Designed for precision, this stencil ensures seamless alignment and application during the repair process, offering engineers and technicians a dependable tool for professional results. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
Durable Build for Long-Term Performance
Constructed with high-quality materials, the Amaoe E8535P guarantees exceptional durability and prolonged usability. Its robust design resists wear and tear, making it an ideal choice for those seeking long-term performance. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
Optimized for Middle Layer BGA Chips
Specifically tailored for middle layer BGA chip reballing, this stencil simplifies complex repair jobs and significantly enhances efficiency. Whether you’re handling delicate repairs or large-scale projects, the Amaoe E8535P is your trusted partner in achieving precision and consistency. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
The Amaoe E8535P is a high-precision BGA (Ball Grid Array) reballing stencil specifically engineered for the “middle layer” or “interposer” soldering process found in modern mobile devices. In the world of microsoldering, particularly with dual-layer (sandwiched) motherboards, the interposer connects the top and bottom logical boards. This stencil is the industry standard for technicians performing motherboard swaps, chip-level repairs, or trace reconstruction. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
Below are the comprehensive specifications, technical features, and operational guidelines for the Amaoe E8535P. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
Technical Specifications
| Feature | Specification Details |
| Model Name | Amaoe E8535P |
| Stencil Category | Middle Layer / Interposer Reballing |
| Material Composition | High-Grade Imported Japanese Steel |
| Thickness | 0.12mm to 0.15mm (Optimized for middle layer solder paste volume) |
| Thermal Resistance | High-temperature resistant (Anti-warping) |
| Hole Design | Square holes with rounded corners (to prevent paste sticking) |
| Compatibility | Specific high-end mobile chipsets/motherboards |
| Finish | Laser-cut precision with smooth interior walls |
| Magnetic Support | Compatible with magnetic reballing stations |
Key Design Characteristics
The Amaoe E8535P isn’t just a piece of metal; it’s a precision instrument designed to solve the most common frustrations in BGA repair.
1. Advanced Hole Geometry
Unlike cheaper stencils that use simple circular drills, Amaoe utilizes square holes with micro-rounded internal corners. This design is critical because it allows the solder paste to release cleanly when the stencil is lifted. If the paste sticks even slightly, the “ball” height becomes uneven, leading to “cold joints” or shorts when the motherboard layers are compressed. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
2. Heat Deformation Resistance
One of the biggest challenges in reballing is the “pop-up” effect—where the stencil warps under the heat of a 350°C hot air gun. The E8535P is treated with a specialized cooling/hardening process that ensures it stays flat. This stability ensures that the solder balls remain uniform in size across the entire grid. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
3. Alignment Accuracy
The stencil features laser-etched alignment markings that correspond precisely to the components on the PCB. For middle-layer work, where there are often hundreds of tiny pads, even a 0.05mm misalignment can result in a catastrophic short circuit. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
Use Cases and Applications
The E8535P is predominantly used in Motherboard Layering Repairs. Modern smartphones often split the motherboard into two halves to save space. These layers are connected by a perimeter of solder balls (the middle layer).
-
Sandwich Separation: When a device suffers from a drop, the solder joints between the two layers can crack. The technician must desolder the layers, clean the old solder, and use the E8535P to apply fresh solder paste. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
-
Signal Issues: Often, Wi-Fi or Baseband (cellular) chips are located on different layers. Repairing signal loss frequently requires reballing the interposer. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
-
Data Recovery: In cases of severe board damage, a technician may move the CPU and NAND to a “donor” board, requiring a perfect middle-layer reball to ensure the transplant works. Amaoe E8535P Middle Layer BGA Reballing Stencil-Original
Operational Guide: Best Practices
To get the most out of an Amaoe stencil, follow these professional steps:
-
Preparation: Clean the PCB thoroughly using specialized solder wick and Isopropyl Alcohol (IPA). Ensure the surface is perfectly flat.
-
Paste Application: Use a high-quality “middle layer” solder paste (usually with a melting point around 183°C or 158°C, depending on the device). Apply the paste using a flat scraper at a 45-degree angle.
-
The “Dry” Technique: Before heating, use a lint-free cloth to gently wipe away excess paste from the top of the stencil. This prevents “bridging” (solder balls merging).
-
Heating: Use a hot air station with a wide nozzle. Set the airflow to a medium-low level to prevent the solder balls from blowing out of their sockets.
-
Release: Once the solder has liquefied and turned shiny, remove the heat and wait 5 seconds. Gently lift the stencil vertically.
Maintenance and Longevity
To ensure the Amaoe E8535P remains accurate over hundreds of uses:
-
Cleaning: Always clean the stencil immediately after use. If solder paste dries inside the holes, it is incredibly difficult to remove without scratching the steel. Use a soft brush and IPA.
-
Storage: Store the stencil flat. Even a minor bend in the steel can ruin the alignment for future repairs.
-
Avoid Abrasives: Never use metal scrapers or wire brushes on the stencil, as this will burr the holes and cause the solder paste to snag.
Pro Tip: When working with the E8535P, using a magnetic reballing base is highly recommended. It keeps the stencil under constant tension, further reducing the risk of heat-induced warping.
