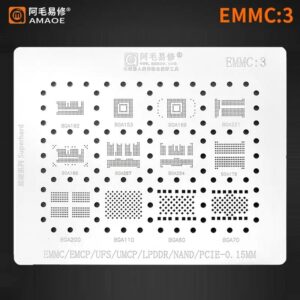

Amaoe EMMC 3 BGA Stencil-Original
Exceptional Accuracy for EMMC Repairs
The Amaoe EMMC 3 BGA Stencil-Original is designed to deliver unmatched precision in repairing EMMC chips, making it an essential tool for technicians working on delicate electronic components. With its high-quality build, this stencil ensures accurate alignment and efficient soldering, minimizing errors for flawless results every time. Amaoe EMMC 3 BGA Stencil-Original
Durable and Easy to Use
Made from robust materials, the Amaoe EMMC 3 BGA Stencil stands out for its durability and ease of use. Whether you’re fixing a mobile phone or other electronics, this stencil streamlines your workflow, saving you time and effort while maintaining professional-grade outcomes. Amaoe EMMC 3 BGA Stencil-Original
Versatility for Various Applications
This stencil is compatible with a wide range of EMMC chips, making it a versatile addition to your toolkit. Ideal for repair shops, DIY electronics enthusiasts, and professionals alike, the Amaoe EMMC 3 BGA Stencil guarantees reliable performance every time you need it. Amaoe EMMC 3 BGA Stencil-Original
The Amaoe EMMC-3 BGA Stencil is a staple in the toolkit of any professional mobile technician. Known for its high-precision laser-cut apertures and thermal stability, this “Original” series stencil is specifically engineered for the memory and storage chips found in modern Android devices. Amaoe EMMC 3 BGA Stencil-Original
While many generic stencils warp under the heat of a rework station, Amaoe uses high-grade Japanese stainless steel that maintains its structural integrity, ensuring that solder balls are uniform and bridge-free. Amaoe EMMC 3 BGA Stencil-Original
## Technical Specifications
The following table provides the comprehensive technical breakdown of the Amaoe EMMC-3 stencil.
| Feature | Specification Detail |
| Brand | Amaoe (Authentic/Original) |
| Model Number | EMMC-3 (Memory/Storage Series) |
| Material | High-Quality Japanese Stainless Steel |
| Thickness | 0.15mm (Optimized for EMMC/UFS pitch) |
| Manufacturing Process | High-precision Laser Cutting |
| Hole Shape | Square with Rounded Corners (Anti-stuck design) |
| Hardness | Super-hard / High Elasticity |
| Thermal Resistance | High (Designed for direct heating) |
| Finish | Anti-rust / Matte Polished |
| Weight | Approx. 10g – 15g |

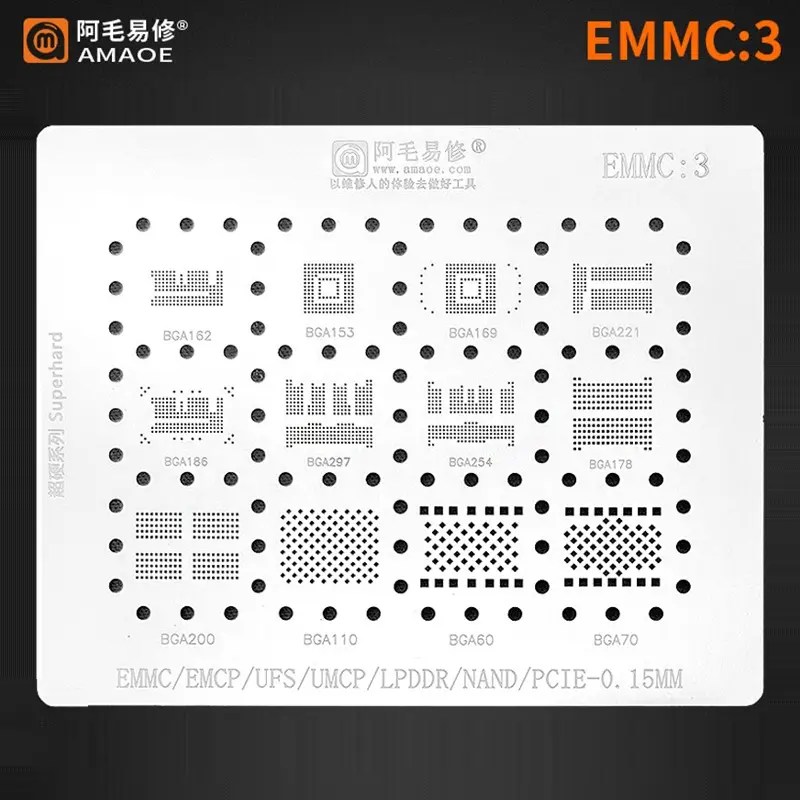

## Supported Chipsets & BGA Patterns
The EMMC-3 is a “multi-purpose” memory stencil. It doesn’t just cover one chip; it is a collection of the most common storage footprints used by manufacturers like Samsung, SK Hynix, and Micron.
-
EMMC / EMCP: BGA153, BGA162, BGA169, BGA186, BGA221, BGA254, BGA529.
-
UFS / UMCP: UFS 2.0, 2.1, 3.0, 3.1 (BGA153, BGA254, BGA297).
-
Other Components: LPDDR RAM, NAND Flash, and some PCI-E based storage chips.
-
Common BGA Types: * BGA153/169: Standard EMMC found in mid-range Androids.
-
BGA221: Common in high-end EMCP configurations.
-
BGA254: The modern standard for high-speed UFS storage.
-
## Key Features & Advantages
1. Square-Round Hole Design
One of the biggest frustrations in reballing is the solder paste getting “stuck” in the stencil holes. Amaoe utilizes a square-round aperture. The square base allows for maximum solder volume, while the rounded corners prevent the paste from clinging to the edges, allowing for a clean “release” once the stencil is lifted. Amaoe EMMC 3 BGA Stencil-Original
2. 0.15mm Precision Thickness
While CPU stencils often use 0.12mm, memory chips benefit from the 0.15mm thickness of the EMMC-3. This slight increase provides a more robust solder ball that ensures better connectivity on larger pads, which are common on storage ICs compared to the ultra-fine pitch of a CPU. Amaoe EMMC 3 BGA Stencil-Original
3. Heat Resistance and Elasticity
Cheap stencils often “bow” or “pop” when hit with a heat gun at 350°C. The Amaoe Original series is treated to be “super-hard” but elastic. This means it can expand slightly under heat and return to its perfectly flat shape once cooled, preventing the common “solder bridging” caused by warped metal. Amaoe EMMC 3 BGA Stencil-Original
4. Alignment Accuracy
The stencil features clear silk-screened markings and precise positioning for the ICs. This reduces the setup time for technicians, as the chip “locks” into the etched boundary of the stencil pattern easily. Amaoe EMMC 3 BGA Stencil-Original
## Usage Recommendations
To get the most out of your Amaoe EMMC-3, follow these professional tips:
-
Cleaning: Always clean the stencil with mechanic 530 or high-purity IPA after every use. Solder paste residue in the holes will cause the next chip to fail.
-
Paste Selection: Use a high-quality 183°C (Medium Temp) solder paste for memory chips to ensure a strong mechanical bond.
-
Heat Profile: Use a nozzle that covers the entire chip area. For a 0.15mm stencil, a temperature of 330°C–350°C with low airflow is usually the “sweet spot.”
Note: Ensure you are buying the “Original” Amaoe with the holographic or verified branding, as “copy” versions often use inferior steel that warps after 2-3 uses.
