Amaoe EU2 BGA Reballing Stencil-Original
Enhance Your Repair Precision
The Amaoe EU2 BGA Reballing Stencil-Original is designed for professional-grade IC reballing and repair tasks. Crafted from durable stainless steel, this stencil ensures accurate alignment and clean soldering, making it an essential tool for microelectronics enthusiasts and technicians. Amaoe EU2 BGA Reballing Stencil-Original
Reliable Build for Repeated Use
This high-quality stencil is built to withstand frequent usage without losing its shape or effectiveness. Perfect for reballing BGAs, it delivers consistent results over time, helping you achieve superior repair outcomes with ease. Amaoe EU2 BGA Reballing Stencil-Original
Compatible and Easy to Use
Whether you’re dealing with smartphones, laptops, or other IC-related devices, the Amaoe EU2 is compatible with various chips and platforms. Its user-friendly design ensures hassle-free handling, making it ideal for beginners and experts alike. Amaoe EU2 BGA Reballing Stencil-Original

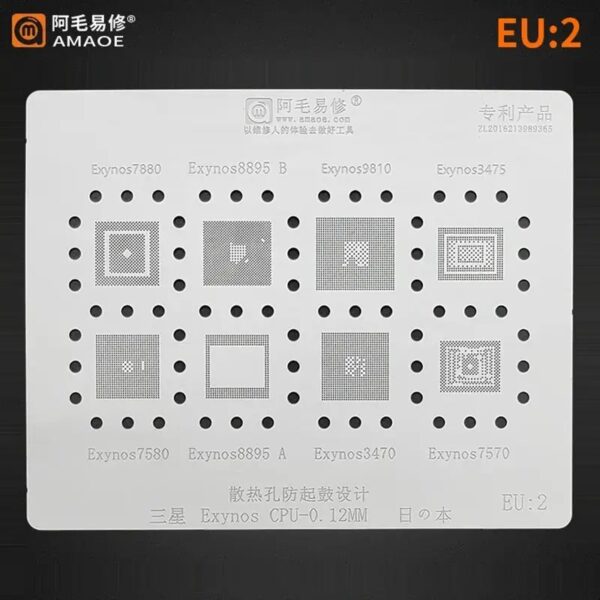

The Amaoe EU2 BGA Reballing Stencil is a cornerstone tool for professional electronics repair technicians, particularly those specializing in the European and Global variants of flagship Android devices (most notably Samsung’s Exynos-based models). Known for its high-precision laser-cut apertures and thermal stability, the EU2 stencil is designed to handle the intricate ball grid array (BGA) patterns of modern CPUs, RAM, and power management ICs. Amaoe EU2 BGA Reballing Stencil-Original
Below is the comprehensive technical breakdown and specification guide for the Amaoe EU2. Amaoe EU2 BGA Reballing Stencil-Original
Technical Specifications Table
| Feature | Specification Details |
| Model Number | Amaoe EU2 (European/Global Series) |
| Material | High-Quality Japanese Imported 304 Stainless Steel |
| Thickness | 0.12mm (Ultra-precision thickness) |
| Aperture Type | Square Hole (Chamfered/Round-Cornered Squares) |
| Manufacturing Process | High-precision Laser Cutting |
| Heat Resistance | Up to 450°C (Recommended working temp: 280°C–350°C) |
| Compatibility | Samsung Exynos Series, Qualcomm Snapdragon, RAM, Power ICs |
| Stencil Size | Approx. 100mm x 80mm (Standard Amaoe sizing) |
| Design Feature | Anti-Drum/Anti-Warping heat dissipation holes |
Deep Dive: Core Features and Layout
1. Material Integrity
The Amaoe EU2 utilizes imported Japanese steel, which is critical for reballing. Standard stencils often warp under the heat of a hot air gun, causing “bridging” (where two solder balls melt into one). The EU2’s steel is engineered to expand and contract uniformly, maintaining its flat profile even during repeated thermal cycles. Amaoe EU2 BGA Reballing Stencil-Original
2. The Square Hole Advantage
While many generic stencils use circular holes, the Amaoe EU2 features square-bottomed holes with chamfered edges.
-
Release: This design allows the solder paste to release more cleanly when the stencil is lifted.
-
Alignment: Square holes provide better “grip” for the solder balls during the initial melting phase, ensuring they center perfectly on the BGA pads.
3. Chipset Compatibility List
The “EU” designation refers to the focus on chipsets commonly found in European and international models (often distinct from North American “U” models). Key ICs covered by the EU2 typically include:
-
Exynos CPUs: Support for multiple generations of Samsung’s proprietary processors.
-
LPDDR RAM: Specific patterns for the stacked RAM (PoP – Package on Package) that sits atop the CPU.
-
PMIC (Power Management): High-density layouts for the primary and secondary power controllers.
-
Audio and Charging ICs: Smaller peripheral chips that are frequently prone to failure.
Application and Usage Guidelines
To maximize the lifespan of the Amaoe EU2 and ensure a 100% success rate, technicians should follow these operational parameters:
Alignment and Preparation
The stencil is designed for manual alignment. Using a microscope is highly recommended, as the 0.12mm pitch leaves zero room for error. Before application, the chip must be cleaned of all residual “underfill” (the black epoxy used by manufacturers) and old solder. Amaoe EU2 BGA Reballing Stencil-Original
Solder Paste Selection
For the EU2, it is best to use a high-quality solder paste with a 183°C melting point (Sn63/Pb37) for standard repairs, or a lead-free (SAC305) paste if the repair must meet original factory standards. The particle size of the paste should be Type 4 or Type 5 to ensure the microscopic holes are filled evenly. Amaoe EU2 BGA Reballing Stencil-Original
Heat Management
Note: Never apply direct heat to a single spot for too long. Use a circular motion with your hot air station.
Airflow: Set to a low/medium level to prevent the stencil from lifting.
Temperature: Usually 300°C–330°C depending on your station’s calibration.
Why the EU2 is a Workshop Essential
The primary advantage of the Amaoe EU2 over “Universal” stencils is the custom fit. Universal stencils require the technician to hunt for a matching grid, which often results in nearby holes being accidentally filled with paste. The EU2 provides a 1:1 map of the specific chips, shielding the rest of the board (or the rest of the chip) from unnecessary solder mess.
The 0.12mm thickness is the “Goldilocks” zone—thick enough to provide a sturdy solder ball that makes a solid connection, but thin enough to prevent the balls from being so large that they bridge together when the chip is seated back onto the motherboard.
