Amaoe EU3 Stencil-Original
Enhance Your Precision with the Amaoe EU3 Stencil
Experience unmatched accuracy and convenience with the Amaoe EU3 Stencil-Original, thoughtfully crafted for professionals and enthusiasts alike. This high-performance tool delivers exceptional precision, ensuring clean and flawless stencil application every time. Amaoe EU3 Stencil-Original
Durable and Reliable Design
The Amaoe EU3 Stencil is built from premium-quality materials that guarantee durability and reliability. Its robust construction makes it perfect for repeated use, saving you time and effort while maintaining outstanding performance. Amaoe EU3 Stencil-Original
Streamlined for Versatility
Whether you’re working on intricate designs or tackling larger projects, the Amaoe EU3 Stencil adapts seamlessly to your needs. Its ergonomic design ensures effortless handling, making detailed applications smoother and more efficient. Amaoe EU3 Stencil-Original

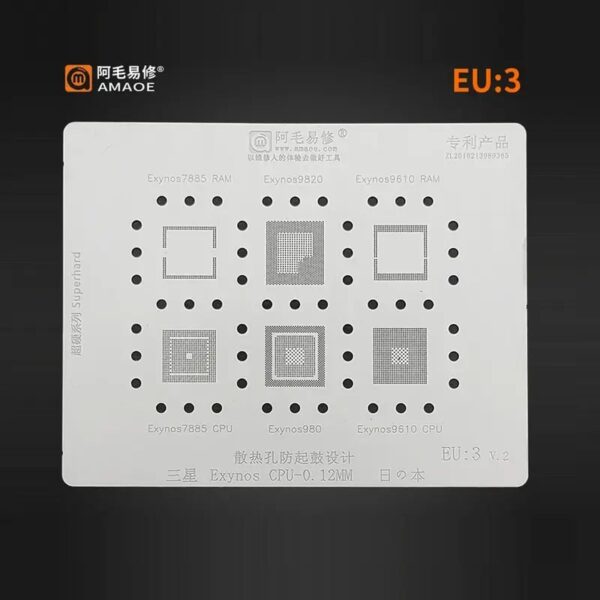

The Amaoe EU3 Stencil is a high-precision BGA (Ball Grid Array) reballing template specifically engineered for Samsung Exynos processors and their associated RAM modules. Recognized for its “Original” status, it is part of Amaoe’s premium lineup that utilizes high-grade Japanese steel to ensure thermal stability and alignment accuracy during the rework of high-density mobile chipsets. Amaoe EU3 Stencil-Original
Below are the comprehensive specifications and compatibility details for the Amaoe EU3 Stencil.
🛠️ Technical Specifications
The Amaoe EU3 is characterized by its signature square-hole design, which helps in better solder paste release and prevents the “clogging” common in standard round-hole stencils.
| Feature | Specification |
| Brand | Amaoe (Original) |
| Model | EU3 (Samsung Exynos Series) |
| Material | High-Grade Japanese Stainless Steel |
| Stencil Thickness | 0.12 mm |
| Hole Design | Precision Square-Round Apertures |
| Hardness | Superhard / High-Temperature Resistant |
| Weight | ~0.04 kg (Net), 0.10 kg (Packaged) |
| Dimensions | ~100 mm x 80 mm (Template Size) |
| Finish | Anti-glare, smooth-edge laser cut |
| Reusability | High (Designed for professional repeated use) |
📱 Chipset Compatibility List
The EU3 model is versatile, covering multiple generations of Exynos CPUs and LPDDR RAM. It is a staple for technicians working on Samsung Galaxy S-series, A-series, and Note-series logic boards.
Supported IC Models
The stencil includes dedicated areas for the following integrated circuits:
-
Exynos 9820: Found in Samsung Galaxy S10 series.
-
Exynos 990 (CPU/RAM): Powering the Galaxy S20 and Note 20 series.
-
Exynos 980: Integrated 5G chipset used in mid-to-high range devices.
-
Exynos 9610 / 9611 (CPU/RAM): Extremely common in the Galaxy A50, A51, and M31.
-
Exynos 7885 (CPU/RAM): Found in the Galaxy A8 (2018) and A7 (2018).
✨ Key Features & Performance
1. 0.12 mm Precision Thickness
While some stencils vary in thickness, Amaoe has standardized the EU3 at 0.12 mm. This is the “sweet spot” for mobile CPU reballing—it is thick enough to provide a robust solder ball height for reliable connectivity but thin enough to prevent bridging (solder shorts) between the incredibly tight pitches of modern Exynos chips. Amaoe EU3 Stencil-Original
2. High-Temperature Resistance
The stencil is manufactured to withstand direct heat. Technicians can use a hot air station to reflow the solder balls directly through the stencil without the plate warping or “bubbling.” This is critical when dealing with large chips like the Exynos 990, which require sustained heat to melt the lead-free solder paste. Amaoe EU3 Stencil-Original
3. Square Hole Technology
Standard stencils often suffer from the “suction” effect, where the solder paste stays stuck in the holes when the stencil is lifted. The Amaoe EU3 uses square apertures with tapered edges, ensuring that 100% of the paste is deposited onto the IC pads, leading to uniform ball heights. Amaoe EU3 Stencil-Original
📋 Best Practices for Use
To maximize the lifespan of your Amaoe EU3 stencil and ensure a successful reballing process, follow these professional guidelines:
-
Cleaning: Always clean the stencil with 99% Isopropyl Alcohol (IPA) and a lint-free cloth before and after use. Solder residue in the apertures is the primary cause of reballing failure.
-
Solder Paste Selection: Use a high-quality solder paste (e.g., Amaoe M10 or Mechanic) with a melting point of 183°C (Leaded) or 217°C (Lead-free) depending on the repair requirements.
-
Heat Management: When heating, move the hot air nozzle in a circular motion. Do not focus on one spot for too long to prevent the chip from thermal shock.
-
Alignment: Use a microscope to ensure the stencil apertures are perfectly centered over the IC pads. Even a 0.01 mm offset can lead to shorts.
📦 Package Contents
-
1x Amaoe EU3 Original BGA Reballing Stencil.
-
Standard retail packaging (usually a protective envelope or card-backed plastic).
