Amaoe HU2 Stencil-Original
Unmatched Precision for Professional Results
The Amaoe HU2 Stencil-Original offers unparalleled accuracy, making it an essential tool for circuit repair and soldering tasks. Designed for professionals and hobbyists alike, this stencil ensures clean and precise applications, streamlining your repair process and delivering consistent results every time. Amaoe HU2 Stencil-Original
Durable Design You Can Trust
Crafted from high-quality materials, the Amaoe HU2 Stencil is built to last. Its sturdy construction resists wear and deformation, ensuring that you can rely on it for multiple projects. Whether you’re working on delicate components or tackling intricate circuits, this stencil stands up to the challenge with durability to spare. Amaoe HU2 Stencil-Original
Effortless Compatibility and Versatility
The Amaoe HU2 Stencil is designed to be compatible with a variety of soldering techniques, giving you the flexibility to handle diverse repair needs. Its precision-engineered layout makes it simple to align with your components, saving you time and effort while maximizing your efficiency. Amaoe HU2 Stencil-Original

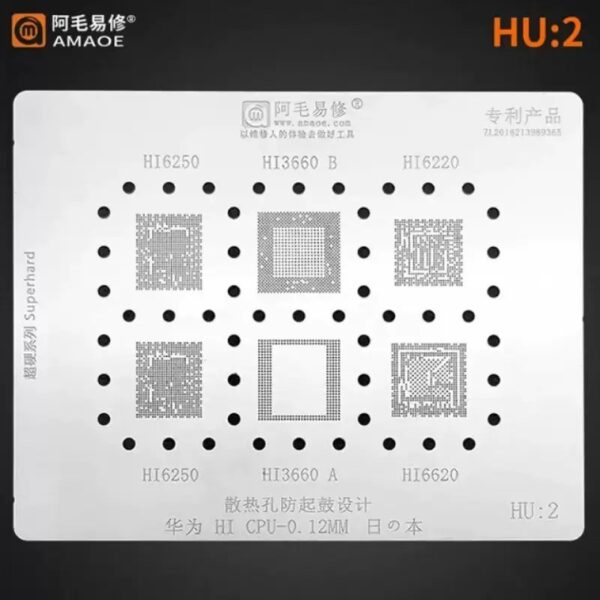

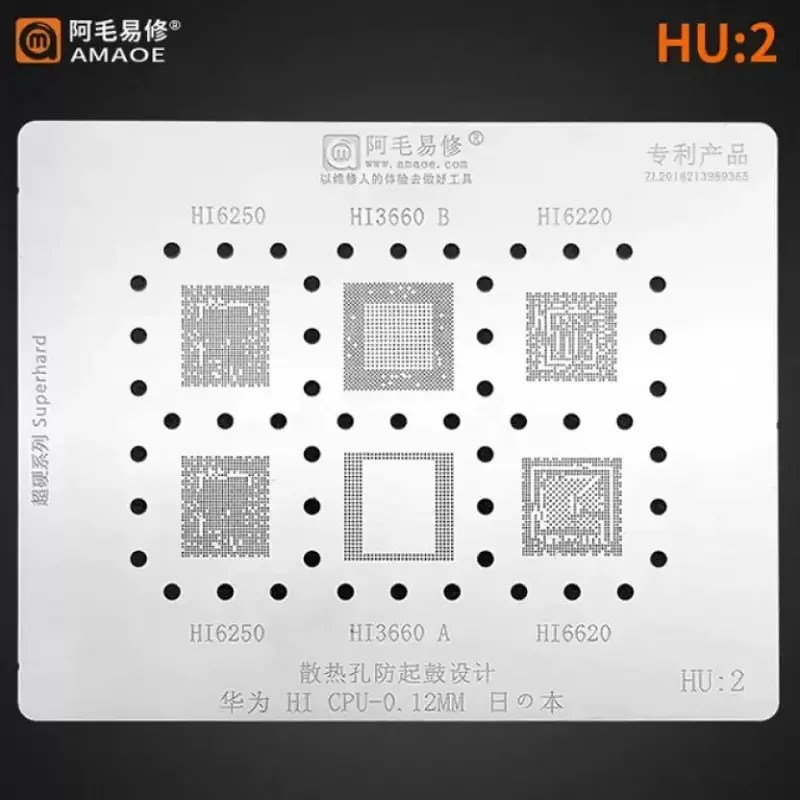

The Amaoe HU2 Stencil is a high-precision BGA (Ball Grid Array) reballing tool specifically engineered for professional-grade repairs on Huawei’s HiSilicon (Kirin) chipset series. Recognized in the industry for its “Square Hole” design and heat-resistant properties, it is a staple for technicians performing CPU and RAM swaps or re-soldering. Amaoe HU2 Stencil-Original
Below are the full technical specifications and details for the original Amaoe HU2 Stencil. Amaoe HU2 Stencil-Original
Technical Specifications: Amaoe HU2 Stencil
| Feature | Specification Details |
| Brand | Amaoe (Original) |
| Model Number | HU2 (Huawei Hi CPU Series) |
| Primary Function | BGA Reballing / Tin Planting |
| Material | High-Grade Japanese Hardened Steel / Stainless Steel |
| Thickness | 0.12 mm (Ultra-thin precision) |
| Hole Design | Square Mesh (for improved tin paste release) |
| Support Chipsets | Huawei HiSilicon (Kirin) Series |
| Compatible ICs | Hi6250, Hi6220, Hi3660, Hi6620, etc. |
| Heat Resistance | Up to 450°C (Anti-warping/Anti-bulge) |
| Magnetic Support | Yes (Compatible with ferromagnetic reballing platforms) |
| Dimensions | Approx. 100mm x 80mm |
| Weight | ~10g to 20g |
Detailed Feature Breakdown
1. Precision 0.12mm Thickness
The 0.12mm thickness is the industry standard for smartphone CPU reballing. It provides a perfect balance between structural integrity and the correct volume of solder paste. This specific thickness ensures that the solder balls are neither too small (which causes weak connections) nor too large (which causes bridging/shorts). Amaoe HU2 Stencil-Original
2. Square Hole Technology
Unlike traditional round-hole stencils, the HU2 utilizes Square Hole apertures. This design minimizes the surface tension between the solder paste and the stencil walls. When you lift the stencil after applying the paste, the “bricks” of solder remain firmly on the chip pads without sticking to the edges of the stencil, significantly reducing rework. Amaoe HU2 Stencil-Original
3. Advanced Material Construction
The stencil is manufactured from Japanese imported steel. This material is chosen for its “memory” properties; it can withstand the thermal shock of a hot air gun (reflux) without permanently deforming or “bubbling.” The surface is typically finished with a matte or brushed coating to reduce glare under microscope lights. Amaoe HU2 Stencil-Original
4. Broad Compatibility (Hi Series)
The “HU” designation stands for Huawei. The HU2 specifically targets several generations of mid-to-high-end Kirin processors. It is commonly used for:
-
Hi6250: Found in many Honor and P-series Lite models.
-
Hi3660 (Kirin 960): Found in flagship devices like the Huawei P10 and Mate 9.
-
Hi6220: Integrated into various budget-friendly Huawei smartphones.
Application & Best Practices
To achieve the best results with the Amaoe HU2, technicians generally follow these steps:
-
Preparation: Clean the IC chip thoroughly using a soldering iron and desoldering wick to ensure the pads are flat.
-
Alignment: Place the HU2 stencil over the chip. The laser-cut holes should align perfectly with the BGA pads. Due to its magnetic properties, it works best when used with a magnetic reballing station.
-
Paste Application: Apply a high-quality solder paste (usually 183°C or 138°C depending on the sensitivity of the chip). Use a scraper to spread the paste evenly across the square holes.
-
Heating: Use a hot air rework station set to approximately 300°C–330°C with low airflow. The solder will melt and form uniform spheres.
-
Cooling & Cleaning: Allow the stencil to cool before removing the chip. Clean the stencil immediately with PCB cleaner to prevent dried flux from clogging the fine mesh.
Why Choose the Original Amaoe?
Counterfeit stencils often use inferior alloys that warp after just one or two uses. The Original Amaoe HU2 is etched with high-precision lasers, ensuring that every hole is identical in size and depth. This consistency is vital for the complex 0.3mm to 0.4mm pitch found in modern Kirin processors. Amaoe HU2 Stencil-Original
