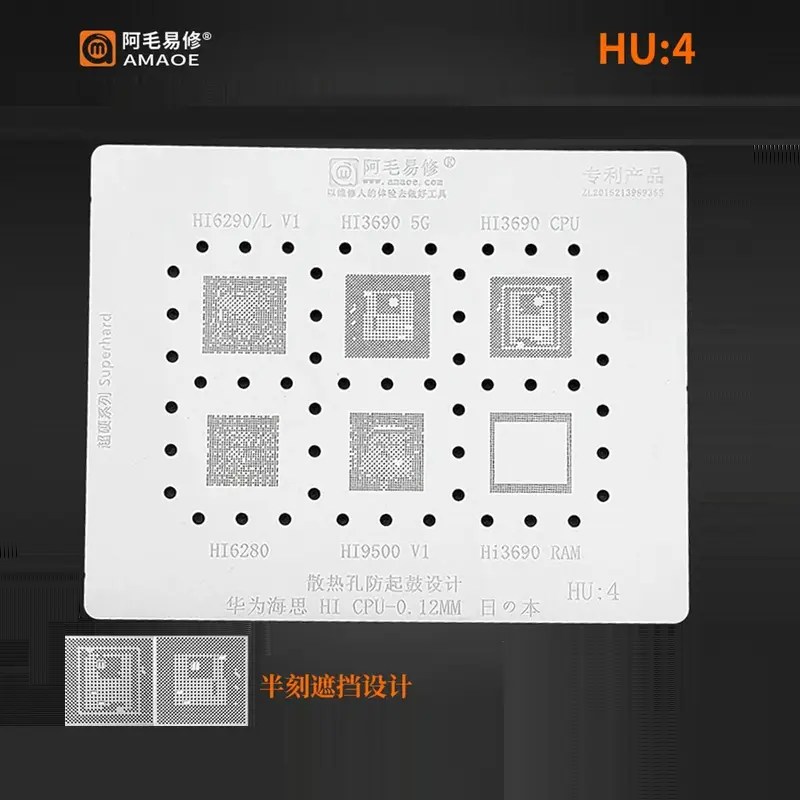

Amaoe HU4 BGA Stencil-Original
Enhanced Accuracy for BGA Reballing
The Amaoe HU4 BGA Stencil-Original is meticulously designed to provide unmatched precision for your soldering and reballing tasks. Crafted with quality materials, this stencil ensures durability and high performance, making it a must-have for intricate electronics repair. Amaoe HU4 BGA Stencil-Original
Durable and Reliable Build
Made from robust stainless steel, the Amaoe HU4 BGA Stencil is engineered to withstand repetitive use without compromising accuracy. Its rigidity and resilience ensure smooth application, reducing errors during solder paste application. Amaoe HU4 BGA Stencil-Original
Versatile Compatibility
Designed to cater to a wide range of BGA chip sizes, this stencil suits various repair and manufacturing purposes. Whether you are working on mobile phones, laptops, or other electronics, the Amaoe HU4 stands out as a trusted tool in your gear. Amaoe HU4 BGA Stencil-Original
The Amaoe HU4 BGA Reballing Stencil is a professional-grade precision tool specifically engineered for high-end smartphone motherboard repairs. Developed by Amaoe, a leader in the micro-soldering tool industry, the HU4 (Huawei-series 4) is designed to handle the complex ball-grid array (BGA) layouts of HiSilicon processors and their associated RAM/Baseband components. Amaoe HU4 BGA Stencil-Original
Below is the comprehensive technical breakdown and specification guide for the original Amaoe HU4 stencil. Amaoe HU4 BGA Stencil-Original
1. Technical Specifications Table
| Feature | Specification |
| Brand | Amaoe (Authentic/Original) |
| Model Number | HU:4 (U-HiS4) |
| Target Platform | Huawei HiSilicon CPU & RAM Series |
| Material | High-Grade Heat-Resistant Stainless Steel |
| Thickness | $0.12\text{ mm}$ |
| Hole Design | Square-Round / 45-Degree High-Precision Holes |
| Aperture Process | CNC Laser Cutting |
| Color | Matte Silver / Gray |
| Heat Resistance | Up to $350^\circ\text{C}$ (Direct Heat Compatible) |
| Supported Pitch | Optimized for HiSilicon BGA patterns |
| Dimensions | Approx. $100\text{ mm} \times 90\text{ mm}$ |
2. Supported Chipset & IC Matrix
The HU4 model is part of a series (HU1 through HU4) where each plate covers specific generations of Huawei hardware. The HU4 is notably designed for 5G-era components and modern high-density chips.
| IC Type | Supported Models |
| Main Processors (CPU) | Hi6290, Hi3690 (Kirin 990 5G), Hi3690 (4G), Hi6280 |
| Baseband/Modem | Hi6290/L V1 |
| Audio/Power/Misc | Hi9500 V1, Hi6421-V8, Hi6363, Hi6365 |
| RAM/Memory | Hi3690 Dedicated RAM, BGA 376, BGA 200 layouts |
| Connectivity | Hi1103-V1, Hi1105 |
3. Key Design Features
Precision Hole Engineering
The Amaoe HU4 utilizes square-round hole technology. Unlike traditional circular holes that can trap solder paste or cause “balling” issues, the square-round design ensures that the solder paste releases cleanly from the stencil. This results in uniform solder balls with zero bridging, even on high-density $0.12\text{ mm}$ pitch components.
Thermal Stability
One of the primary challenges in reballing is stencil warping due to heat. The HU4 is manufactured from specialized steel that maintains its flat profile even under direct heat from a hot air station. This “anti-drum” property prevents the stencil from lifting during the reflow process, which is the leading cause of solder leakage between pads.
Exact Alignment (1:1 Ratio)
The stencil features laser-etched markings for each IC model, allowing technicians to quickly identify the correct layout. The alignment is a 1:1 match for the original factory BGA patterns, ensuring that every ball land is perfectly centered.
4. Operational Guidelines
To maximize the lifespan of the Amaoe HU4 and ensure successful repairs, the following professional standards are recommended:
-
Solder Paste Selection: Use high-quality medium-temperature solder paste (e.g., $183^\circ\text{C}$ Sn63/Pb37). For 5G chips, ensure the paste is well-mixed and of a fine grain size (Type 4 or Type 5).
-
Cleaning: Clean the stencil immediately after use using 99% Isopropyl Alcohol (IPA) and a lint-free cloth. Do not use metal scrapers that could scratch the precision apertures.
-
Heat Application: When heating, apply air in a circular motion. Avoid focusing the heat on a single spot for more than 5–10 seconds to prevent localized thermal expansion.
5. Maintenance & Longevity
Because the HU4 is made of high-grade stainless steel, it is highly resistant to oxidation. However, physical deformation is the most common cause of failure. Always store the stencil in its original protective sleeve or a flat organizer to prevent bending. If the stencil becomes slightly bowed, it can often be flattened using a specialized stencil press, though the HU4’s inherent material properties are designed to resist this.
