Amaoe HW16 BGA Reballing Stencil-Original
Unmatched Precision for BGA Reballing

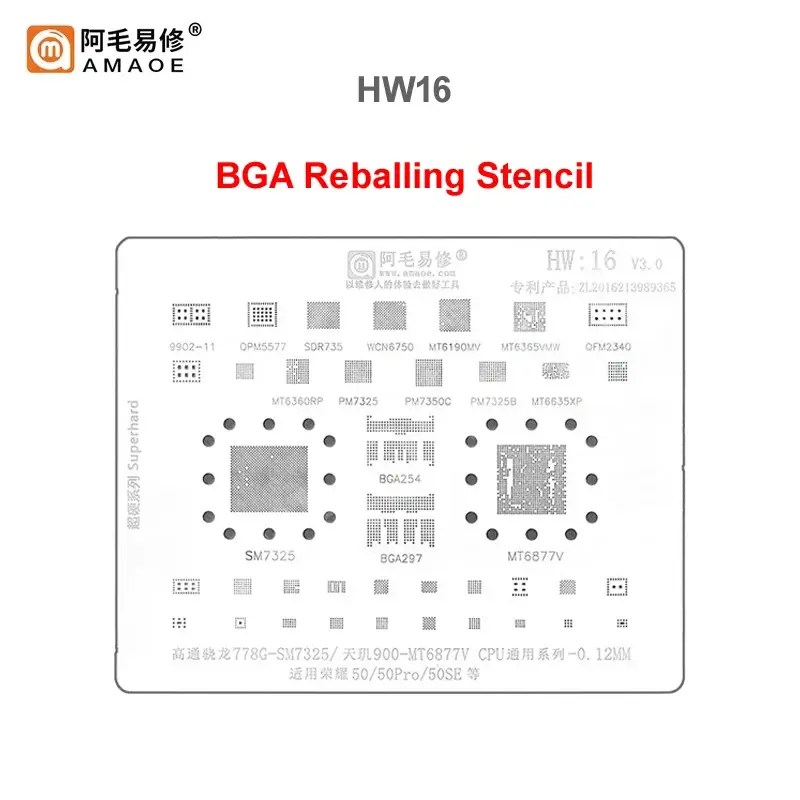

The Amaoe HW16 BGA Reballing Stencil-Original is your ultimate solution for precise, efficient reballing tasks in microelectronics repair. Designed with high-quality materials and advanced engineering, this stencil ensures accurate alignment and dependable performance every time. Amaoe HW16 BGA Reballing Stencil-Original
Durability and Compatibility
Built to withstand extensive use, the Amaoe HW16 features robust construction that resists wear and tear. It is compatible with a wide range of BGA chip models, making it a versatile choice for professionals and hobbyists alike. Amaoe HW16 BGA Reballing Stencil-Original
Simplify Your Workflow
Streamline your repair process with the ergonomic and easy-to-use Amaoe HW16 BGA Reballing Stencil. Whether you’re working on intricate electronics projects or replacing damaged components, this tool was designed to make reballing faster and more convenient without compromising accuracy. Amaoe HW16 BGA Reballing Stencil-Original
The Amaoe HW16 BGA Reballing Stencil is a precision-engineered tool that has become a staple for professional technicians specializing in Huawei smartphone repairs. Amaoe is widely regarded in the microsoldering community for its “Original” series stencils, which are characterized by high-density square holes and superior heat resistance. Amaoe HW16 BGA Reballing Stencil-Original
The HW16, in particular, is a “multi-purpose” stencil designed specifically for the Huawei Kirin ecosystem. It focuses on the CPU and RAM configurations found in flagship and mid-range devices from the P and Mate series. Amaoe HW16 BGA Reballing Stencil-Original
Technical Specifications: Amaoe HW16
Below is a detailed breakdown of the HW16 specifications. These metrics reflect the “Original” line standards, which prioritize alignment accuracy and longevity.
| Feature | Specification |
| Manufacturer | Amaoe (Authentic Original Series) |
| Model Number | HW16 |
| Supported Chipsets | HiSilicon Kirin 980, 970, 710, and associated RAM |
| Material | High-Grade Imported Japanese Stainless Steel |
| Stencil Thickness | 0.12mm (Standard for BGA precision) |
| Hole Type | Square Holes with Rounded Corners (Anti-drumming) |
| Heat Resistance | Up to 450°C to 500°C without deformation |
| Alignment Technology | CNC Laser Cut with micro-polishing |
| Application | BGA Reballing / IC Chip Solder Repair |
Deep Dive: Core Features
1. Material Composition and Durability
The HW16 is manufactured using high-quality stainless steel that undergoes a specific tempering process. This is crucial because reballing involves direct exposure to hot air guns. Lower-quality stencils often “bow” or warp under heat, causing solder paste to bleed between pads. The HW16 maintains its flatness, ensuring that every solder ball is uniform in height.
2. The “Square Hole” Advantage
Amaoe pioneered the use of square-shaped apertures for their BGA stencils. While traditional round holes are common, square holes allow for:
-
Easier Release: The solder balls are less likely to get stuck in the stencil after cooling. Amaoe HW16 BGA Reballing Stencil-Original
-
Precise Volume: They hold a more consistent amount of solder paste, leading to fewer shorts (bridging) under the CPU. Amaoe HW16 BGA Reballing Stencil-Original
3. Comprehensive IC Coverage
The HW16 is not just for a single chip; it is a “comprehensive” plate. It typically includes layouts for:
-
Kirin 980: The heart of the Huawei P30 and Mate 20 series.
-
Kirin 970: Found in the P20 and Mate 10 series.
-
Kirin 710: Common in Nova and Honor mid-range devices.
-
LPDDR4/4X RAM: The top-tier memory chips that are “stacked” (PoP – Package on Package) on these CPUs.
Best Practices for Using Amaoe HW16
To get the most out of this professional-grade stencil, technicians generally follow a specific workflow:
-
Cleaning: Ensure the IC chip is completely free of old solder and “underfill” (the black epoxy Huawei uses). Amaoe HW16 BGA Reballing Stencil-Original
-
Paste Application: Use a high-quality solder paste (usually $Sn63/Pb37$ or a lead-free equivalent like $SAC305$). Use a flat spatula to press the paste firmly into the HW16 square holes.
-
Heat Management: Set your hot air station to approximately 330°C with low airflow. Hold the stencil down with a pair of anti-magnetic tweezers to prevent movement. Amaoe HW16 BGA Reballing Stencil-Original
-
Cooling: Allow the stencil to cool for 5-10 seconds before lifting. This ensures the solder has solidified and won’t smear. Amaoe HW16 BGA Reballing Stencil-Original
Why Professionals Choose the “Original” Series
There are many “black” or “3D” stencils on the market, but the Amaoe HW16 Original remains a favorite because of its transparency and alignment. The steel is polished such that it doesn’t reflect light harshly under a microscope, making it much easier to align the thousands of tiny pads on a Kirin CPU with the holes in the stencil.
Furthermore, the 0.12mm thickness is the “Goldilocks” zone for Huawei repairs—thick enough to be sturdy, but thin enough to prevent overly large solder balls that would cause the CPU to sit too high on the logic board.
Comparison: HW16 vs. Generic Stencils
| Attribute | Amaoe HW16 (Original) | Generic/Copy Stencils |
| Warping | Minimal to none | High risk after 2-3 uses |
| Precision | $\pm 0.01\text{mm}$ | $\pm 0.05\text{mm}$ |
| Solder Release | Smooth, non-stick | Often requires “poking” out balls |
| Cost-Efficiency | High (Longer lifespan) | Low (Frequent replacement) |
The Amaoe HW16 is an essential investment for anyone serious about Huawei motherboard repair. It bridges the gap between a failed DIY attempt and a factory-standard repair.
