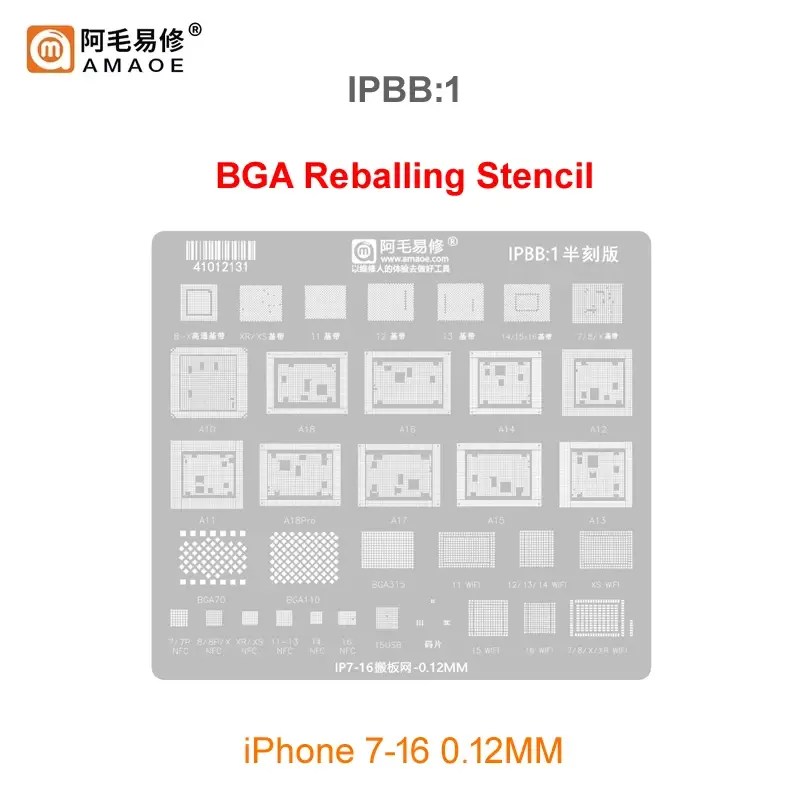

Amaoe IPBB1 BGA Reballing Stencil-Original
Achieve Precision with Amaoe IPBB1
The Amaoe IPBB1 BGA Reballing Stencil-Original is designed to provide premium quality and unmatched accuracy for your soldering and reballing tasks. Whether you’re working on delicate electronics or advanced repair projects, this stencil offers reliable performance for professional results. Amaoe IPBB1 BGA Reballing Stencil-Original
Durable Design for Professional Use
Crafted with high-grade materials, the Amaoe IPBB1 ensures durability and heat resistance, making it ideal for repetitive use in demanding environments. Its precise stencil layout minimizes errors, helping you accomplish tasks with efficiency and ease. Amaoe IPBB1 BGA Reballing Stencil-Original
Versatile Applications
Perfect for BGA chip reballing, this stencil adapts to various electronic repair needs, streamlining your workflow. Amaoe IPBB1 is the trusted tool for technicians, hobbyists, and electronics experts aiming for superior soldering quality. Amaoe IPBB1 BGA Reballing Stencil-Original
The Amaoe IPBB1 is a specialized, high-precision reballing stencil designed specifically for professional technicians working on Apple iPhone and iPad logic boards. Amaoe has built a reputation for creating stencils with superior thermal stability and “square hole” technology, which significantly reduces the risk of solder balls bridging during the heating process. Amaoe IPBB1 BGA Reballing Stencil-Original
Below is the comprehensive technical breakdown of the IPBB1 stencil. Amaoe IPBB1 BGA Reballing Stencil-Original
Technical Specifications: Amaoe IPBB1
| Category | Specification Details |
| Model Number | IPBB1 (Baseband/Power/Logic Series) |
| Brand | Amaoe (Authentic/Original) |
| Material | High-Grade Japanese Imported 304 Stainless Steel |
| Stencil Thickness | 0.12mm (Ultra-thin for precise paste deposition) |
| Hole Design | Square/Rectangular with Chamfered Edges |
| Heat Resistance | Up to 450°C – 500°C (Anti-bulge/Anti-warping) |
| Compatibility | iPhone 7 through iPhone 12 Pro Max / iPad Pro Series |
| Focus Components | Baseband (BB), Power Management (PMU), WiFi, Audio ICs |
| Manufacturing Process | High-speed Laser Cutting + Chemical Polishing |
Detailed Component Coverage
The IPBB1 is often referred to as a “Baseband and Small IC” master stencil. While it doesn’t cover the primary A-series CPU (which usually requires dedicated stencils like the IP12 or IP13 series), it focuses on the peripheral chips that commonly fail due to drop damage or thermal stress. Amaoe IPBB1 BGA Reballing Stencil-Original
1. Baseband (BB) Processors
The stencil includes patterns for Qualcomm and Intel baseband chips found in the iPhone 7, 8, X, and 11 series. These are critical for repairing “No Service” or “Searching” issues. Amaoe IPBB1 BGA Reballing Stencil-Original
2. Power Management ICs (PMIC)
It features layouts for the Main PMU and Small PMU chips. The 0.12mm thickness is specifically calibrated to ensure that these high-pin-count chips receive exactly the right amount of solder paste to prevent “shorts” under the chip. Amaoe IPBB1 BGA Reballing Stencil-Original
3. WiFi and Bluetooth Modules
It supports the specialized footprints for Broadcom and USI WiFi modules. Because these chips are often underfilled, the Amaoe stencil’s precision allows for clean reballing after the underfill has been scraped away. Amaoe IPBB1 BGA Reballing Stencil-Original
4. Audio and Charging ICs
The IPBB1 contains grids for the Audio IC (common on iPhone 7 “Loop Disease” repairs) and the Tigris/Tristar charging chips.
Key Features & Advantages
Square Hole Technology
Unlike cheaper stencils that use round holes, the Amaoe IPBB1 utilizes square holes.
-
The Benefit: Square holes allow the solder paste to release more easily when you lift the stencil. In round holes, surface tension often causes the paste to stick to the walls, leading to uneven solder balls.
Thermal Expansion Slots
If you look closely at an original IPBB1, you will see small “anti-deformation” cuts or slots between major IC sections.
-
The Benefit: When you apply high heat with a hot air station, metal naturally expands. These slots allow the metal to expand without “doming” or bowing upward in the center, which keeps the stencil flat against the chip.
0.12mm Precision Thickness
While some brands use 0.15mm or 0.1mm, Amaoe settled on 0.12mm for the IPBB1.
-
The Benefit: This is considered the “Goldilocks” thickness for iPhone logic board repair. It provides enough solder volume for a strong mechanical bond but is thin enough to prevent bridging on the 0.35mm to 0.4mm pitch components found in modern iPhones.
Best Practices for Using Amaoe IPBB1
To get the most out of this professional-grade tool, follow these steps:
-
Cleaning: Always clean the stencil with 99.9% Isopropyl Alcohol (IPA) before use. Even a tiny speck of dried flux in a hole will ruin a reball attempt.
-
Paste Preparation: Use a high-quality solder paste (e.g., 183°C Lead-Based). Spread the paste across the stencil using a scraper, then “dab” it with a lint-free cloth to remove excess oils.
-
Heat Management: Set your hot air station to approximately 330°C – 350°C with low airflow. Hold the stencil down firmly with tweezers to ensure no heat bypasses the holes.
-
Cooling: Let the stencil cool for 5-10 seconds before lifting. This ensures the solder balls have solidified completely.
Summary of Use
The Amaoe IPBB1 is not just a piece of metal; it is a calibrated instrument. For technicians performing board-level “micro-soldering,” it is the industry standard for reliability. By opting for the original Amaoe version over “no-name” clones, you ensure that the steel won’t warp after three uses and that the hole alignment is sub-micron perfect.
