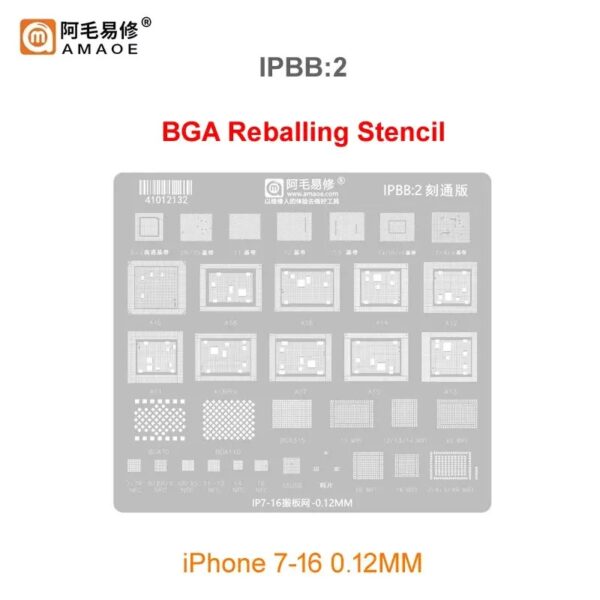

Amaoe IPBB2 BGA Reballing Stencil-Original
Exceptional Quality and Durability
The Amaoe IPBB2 BGA Reballing Stencil-Original is engineered for precision and consistent results. Made with durable materials, this stencil ensures long-lasting performance, making it an indispensable tool for both professionals and hobbyists.
Easy-to-Use Design
Streamline your repair projects effortlessly with this compact and reliable stencil. Its user-friendly design simplifies the BGA reballing process, reducing downtime and enhancing productivity.
Versatile Applications
Ideal for a wide range of motherboard repairs, the Amaoe IPBB2 BGA Reballing Stencil delivers unmatched accuracy for seamless solder ball alignment. Whether you are working on a smartphone, tablet, or other electronic devices, this stencil is your go-to solution.
The Amaoe IPBB2 BGA Reballing Stencil is a staple tool for professional technicians specializing in iPhone motherboard repairs. Amaoe has built a reputation for high-precision, “black-label” stencils that offer better thermal stability than generic silver alternatives. Amaoe IPBB2 BGA Reballing Stencil-Original
The IPBB2 specifically focuses on the “Bottom Board” or peripheral IC components for a specific range of iPhone models—primarily the iPhone 11 through the iPhone 12 Pro Max era.
Below is the detailed technical breakdown and specifications of this stencil. Amaoe IPBB2 BGA Reballing Stencil-Original
Technical Specifications: Amaoe IPBB2
| Feature | Specification Details |
| Model Number | Amaoe IPBB2 (iPhone Bottom Board Series) |
| Material | High-Grade Japanese Imported Steel (High-Carbon) |
| Color/Finish | Matte Black (Anti-glare for microscope work) |
| Stencil Thickness | 0.12mm (Ultra-precision) |
| Hole Design | Square Hole with Rounded Corners (Anti-Stuck Design) |
| Compatible Models | iPhone 11, 11 Pro, 11 Pro Max, 12, 12 mini, 12 Pro, 12 Pro Max |
| Supported ICs | Baseband, Wi-Fi, Bluetooth, Audio IC, Power Management (PMIC), NFC |
| Heat Resistance | Up to 450°C (Anti-warping/Anti-bulge technology) |
| Manufacturing Process | High-precision Laser Cutting & Chemical Etching |
Key Features & Design Philosophy
1. Square Hole Rounded Corners
Unlike cheaper stencils that use circular holes, the IPBB2 uses square holes with micro-rounded corners. This design serves two critical purposes:
-
Easy Release: It prevents the solder paste from sticking to the stencil when you lift it.
-
Uniform Solder Balls: It ensures that every BGA pad receives an identical volume of solder, preventing shorts or “bridge” defects.
2. High-Temperature “Black” Steel
The characteristic black finish isn’t just for aesthetics. It is a specialized heat-treatment coating that:
-
Reduces light reflection under a microscope, which prevents eye strain for the technician.
-
Distributes heat more evenly across the plate, significantly reducing the “bulging” effect that occurs when applying a hot air gun to thin metal.
3. Precise 0.12mm Thickness
In the world of micro-soldering, 0.02mm can be the difference between a successful boot and a dead CPU. The 0.12mm thickness is considered the “Goldilocks” zone for iPhone baseband and peripheral ICs—thick enough to provide structural integrity, but thin enough to ensure the solder balls don’t become excessively large and touch neighboring pads.
IC Coverage Matrix
The IPBB2 is essentially a “multi-tool” for the lower logic board. If you are working on network or power issues, this stencil likely contains the specific pattern you need.
| Component Group | Common Issues Addressed |
| Baseband (Intel/Qualcomm) | “No Service” errors, IMEI missing, Searching… |
| Wi-Fi / Bluetooth IC | Greyed out Wi-Fi toggle, connectivity drops. |
| Audio Codec | No sound, microphone failure, boot loops. |
| NFC Controller | Apple Pay failures, “Contactless” read errors. |
| Charging IC (U2/Tigris) | Device not charging, fake charging, fast battery drain. |
Professional Usage Tips
To maximize the lifespan of your Amaoe IPBB2 and ensure a perfect reball every time, consider these industry-standard practices:
-
Solder Paste Choice: Use a high-quality 183°C (Leaded) solder paste for most peripheral ICs. Ensure the paste is slightly “dry” (blot it with a lint-free wipe) before applying it to the stencil to prevent “bleeding” under the steel. Amaoe IPBB2 BGA Reballing Stencil-Original
-
Cleaning: Never use a metal scraper to clean the stencil. Use a soft-bristled toothbrush and 99% Isopropyl Alcohol (IPA). Metal scrapers can create burrs in the holes, which will cause solder balls to stick in the future. Amaoe IPBB2 BGA Reballing Stencil-Original
-
Temperature Control: While the stencil is rated for high heat, it is best practice to use a low-airflow setting on your hot air station (usually between 30-40 airflow) at roughly 300°C to 330°C to prevent the stencil from expanding too rapidly. Amaoe IPBB2 BGA Reballing Stencil-Original
Why Choose the IPBB2 Over Generic Kits?
Generic stencils often suffer from thermal deformation. When you apply heat, the metal expands and “bows” upward, creating a gap between the IC and the stencil. This leads to solder bridges and ruined chips. The Amaoe IPBB2’s high-carbon steel composition is specifically engineered to remain flat even under direct heat, making it the preferred choice for high-success-rate repairs. Amaoe IPBB2 BGA Reballing Stencil-Original
Note: The IPBB2 is part of a larger ecosystem. While it covers the peripheral ICs for the iPhone 11 and 12 series, you may still need the IP11 or IP12 specific stencils for the Middle Layer (interposer) reballing. Amaoe IPBB2 BGA Reballing Stencil-Original
