Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
Enhance Your Reballing Precision

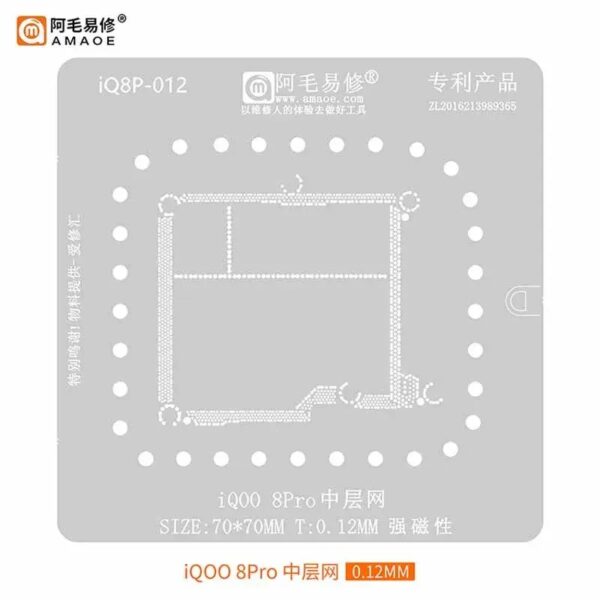

The Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro is a reliable and original solution for precision reballing tasks on iQoo 8Pro devices. Designed with high-quality materials, this stencil ensures accurate and consistent results, making it ideal for both professional and DIY repair enthusiasts. Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
Engineered for Durability
Crafted from robust materials, the Amaoe iQ8P-012 offers exceptional durability and resistance to deformation. Its precise cutouts ensure a perfect fit for iQoo 8Pro components, delivering an efficient and hassle-free reballing experience every time. Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
Wide Application and Ease of Use
This original BGA reballing stencil is designed specifically for iQoo 8Pro, but it’s versatile enough to benefit those working on similar models. Its user-friendly design makes it simple to handle, streamlining your repair workflow while maintaining accuracy and quality. Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
-
Motherboard Layer Separation: Repairing the “sandwich” board often required for signal issues or power management failures.
-
CPU & RAM Reballing: While primarily a middle-layer stencil, these templates often include the footprints for the Snapdragon 888+ or Snapdragon 8 Gen 1 (depending on the regional variant) found in the iQoo 8 series.
-
Data Recovery: When a device is severely damaged, transferring the ICs to a “donor” board requires the absolute precision of an original Amaoe stencil to ensure the data-bearing chips are not damaged during the reflow process.
## Maintenance and Best Practices
To ensure the longevity of the Amaoe iQ8P-012, follow these professional guidelines:
-
Cleaning: Always use 99% Isopropyl Alcohol (IPA) or specialized PCB cleaner after every use. Solder paste residue can harden and obstruct the apertures.
-
Storage: Keep the stencil in its original sleeve or a flat protective folder. Even a slight bend can ruin the alignment for future repairs.
-
Heat Management: When reballing, apply heat in a circular motion rather than focusing on a single point for too long. While the stencil is heat-resistant, even distribution ensures the best results.
Note: This stencil is intended for professional use only. It requires a high-quality microscope, soldering flux, and a controlled hot air station to achieve successful results on the iQoo 8 Pro motherboard.
The Amaoe iQ8P-012 BGA Reballing Stencil is a professional-grade precision tool engineered specifically for the iQoo 8 Pro smartphone. In the world of micro-soldering and motherboard repair, Amaoe has established itself as the gold standard, particularly for high-density Android components where thermal stability and alignment accuracy are non-negotiable. Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
The “0.12” in the model name refers to the stencil’s thickness ($0.12\text{mm}$), a measurement carefully chosen to balance structural rigidity with the optimal volume of solder paste required for modern BGA (Ball Grid Array) chips. Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
## Technical Specifications Table
The following table outlines the core physical and functional specifications of the Amaoe iQ8P-012.
Specification Category Details Brand Amaoe (Authentic/Original) Model Number iQ8P-012 Compatibility Vivo iQoo 8 Pro (Middle Layer & ICs) Material Japanese Imported High-Grade Stainless Steel Thickness $0.12\text{mm}$ Hole Design Square/Rounded Square (Anti-Drum/Anti-Warp) Hole Pitch High-precision laser-cut (Device Specific) Temperature Resistance Up to $400\text{°C}$ (deformation resistant) Processing Technology Chemical Etching & Laser Polishing Color Metallic Silver (Natural Steel Finish) Weight Approx. $0.02\text{kg}$
## Design and Engineering Features
1. Precision Aperture Alignment
The iQ8P-012 is designed with a 1:1 pad-to-hole ratio based on the iQoo 8 Pro motherboard schematic. Unlike universal stencils, this model features specific layouts for the “Middle Layer” of the motherboard. This is crucial for the iQoo 8 Pro, which utilizes a sandwich-style PCB design. The stencil ensures that hundreds of microscopic solder points align perfectly during the rejoining of the upper and lower boards. Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
2. Anti-Deformation Technology
A common issue in reballing is “stencil bulging” when heat is applied. Amaoe utilizes High-Toughness Japanese Steel. This material has a lower coefficient of thermal expansion than standard alloys, meaning it remains flat even when a hot air gun is used at temperatures around $350\text{°C}$ to $380\text{°C}$. Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
3. Optimized Solder Flow
The holes are not just simple cut-outs; they are tapered and polished. This allows the solder paste to release cleanly when the stencil is lifted, preventing “cold joints” or bridging. The $0.12\text{mm}$ depth is calibrated to provide the exact amount of tin required for a robust mechanical and electrical connection without over-applying. Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
## Application and Use Cases
The iQ8P-012 is an essential tool for technicians performing the following high-level repairs:
Motherboard Layer Separation: Repairing the “sandwich” board often required for signal issues or power management failures.
CPU & RAM Reballing: While primarily a middle-layer stencil, these templates often include the footprints for the Snapdragon 888+ or Snapdragon 8 Gen 1 (depending on the regional variant) found in the iQoo 8 series.
Data Recovery: When a device is severely damaged, transferring the ICs to a “donor” board requires the absolute precision of an original Amaoe stencil to ensure the data-bearing chips are not damaged during the reflow process.
## Maintenance and Best Practices
To ensure the longevity of the Amaoe iQ8P-012, follow these professional guidelines:
Cleaning: Always use 99% Isopropyl Alcohol (IPA) or specialized PCB cleaner after every use. Solder paste residue can harden and obstruct the apertures.
Storage: Keep the stencil in its original sleeve or a flat protective folder. Even a slight bend can ruin the alignment for future repairs.
Heat Management: When reballing, apply heat in a circular motion rather than focusing on a single point for too long. While the stencil is heat-resistant, even distribution ensures the best results.
Note: This stencil is intended for professional use only. It requires a high-quality microscope, soldering flux, and a controlled hot air station to achieve successful results on the iQoo 8 Pro motherboard. Amaoe iQ8P-012 BGA Reballing Stencil-Original For iQoo 8Pro
