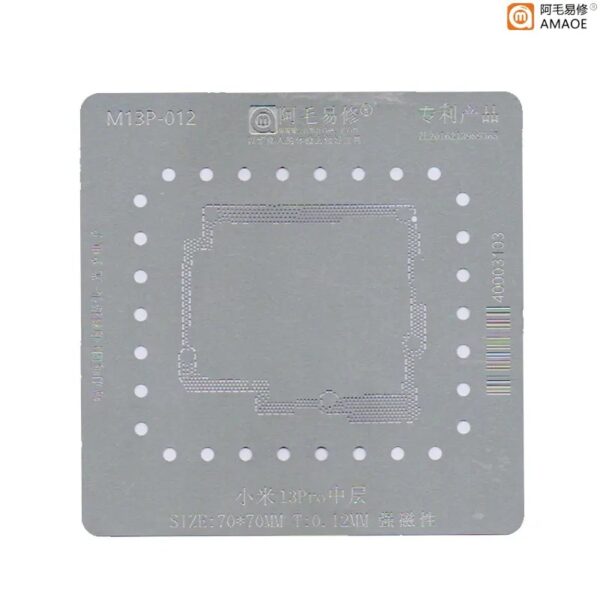

Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
Precision Engineering for Optimal Results
The Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro is designed with unmatched precision, ensuring seamless compatibility with the Xiaomi 13 Pro. Crafted to deliver reliable and accurate reballing, this tool simplifies your repair tasks and guarantees top-tier results. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
Durable and High-Quality
Made from premium-grade materials, this original stencil offers exceptional durability and resistance to wear and tear. Its middle-layer construction ensures that it can handle delicate procedures with ease while maintaining its integrity over time. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
Perfect Fit for Xiaomi 13 Pro
Tailored specifically for Xiaomi 13 Pro, the Amaoe M13P-012 stencil ensures precise alignment and compatibility. Whether you’re repairing or reballing delicate components, this stencil provides the accuracy you need to execute flawless work. Invest in this essential tool to elevate your repair experience. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
The Amaoe M13P-012 Middle Layer BGA Reballing Stencil is a precision-engineered tool specifically designed for the Xiaomi 13 Pro. As mobile motherboards become increasingly complex, moving toward “sandwich” or “stacked” PCB designs, the middle layer connection becomes the most common failure point during heavy repairs or drop impacts. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
This stencil is part of Amaoe’s renowned “Square Hole” series, which has become the industry standard for professional micro-soldering technicians due to its anti-bulge properties and high heat resistance. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
Technical Specifications: Amaoe M13P-012
| Feature | Specification Details |
| Model Number | Amaoe M13P-012 (Middle Layer) |
| Compatible Device | Xiaomi 13 Pro (M13P) |
| Material Composition | High-Quality Japanese Imported Stainless Steel |
| Hole Design | Precision Square Holes (CNC Laser Cut) |
| Stencil Thickness | 0.12mm (Standardized for middle frame height) |
| Heat Resistance | High Thermal Stability (Resistant to warping up to 450°C) |
| Alignment Type | Fixed-position alignment for logic board components |
| Application | BGA Reballing, Logic Board Repair, Sandwich Board Reflow |
| Finish | Smooth, Burr-free edges for easy paste release |
Key Features & Professional Benefits
1. High-Grade Japanese Steel
The M13P-012 is manufactured using high-grade imported steel. This is crucial because, during the reballing process, a technician applies direct heat using a hot air station. Inferior steels often “bow” or “bulge” when heated, causing solder paste to leak between the holes and create shorts. Amaoe’s steel maintains its flat profile even under repeated thermal stress.
2. The Square Hole Advantage
Unlike traditional round-hole stencils, Amaoe utilizes square-shaped apertures. This design provides several advantages:
-
Better Paste Release: Solder paste releases more cleanly from square corners than from round walls, leading to more uniform solder balls.
-
Alignment Accuracy: The square holes are laser-cut to match the exact footprint of the Xiaomi 13 Pro’s middle layer pads, ensuring that every point of contact is perfectly centered.
3. Optimized Thickness (0.12mm)
The 0.12mm thickness is specifically calibrated for the Xiaomi 13 Pro’s middle layer. If a stencil is too thin, the solder balls will be too small to bridge the gap between the upper and lower boards. If it is too thick, the balls may be too large, causing bridges (shorts) when the “sandwich” is pressed together.
The Reballing Process for Xiaomi 13 Pro
The Xiaomi 13 Pro uses a stacked motherboard design to save space for its large camera sensors and battery. When performing a CPU swap or repairing water damage, the two boards must be separated. The Amaoe M13P-012 is used to “re-tin” the middle frame that connects these two boards. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
Step-by-Step Application:
-
Cleaning: The old solder must be removed from the motherboard pads using a soldering iron and desoldering wick.
-
Positioning: Place the M13P-012 stencil over the middle frame of the board. The stencil’s cutouts will align perfectly with the BGA pads.
-
Paste Application: Apply high-quality solder paste (usually $183^{\circ}\text{C}$ or $138^{\circ}\text{C}$ depending on the repair type) across the stencil using a spatula.
-
Heating: Using a hot air station at a controlled temperature, heat the stencil evenly. The paste will melt into uniform spheres within the square holes.
-
Separation: Once cooled, the stencil is removed, leaving behind perfectly formed solder balls ready for the “sandwich” reassembly.
Why Choose “Original Amaoe”?
In the repair market, many “AAA” or “OEM” clones exist. However, the Original Amaoe M13P-012 is preferred for:
-
Anti-Static Coating: Reduces the risk of ESD (Electrostatic Discharge) damaging sensitive Xiaomi ICs.
-
Durability: A single Amaoe stencil can be used for hundreds of repairs without losing its shape.
-
Precision: The laser-cutting process ensures there are no burrs or microscopic metal shavings that could cause a hidden short circuit.
Storage and Maintenance
To ensure the longevity of your M13P-012 stencil:
-
Clean Immediately: Use 99% Isopropyl Alcohol (IPA) to remove flux residue immediately after use. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
-
Avoid Physical Pressure: Do not bend the stencil; even a slight crease can ruin the alignment for future repairs. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
-
Store Flat: Keep the stencil in its original packaging or a dedicated stencil organizer to prevent scratches. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
Note for Technicians: When working on the Xiaomi 13 Pro, ensure you are using a professional pre-heating station in conjunction with this stencil to prevent board warping during the separation and rejoining process. Amaoe M13P-012 Middle Layer BGA Reballing Stencil-Original For Xiaomi 13Pro
