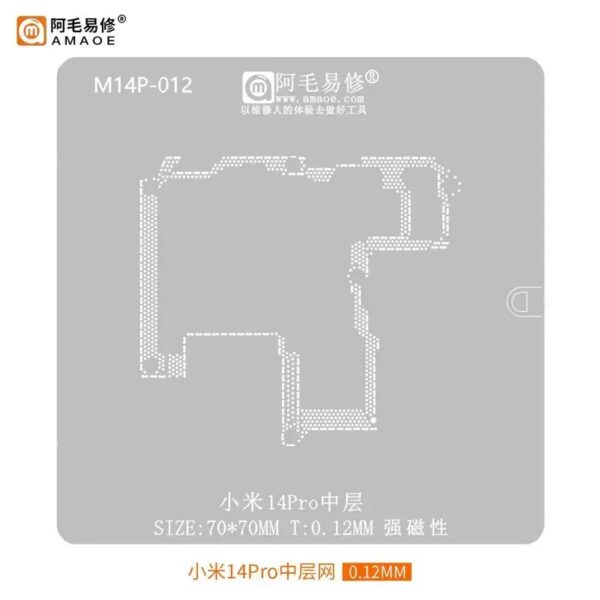

Amaoe M14P-012 Middle Layer Reballing Stencil-Original For Xioami 14Pro
Precision Engineered for Xiaomi 14 Pro
The Amaoe M14P-012 Middle Layer Reballing Stencil-Original For Xioami 14Pro is crafted specifically for Xiaomi 14 Pro, ensuring flawless alignment and smooth reballing. Its original build guarantees compatibility with the middle layer components, making it a trusted choice for professionals. Amaoe M14P-012 Middle Layer Reballing Stencil-Original For Xioami 14Pro
Reliable and Durable Material
Constructed with premium-grade materials, this stencil offers exceptional durability for repeated use. Its sturdy design and precise cutouts ensure an effortless and accurate reballing process without compromising quality. Amaoe M14P-012 Middle Layer Reballing Stencil-Original For Xioami 14Pro
Enhance Professional Repairs
Whether for high-precision repairs or system-level adjustments, the Amaoe M14P-012 stencil provides the ideal solution. Optimize your repair toolkit with this original stencil, designed to meet the demands of professional electronics technicians requiring reliability and precision.
The Amaoe M14P-012 is a professional-grade repair tool specifically engineered for the Xiaomi 14 Pro. In the world of microsoldering, reballing the “sandwich” board (the stacked PCB design) requires extreme precision. This stencil is designed to handle the middle layer interposer, which connects the top and bottom logic boards.
Below is the comprehensive breakdown of the specifications, material science, and application details for this specific stencil.
Technical Specifications Table
| Feature | Specification Details |
| Model Number | Amaoe M14P-012 |
| Compatibility | Xiaomi 14 Pro (Middle Layer / Interposer) |
| Material | High-Grade Imported Japanese Steel |
| Stencil Thickness | 0.12mm (Ultra-thin precision) |
| Hole Type | Square holes with rounded corners (Anti-stuck design) |
| Heat Resistance | Up to 450°C (High thermal stability) |
| Manufacturing Process | Laser Cut / Chemical Etching Hybrid |
| Application | BGA Reballing / Logic Board Layering |
| Alignment Style | Hand-alignment or Magnetic Base compatible |
Deep Dive: Material and Design Philosophy
The Amaoe M14P-012 isn’t just a piece of metal; it’s a calculated solution for common reballing frustrations like “stencil bulging” and “solder bridging.“
1. High-Grade Japanese Steel
Amaoe utilizes a specific alloy of stainless steel that balances flexibility with rigidity. When you apply heat via a hot air station, metal naturally expands. This stencil is treated to minimize thermal expansion, ensuring that the holes stay aligned with the pads on the Xiaomi 14 Pro motherboard even as temperatures climb toward $183^{\circ}C$ (for leaded paste) or $217^{\circ}C$ (for lead-free paste). Amaoe M14P-012 Middle Layer Reballing Stencil-Original For Xioami 14Pro
2. The 0.12mm Thickness Standard
The thickness is a critical variable. If the stencil is too thick, the solder balls become too large, causing shorts when the boards are compressed. If it’s too thin, the balls won’t make a reliable connection. The 0.12mm thickness is the “Goldilocks” zone for Xiaomi’s modern interposer designs, providing just enough volume for a structurally sound joint without risking overflow. Amaoe M14P-012 Middle Layer Reballing Stencil-Original For Xioami 14Pro
3. Square Holes with Rounded Corners
Traditional round holes often suffer from “solder paste suction,” where the paste stays stuck in the stencil when you lift it. Amaoe uses laser-cut square holes with slightly radiused corners. This geometry allows the solder paste to release cleanly, ensuring every single pad on the dense Xiaomi 14 Pro middle layer gets a uniform “loaf” of solder. Amaoe M14P-012 Middle Layer Reballing Stencil-Original For Xioami 14Pro
Operational Workflow for Xiaomi 14 Pro
Reballing a middle layer is a high-stakes task. One missing ball can mean the phone loses Wi-Fi, Camera, or even fails to boot.
-
Preparation: Clean the middle frame of the Xiaomi 14 Pro using a soldering iron and desoldering wick until the pads are flat.
-
Positioning: Place the M14P-012 over the board. The stencil is designed with etched markings that correspond to components on the PCB to aid in perfect alignment.
-
Paste Application: Use a high-quality solder paste (usually $183^{\circ}C$ 63/37 alloy for easier rework). Scrape the paste across the stencil at a 45-degree angle.
-
Heating: Use a hot air gun with a wide nozzle.
-
Temperature: Set to approx $300^{\circ}C$ – $330^{\circ}C$ (actual air temp).
-
Airflow: Low (to prevent the stencil from warping or the paste from blowing out).
-
-
Cooling & Release: Allow the solder to solidify (it will turn from shiny to dull for a split second) before gently lifting the stencil.
Why “Original Amaoe” Matters
In the aftermarket tool industry, clones are common. However, original Amaoe stencils are preferred by technicians for their durability. Cheaper stencils often warp after 2-3 uses, becoming “bowed” in the center. An original M14P-012 is designed to withstand hundreds of heat cycles without losing its flat profile, which is essential for the perfectly flat “sandwich” required by Xiaomi’s flagship hardware. Amaoe M14P-012 Middle Layer Reballing Stencil-Original For Xioami 14Pro
Key Maintenance Tips:
-
Cleaning: Always clean the stencil immediately after use with 99% Isopropyl Alcohol (IPA) and a soft-bristled brush.
-
Storage: Store flat. Even a small kink in the 0.12mm steel can ruin its ability to sit flush on a PCB.
-
De-fluxing: Ensure no dried flux remains in the corners of the square holes, as this is the primary cause of uneven ball formation in subsequent uses.
