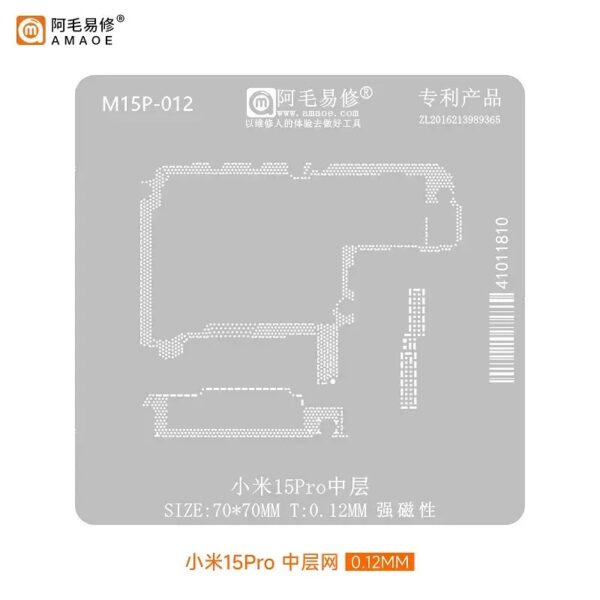

Amaoe M15P-012 Middle Layer Reballing Stencil-Original For Xioami 15Pro
Premium Quality for Precision Repairs
The Amaoe M15P-012 Middle Layer Reballing Stencil-Original For Xioami 15Pro is specially designed to cater to your advanced repair needs for the Xiaomi 15Pro. Crafted with precision and durability in mind, this original stencil ensures accurate alignment and seamless functionality during device repairs. Amaoe M15P-012 Middle Layer Reballing Stencil-Original For Xioami 15Pro
Engineered for Xiaomi 15Pro Compatibility
Tailored for the Xiaomi 15Pro, this middle layer stencil matches the exact specifications required for reballing tasks. Its perfect fit ensures an efficient and hassle-free repairing process, making it ideal for professionals and enthusiasts alike. Amaoe M15P-012 Middle Layer Reballing Stencil-Original For Xioami 15Pro
Built to Last with High-Grade Materials
Manufactured with high-quality materials, the Amaoe M15P-012 reballing stencil resists wear and tear, maintaining its shape and performance over repeated use. This original piece is a reliable addition to your repair toolkit, delivering outstanding durability and precision consistently. Amaoe M15P-012 Middle Layer Reballing Stencil-Original For Xioami 15Pro
The Amaoe M15P-012 Middle Layer Reballing Stencil is a precision-engineered tool designed specifically for the Xiaomi 15 Pro. As mobile devices move toward “sandwich” motherboard designs to save space, middle-layer reballing has become a critical skill for board-level technicians.Amaoe M15P-012 Middle Layer Reballing Stencil-Original For Xioami 15Pro
This stencil is part of Amaoe’s high-end lineup, known for its heat resistance and alignment precision. Below is the comprehensive breakdown of its specifications, design philosophy, and technical application.
Technical Specifications: Amaoe M15P-012
| Feature | Specification Details |
| Model Number | M15P-012 |
| Compatible Device | Xiaomi 15 Pro (Middle Layer / Interposer) |
| Material | High-Grade Imported Japanese Steel |
| Thickness | 0.12mm (Ultra-thin for precision) |
| Hole Type | Square holes with rounded corners (Anti-clogging) |
| Heat Resistance | Up to 450°C without deformation |
| Stencil Type | Direct Heat / BGA Reballing Stencil |
| Manufacturer | Amaoe (Original Equipment) |
| Process | Laser cutting with CNC finishing |
| Alignment Marks | Integrated etched guides for motherboard positioning |
Comprehensive Overview
1. Material Science and Durability
The M15P-012 is fabricated from imported Japanese steel. Unlike cheaper generic stencils that use low-grade alloys, this material maintains a high “memory” threshold. When subjected to the intense heat of a hot air station, the steel expands uniformly and returns to its original flat state upon cooling. This prevents the “warping” or “doming” effect that often leads to uneven solder balls or bridged connections.
2. The 0.12mm Precision Factor
The thickness of a stencil dictates the volume of solder paste deposited. At 0.12mm, the Amaoe M15P-012 strikes the perfect balance for the Xiaomi 15 Pro’s middle layer.
-
If it were thicker: The solder balls would be too large, causing shorts (bridging) when the two motherboard halves are pressed together.
-
If it were thinner: The solder joints would be “dry” or weak, leading to structural failure or intermittent signal issues after the phone is dropped.
3. Square Hole Design with Rounded Corners
Amaoe utilizes a proprietary laser-cutting technique that creates square holes with microscopic rounded corners. This design serves two purposes:
-
Paste Release: It allows the solder paste to release cleanly from the stencil when it is lifted, ensuring every pad has an identical amount of solder.
-
Ball Formation: During the heating phase, the solder naturally pulls into a perfect sphere. The square base provides a larger surface area for the paste to grip the pad before the reflow occurs.
Application in Xiaomi 15 Pro Repair
The Xiaomi 15 Pro utilizes a dual-stacked motherboard. This architecture places the CPU, RAM, and Storage on the primary layers, while the secondary layers handle RF (Radio Frequency) and power management. These two boards are joined by a “middle frame” or “interposer.“
When to use the M15P-012:
-
Sandwich Separation: When the phone has no signal, Wi-Fi issues, or “no power” after a hard drop, the connection between the two boards often breaks.
-
CPU Reballing: If the CPU requires a re-roll, the technician must first separate the layers, clean the old solder, and use the M15P-012 to apply fresh solder balls to the middle frame.
-
Water Damage: Corrosion often hides between the two layers; the stencil is required to reassemble the boards after ultrasonic cleaning.
Best Practices for Using Amaoe Stencils
To maximize the lifespan of the M15P-012 and ensure a 100% success rate on the Xiaomi 15 Pro:
-
Cleaning: Always use 99% Isopropyl Alcohol (IPA) to clean the stencil before and after use. Even microscopic dried paste can cause the next reballing attempt to fail.
-
Paste Selection: Use a high-quality “Medium Temperature” (183°C) or “Low Temperature” (138°C) solder paste, depending on the specific repair requirements. Ensure the paste is slightly dry (blot it with a lint-free wipe) for better consistency.
-
Temperature Control: Set your hot air station to approximately 330°C–350°C with low airflow. High airflow can cause the stencil to vibrate or the solder balls to jump out of their sockets.
-
Pressure: Use anti-static tweezers to hold the stencil firmly against the PCB. Amaoe stencils feature etched alignment marks that line up with the screw holes or components on the Xiaomi 15 Pro board to ensure perfect registration.
Note: This is a professional-grade tool. Attempting middle-layer reballing on a flagship device like the Xiaomi 15 Pro without prior experience on “practice boards” is not recommended, as excessive heat can easily delaminate the PCB.
