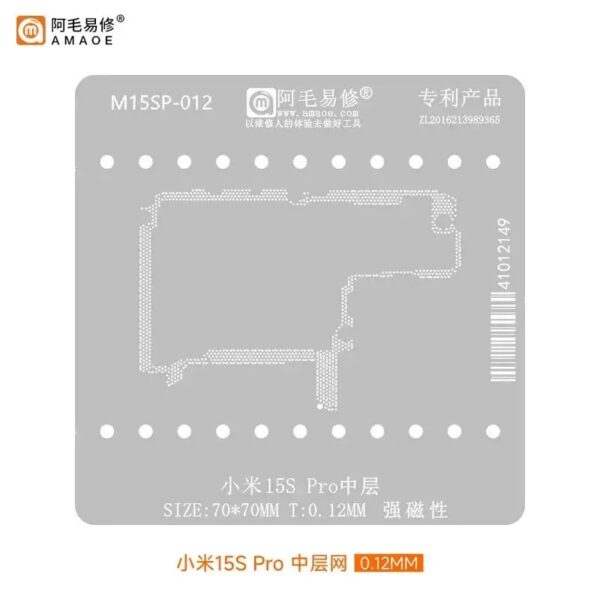

Amaoe M15SP-012 Middle Layer Reballing Stencil-Original For Xiaomi 15s Pro
Exceptional Craftsmanship for Precision Repairs
The Amaoe M15SP-012 Middle Layer Reballing Stencil-Original For Xiaomi 15s Pro is specifically designed to ensure a seamless repair experience for Xiaomi 15s Pro devices. Built for accuracy and reliability, this original stencil supports professionals in achieving efficient and error-free motherboard reballing. Amaoe M15SP-012 Middle Layer Reballing Stencil-Original For Xiaomi 15s Pro
Durable and High-Quality Material
Constructed with premium-grade materials, this reballing stencil offers durability and consistent precision. Its middle-layer design ensures stability during usage, reducing risks of misalignment while providing smooth application—perfect for intricate repair tasks. Amaoe M15SP-012 Middle Layer Reballing Stencil-Original For Xiaomi 15s Pro
Engineered for Xiaomi 15s Pro Compatibility
Tailored for the Xiaomi 15s Pro, this stencil matches the device’s motherboard specifications perfectly, allowing worry-free repairs for technicians. Enjoy the confidence of working with a product focused exclusively on Xiaomi models, ensuring flawless results every time. Amaoe M15SP-012 Middle Layer Reballing Stencil-Original For Xiaomi 15s Pro
The Amaoe M15SP-012 is a professional-grade precision tool specifically engineered for the “middle layer” reballing of the Xiaomi 15s Pro motherboard. In the world of high-end mobile repair, particularly with modern sandwich-style (stacked) logic boards, the quality of your stencil determines whether a repair succeeds or ends in a short circuit. Amaoe M15SP-012 Middle Layer Reballing Stencil-Original For Xiaomi 15s Pro
Below is a comprehensive breakdown of the specifications, material science, and application details for this specific model. Amaoe M15SP-012 Middle Layer Reballing Stencil-Original For Xiaomi 15s Pro
Technical Specifications: Amaoe M15SP-012
| Feature | Specification Detail |
| Model Number | M15SP-012 (Specialized Series) |
| Brand | Amaoe (Authentic/Original) |
| Compatibility | Xiaomi 15s Pro (Middle Layer / Interposer) |
| Material | High-Grade Japanese Imported 304 Stainless Steel |
| Template Thickness | 0.12mm (Ultra-precision gauge) |
| Hole Type | Square Hole with Rounded Corners (Anti-bulge design) |
| Heat Resistance | Up to 450°C (Anti-warping properties) |
| Manufacturing Process | High-precision Laser Cutting & CNC Finishing |
| Stencil Coating | Anti-static / Non-stick surface treatment |
| Alignment Marks | Etched physical alignment guides for IC positioning |
| Application | BGA Reballing, Chip Desoldering, Logic Board Layering |
In-Depth Feature Analysis
1. Material Integrity and Thermal Stability
The Amaoe M15SP-012 utilizes imported Japanese steel, which is critical for thermal expansion management. When you apply a heat gun to a stencil to melt solder paste, inferior metals expand unevenly, causing the stencil to “bow” or “pop” up. This leads to solder bridging. The M15SP-012 is designed to remain flat even under consistent heat, ensuring that each solder ball remains isolated and perfectly formed. Amaoe M15SP-012 Middle Layer Reballing Stencil-Original For Xiaomi 15s Pro
2. The 0.12mm Precision Thickness
While many generic stencils use a standard 0.1mm or 0.15mm thickness, Amaoe has calibrated the M15SP-012 to 0.12mm. This specific thickness is the “Goldilocks zone” for the Xiaomi 15s Pro’s middle layer. It allows for enough solder volume to ensure a strong structural bond between the upper and lower logic boards without providing so much solder that it overflows and causes shorts between the dense pinouts. Amaoe M15SP-012 Middle Layer Reballing Stencil-Original For Xiaomi 15s Pro
3. Square Hole with Rounded Corners
If you look closely at the apertures of the M15SP-012, you will notice they aren’t perfectly sharp squares. They feature rounded interior corners. This is a intentional design choice to:
-
Prevent solder paste from getting stuck in the corners.
-
Ensure a smooth “release” when lifting the stencil after heating.
-
Promote a uniform spherical shape for the solder balls once they reach liquidus temperature.
4. Specialized for Sandwich Board Architecture
The Xiaomi 15s Pro utilizes a stacked motherboard design to save internal space for larger batteries and cooling systems. The “Middle Layer” (interposer) is the most difficult part to service. The M15SP-012 provides the exact footprint for the perimeter pads and the central grounding points, ensuring that the communication lines between the CPU (Top layer) and the RF/Power components (Bottom layer) are perfectly synced.
Best Practices for Usage
To get the most out of the Amaoe M15SP-012, follow these professional guidelines:
-
Cleaning: Before use, clean the stencil with 99% Isopropyl Alcohol (IPA) and a lint-free cloth. Any debris in the holes will result in “missing” solder balls.
-
Paste Selection: Use a high-quality “Middle Layer” specific solder paste (usually 183°C leaded or 138°C low-melt, depending on the specific repair requirements of the Xiaomi 15s Pro).
-
Pressure: Apply even pressure using tweezers on the designated “pressure points” of the stencil to ensure it sits flush against the PCB.
-
Heat Management: Set your hot air station to a moderate airflow. High airflow can push the stencil up or blow solder paste out of the apertures before it melts.
Why “Original Amaoe” Matters?
The market is flooded with “AAA” replicas of Amaoe stencils. However, the Original M15SP-012 is etched with higher precision. Counterfeit stencils often have burrs on the inside of the holes, which catch the solder balls and pull them off the board when you lift the stencil. The original Amaoe series undergoes a secondary polishing process to ensure the hole walls are as smooth as glass.
Note: This stencil is a professional tool. It is intended for use by technicians who have experience with micro-soldering and BGA (Ball Grid Array) rework. Improper use can result in permanent damage to the Xiaomi 15s Pro logic board.
