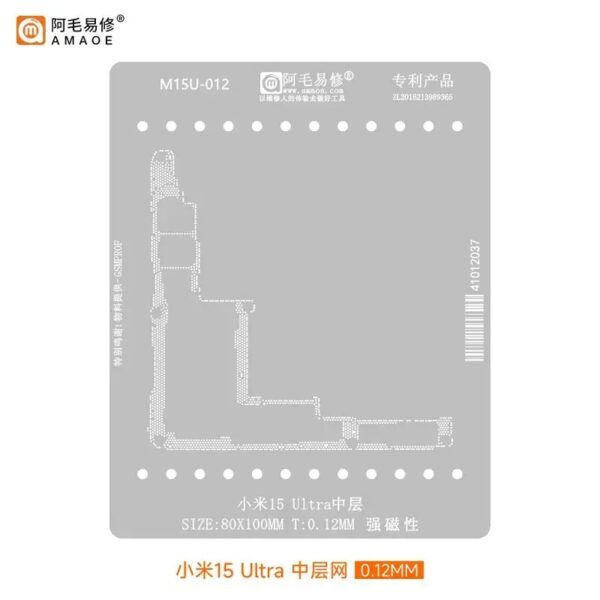

Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
Upgrade Your Repair Toolkit
Introducing the Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra designed specifically for Xiaomi Mi 15 Ultra enthusiasts and professionals. This original stencil ensures precise alignment and efficiency, making your repair process seamless and accurate. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
Engineered for Precision
Crafted with high-quality materials, this stencil offers unparalleled durability and precision during the reballing process. Whether you’re replacing or reworking components, this tool guarantees a fit tailored to the Xiaomi Mi 15 Ultra middle layer, supporting detailed and effective results. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
Reliability You Can Trust
The Amaoe M15U-012 stencil stands out as a dependable, original accessory for repair professionals, hobbyists, and advanced users. Elevate your repair experience with a product specifically designed to maintain device integrity while ensuring safe and efficient work. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
The Amaoe M15U-012 is a specialized, high-precision middle-layer reballing stencil designed specifically for the Xiaomi Mi 15 Ultra. As mobile architecture becomes increasingly dense, particularly with “sandwich” PCB designs, having a stencil tailored to the exact pitch and alignment of the interposer is critical for successful board-level repairs. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
Below is a detailed breakdown of the specifications, features, and technical nuances of this tool. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
Technical Specifications: Amaoe M15U-012
| Feature | Specification Details |
| Model Number | M15U-012 |
| Brand | Amaoe (Authentic/Original) |
| Compatibility | Xiaomi Mi 15 Ultra (Middle Layer/Interposer) |
| Material | High-Grade Imported Japanese Steel |
| Stencil Thickness | 0.12mm (Standardized for optimal paste volume) |
| Hole Type | Square Hole / Rounded Corner (Anti-stick design) |
| Process | High-precision Laser Cutting & CNC Finishing |
| Heat Resistance | High (Deformation-resistant under direct hot air) |
| Alignment Pins | Integrated positioning for middle-frame logic board |
| Application | BGA Reballing, PCB Sandwich separation repair |
Key Features & Design Philosophy
The Amaoe M15U-012 isn’t just a piece of metal; it is engineered to handle the specific thermal and physical challenges of the Xiaomi Mi 15 Ultra’s logic board.
1. The “Square Hole” Advantage
Amaoe utilizes a proprietary laser-cutting technique that creates square holes with slightly chamfered or rounded internal corners. This design solves the “solder ball sticking” issue. When you lift the stencil after applying heat, the solder balls stay firmly on the PCB pads rather than being pulled up by the stencil. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
2. Thickness Calibration
At 0.12mm, the stencil is thin enough to allow for precise heat transfer but thick enough to ensure the resulting solder balls are of uniform height. In middle-layer reballing, if one ball is 0.01mm shorter than the rest, it can lead to an “open circuit” once the two boards are sandwiched back together. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
3. Material Integrity
The stencil is manufactured using imported steel that maintains its flat profile even when subjected to temperatures exceeding 300°C. Cheaper stencils often “bulge” or warp when heated, which causes solder paste to bleed between pads, leading to catastrophic shorts. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
Repair Context: Why This Stencil Matters
The Xiaomi Mi 15 Ultra uses a stacked PCB (Printed Circuit Board) design. This means the motherboard is actually two separate boards joined by a middle “interposer” ring.
Common reasons for needing the M15U-012 include:
-
Drop Damage: Impact can crack the solder joints between the two layers, leading to Wi-Fi, Baseband, or Camera failures.
-
Water Damage: Corrosion often settles in the middle layer, requiring the technician to split the boards, clean them, and re-solder the entire perimeter.
-
CPU/RAM Repair: Since the processor is often shielded or sandwiched, accessing it frequently requires a full split and re-ball of the middle layer.
Professional Usage Tips
To get the most out of the Amaoe M15U-012 and ensure a 100% success rate on the Mi 15 Ultra, follow these professional guidelines:
-
Cleaning is Key: Before placing the stencil, ensure the interposer pads on the Xiaomi logic board are perfectly flat. Use a soldering iron with a “knife” tip and high-quality wick to remove old solder.
-
Solder Paste Selection: Use a medium-temperature solder paste (roughly 183°C) for the middle layer. Using high-temp paste increases the risk of damaging the CPU on the flip side of the board during the joining process. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
-
Heat Management: When heating the stencil, use a circular motion with your hot air station. Do not hold the heat in one spot for more than a few seconds. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
-
Stencil Care: Never scrape the stencil with a sharp metal blade. Use a plastic spatula or a specialized solder paste scraper to avoid scratching the precision-cut holes. Amaoe M15U-012 Middle Layer Reballing Stencil-Original For Xiaomi Mi 15 Ultra
Note: This stencil is designed for the Original Xiaomi Mi 15 Ultra. Ensure your board revision matches the M15U-012 layout, as mid-cycle hardware refreshes can sometimes alter pad positioning.
Summary
The Amaoe M15U-012 is the gold standard for technicians performing “Motherboard Surgery” on Xiaomi’s flagship devices. Its combination of heat resistance, anti-stick hole geometry, and perfect 0.12mm thickness makes it an essential tool for high-end mobile repair shops.
