AMAOE MAC-2 STENCIL-Original
AMAOE MAC-2 STENCIL-Original
| Specification Category | Detail / Description |
|---|---|

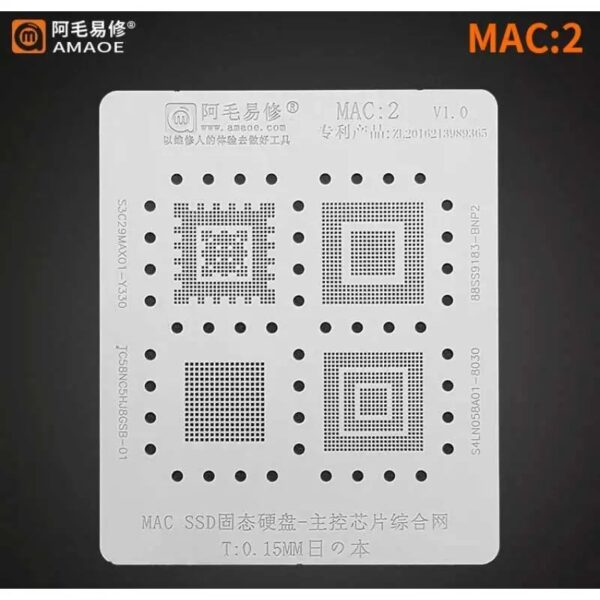

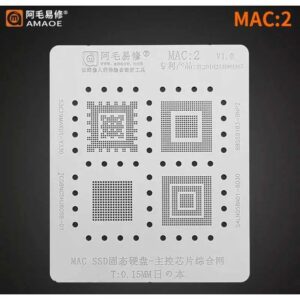

| Product Name | AMAOE MAC-2 STENCIL — Original |
| Model / SKU | MAC-2 / MAC2 |
| Brand | AMAOE |
| Primary Function | BGA Reballing & Solder Paste Application Stencil |
| Intended Use | Precision solder paste deposition on BGA/IC pads, reballing of SSD chips, CPUs, power ICs and related surface-mount components during repair workflows. |
| Compatible Boards / Components | MacBook logic boards, SSD master controllers, NAND/IC power chips, and similarly sized BGA/IC patterns (varies by specific MAC-2 aperture layout). |
| Stencil Type | Square pattern precision BGA stencil (steel mesh / etched) |
| Material | High-quality stainless steel (etched for precise aperture formation) — durable under repeated use, resistant to heat and cleaning solvents. |
| Thickness | ~0.15 mm (typical for MAC-2 versions) — balanced for both paste volume control and stencil rigidity. |
| Pattern Geometry | Square aperture holes to match pad arrays on various SSD/IC/BGA components; helps reduce bridging and ensures even solder ball/paste application. |
| Aperture Precision | High quality laser/chemical etched openings; micron-level tolerance for reliable solder placement |
| Edge Finish | Deburred and polished edges to minimize burrs and ensure smooth paste release. |
| Flatness / Planarity | Manufactured flat to provide even contact with board surfaces; ideal for precision solder deposition. |
| Weight | Lightweight metal stencil — minimal added mass (typical portable stencil scale). |
| Color / Appearance | Metallic silver (natural stainless finish). |
| Reusability | Reusable with proper cleaning and handling — a cost-effective tool for repeated professional use. |
| Cleaning Methods | • Isopropyl alcohol (IPA) solution • Soft brass or nylon brush • Ultrasonic cleaner (if available) — for heavy flux/residue removal. |
| Handling Tips | • Avoid touching aperture area with bare fingers — oil contamination can affect solder adhesion. • Store flat to prevent warping. • Lift stencil straight up during removal to avoid smearing. |
| Typical Reflow / Paste Notes | Stencil is used at room temperature for paste deposition; final soldering follows solder paste reflow profile (e.g., SAC305, Pb-free profiles). |
| Packaging | Protective sleeve / crash-proof envelope or blister pack (varies by seller). |
| Net Quantity | Pack of 1 stencil (standard package). |
| Warranty | Seller dependent — typically no manufacturer warranty on consumable stencil tools. |
| Country of Origin | China (manufactured to Amaoe tooling and quality control standards). |
| Certifications / Compliance | Lead-free compatible with RoHS-compliant solder pastes; standard repair tool category compliance. |
| Typical Dimensions | Approx. ~80 × ~80 mm (varies slightly by batch and seller notes). |
| Pattern Versatility | Designed to support multiple common SSD/IC BGA patterns used in laptop repair (e.g., main controllers, flash ICs, bridge ICs). |
| Professional Suitability | Suitable for technicians, professional repair shops, electronics refurbishers, and multi-device repair workflows. |
| Recommended Accessories | Alignment jig, magnetic frame/socket holder, solder balls/paste, flux applicators, fine squeegees. |
| Typical Cost Range | Budget-friendly professional tool, retail price varies by retailer and packaging options. |
| Cleaning & Maintenance Frequency | Clean after each use for optimal aperture performance and longevity. |
| Storage Guidelines | • Store flat in anti-static sleeve • Avoid humidity and corrosive environments • Avoid stacking heavy objects on stencil. |
| Handling Precautions | • Use gloves or anti-static tweezers • Avoid bending stencil edges • Use proper alignment tools to ensure accurate pad match. |
🛠 Product Overview & Practical Use
📌 Purpose and Application
The AMAOE MAC-2 STENCIL is a precision metal template used when repairing delicate circuit boards that contain surface-mount BGA (Ball Grid Array) and IC components. It helps technicians deposit solder paste or solder balls in exact positions on chip pads or PCB pads, which is essential for:
-
Reballing BGA-type chips (like SSD controllers, NAND/flash ICs)
-
Precise solder paste application before reflow AMAOE MAC-2 STENCIL-Original
-
Repairing motherboards and SSD logic boards AMAOE MAC-2 STENCIL-Original
-
Achieving consistent solder quality with limited bridging or excess paste AMAOE MAC-2 STENCIL-Original
This tool is critical in chip-level motherboard repair, especially for devices like MacBooks and other laptops where fine-pitch BGA rework is common.
📌 Material & Durability
-
Stainless steel construction ensures resistance to wear and heat during soldering and cleaning cycles.
-
Etched apertures maintain precise hole geometry to match pad layouts. AMAOE MAC-2 STENCIL-Original
-
Thickness (~0.15 mm) strikes a balance between rigidity (prevents flex distortion) and sufficient volume control for paste application.
📌 Alignment & Precision
Accurate alignment with the board is key to successful reballing. While the stencil itself provides the patterned template, using it with an alignment jig or frame improves results, especially for high-pitch components. AMAOE MAC-2 STENCIL-Original
📌 Cleaning & Reuse
After applying solder paste or balls and completing the reflow process:
-
Clean residues immediately with IPA or a dedicated stencil cleaner. AMAOE MAC-2 STENCIL-Original
-
Avoid hard metal scraping as this can distort the aperture edges. AMAOE MAC-2 STENCIL-Original
-
With proper care, the stencil can be reused many times without performance loss. AMAOE MAC-2 STENCIL-Original
